AR05.20-P-7201QC Remove/Install Camshafts



AR05.20-P-7201QC Remove/install camshafts
- Camshaft adjuster for intake camshafts

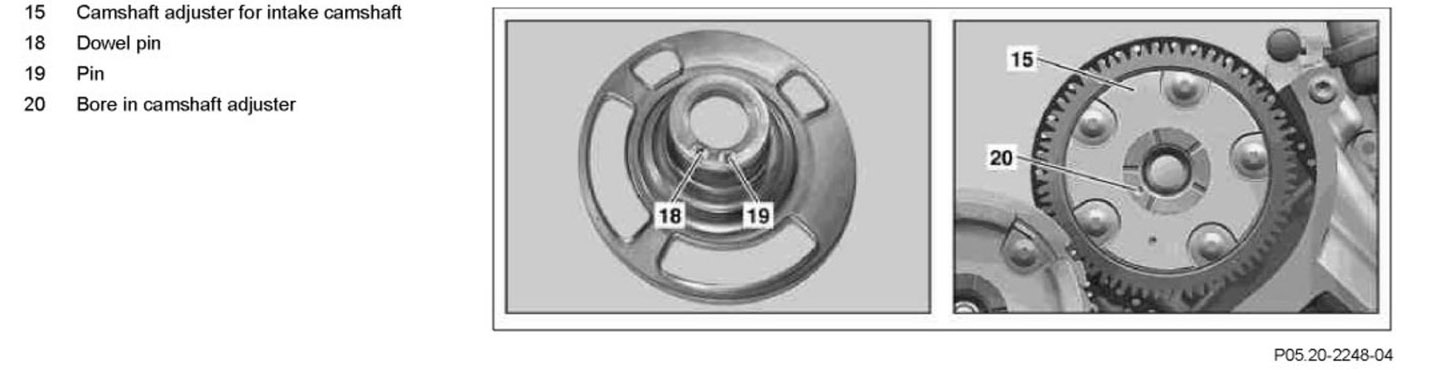

Component Identification:




Component Identification:

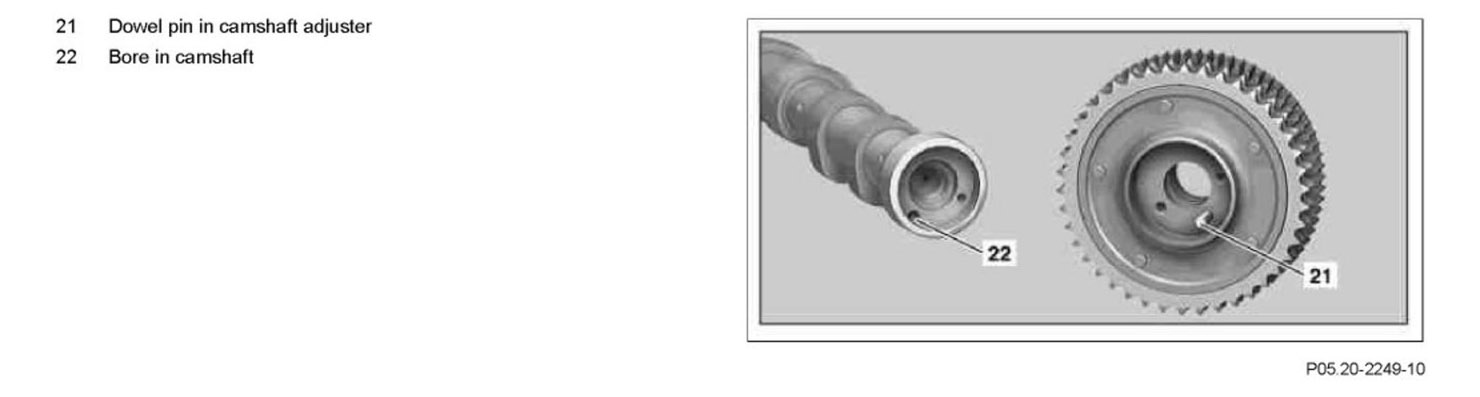

Component Identification:

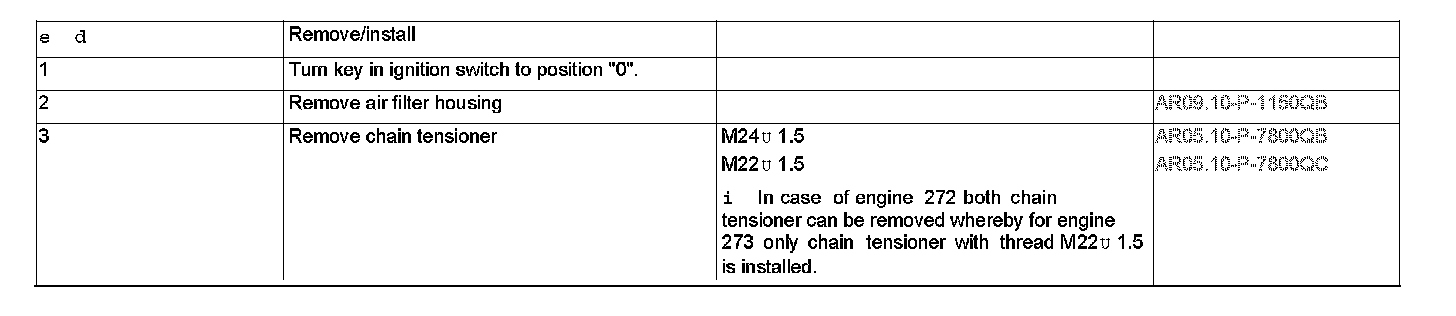

Steps 1 - 3:

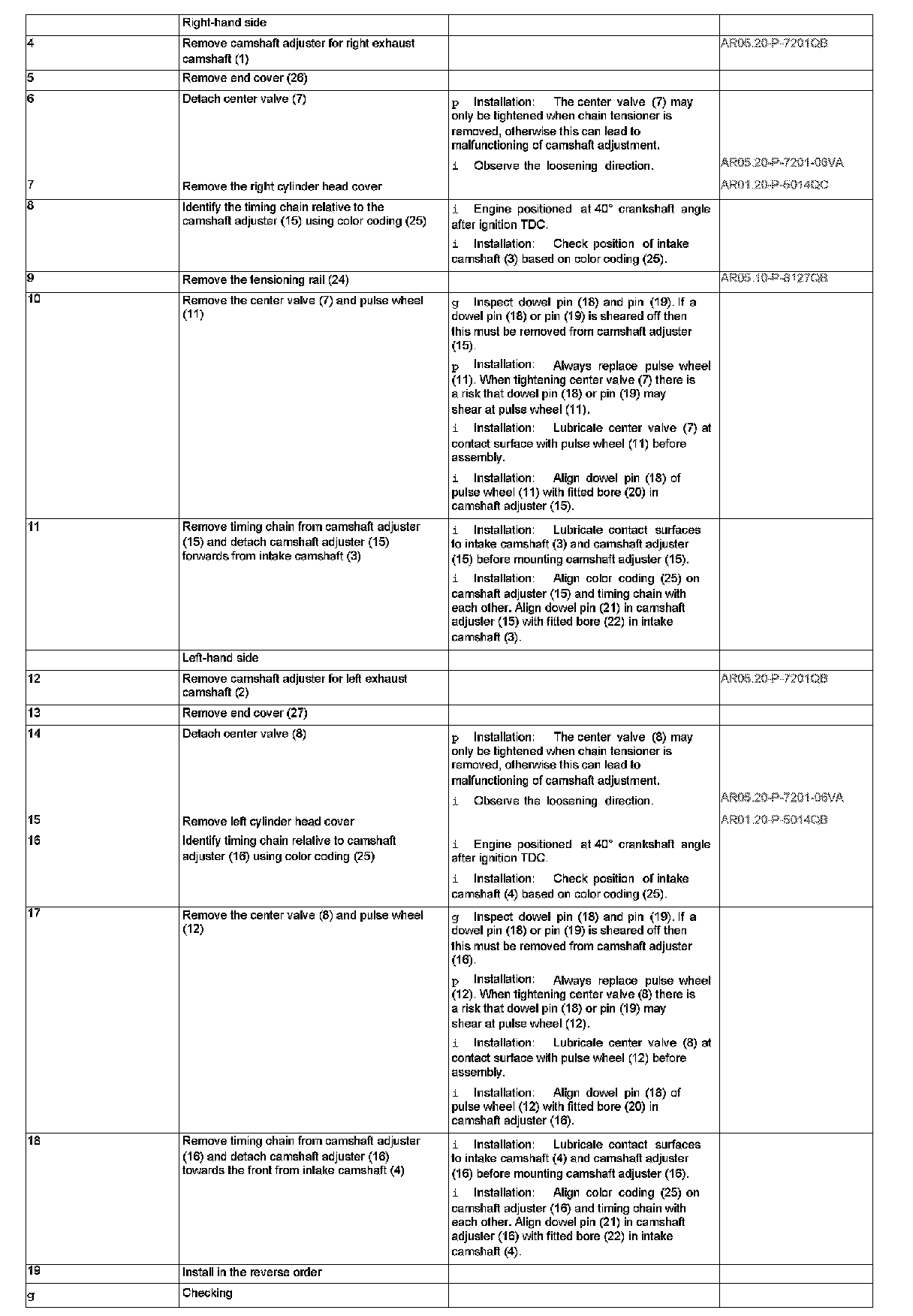

Steps 4 - 19:

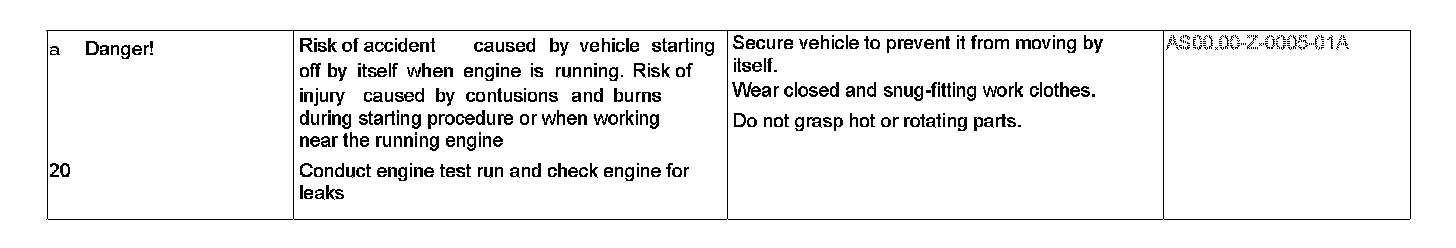

Step 20:
