Oxygen Sensor: Service and Repair
AR07.52-P-5303QB Remove/Install Heated O2 Sensor

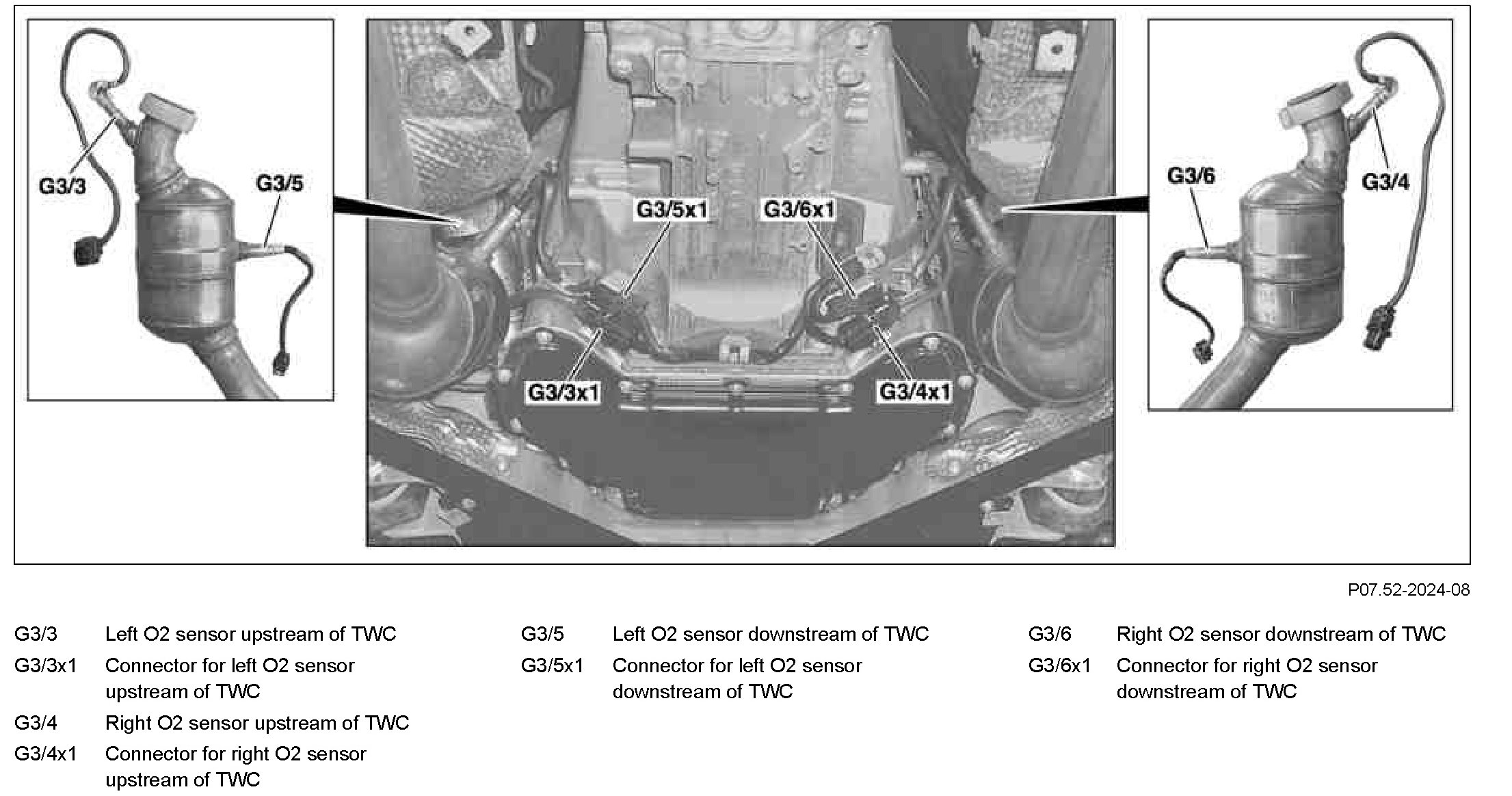

Component Identification:

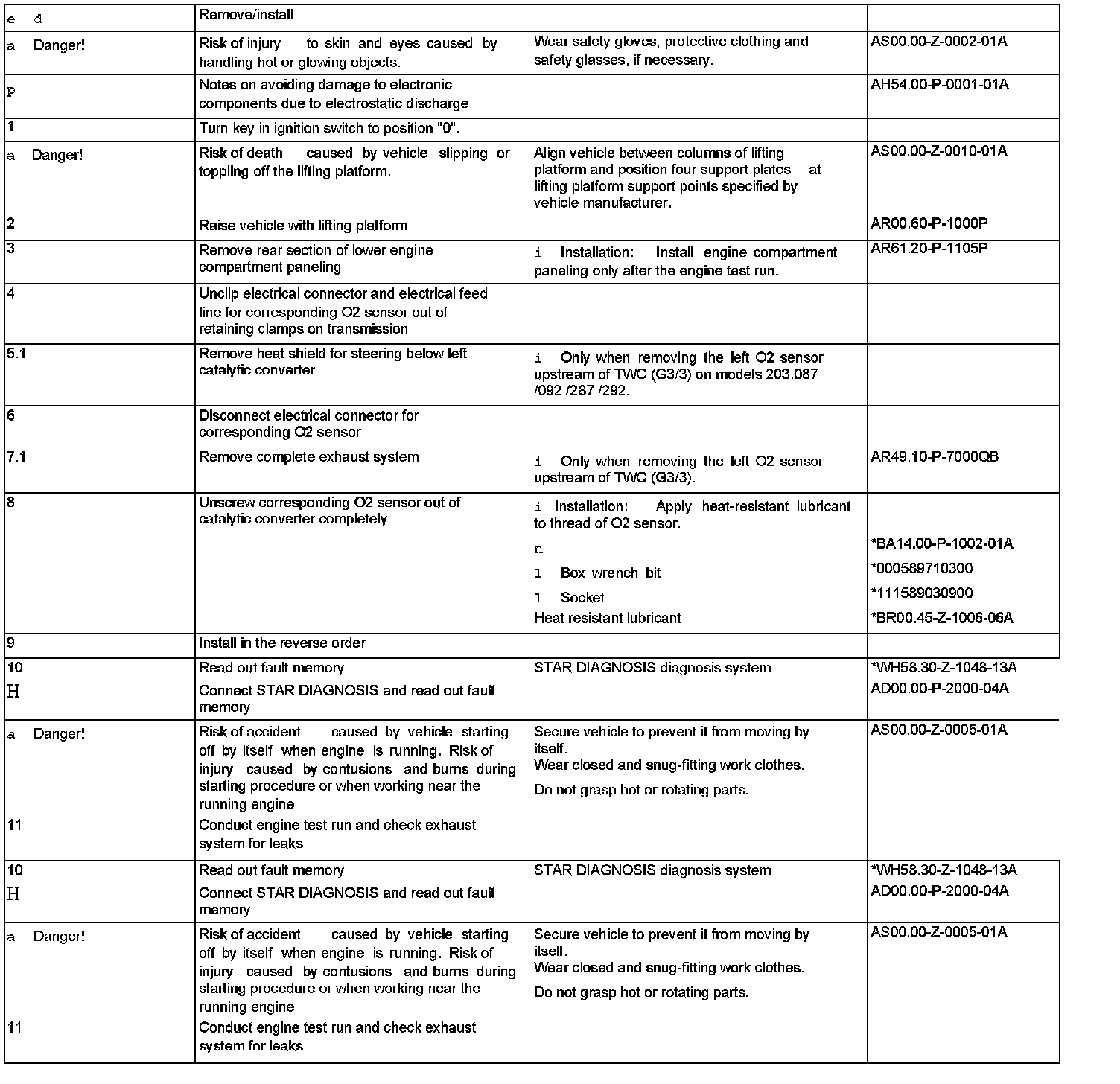

Steps 1 - 11:

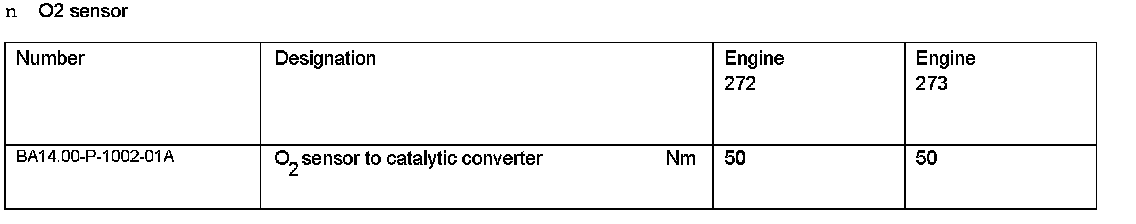

O2 Sensor:
Special Tools:

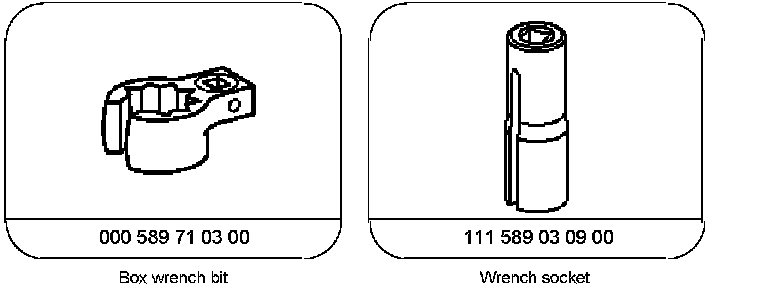

Commercially Available Tools:

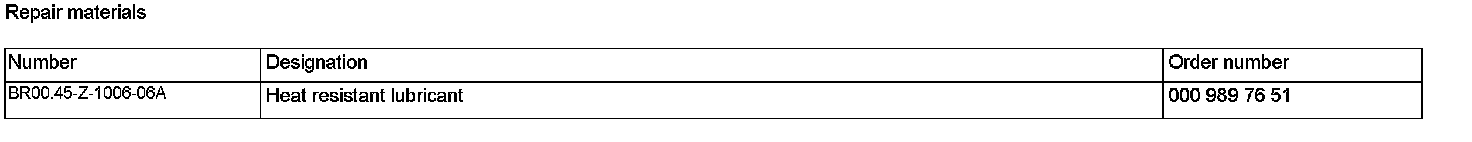

Repair Materials:
