Engine Control Module: Service and Repair
AR07.08-P-7008QB Remove/Install Injection System Control Unit

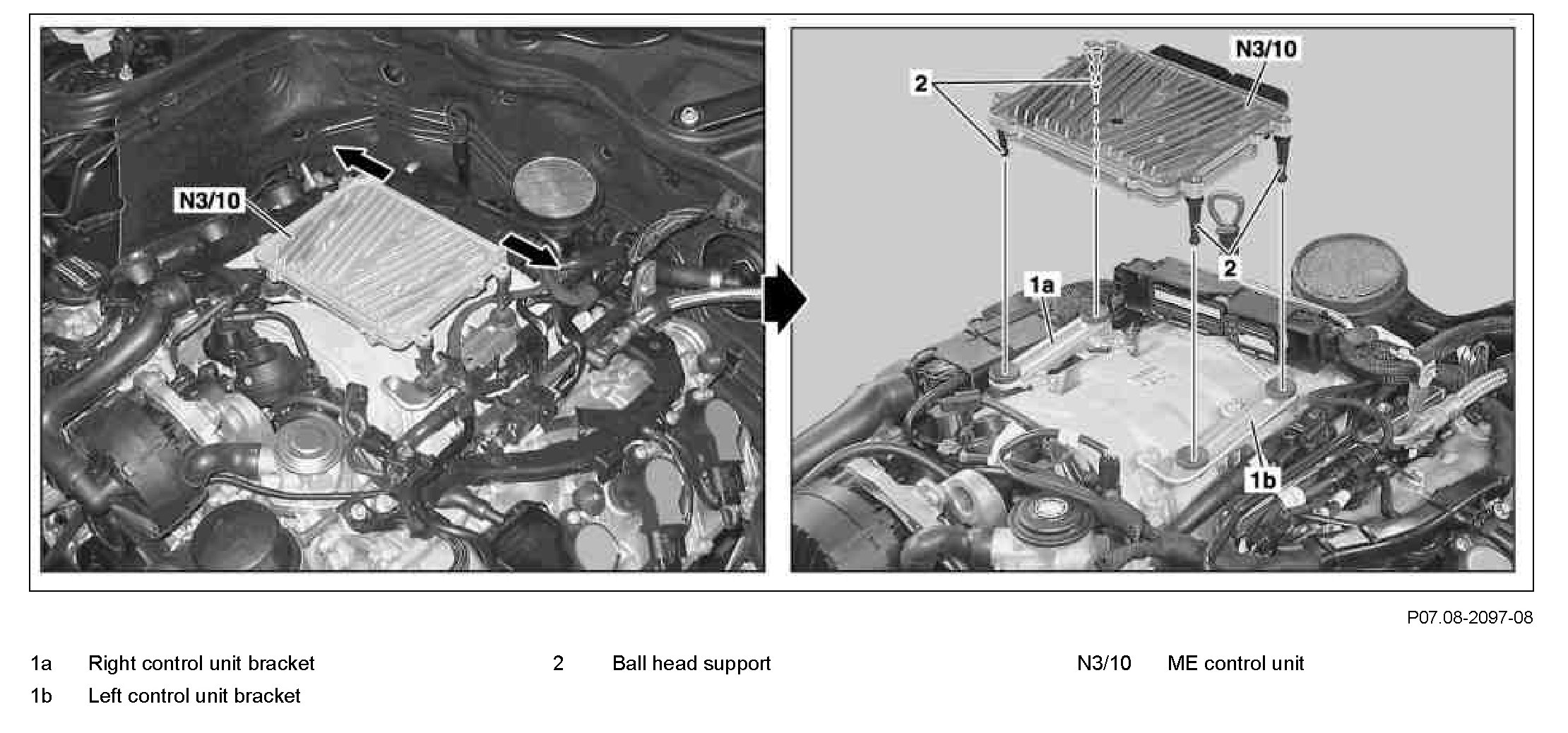

Component Identification:

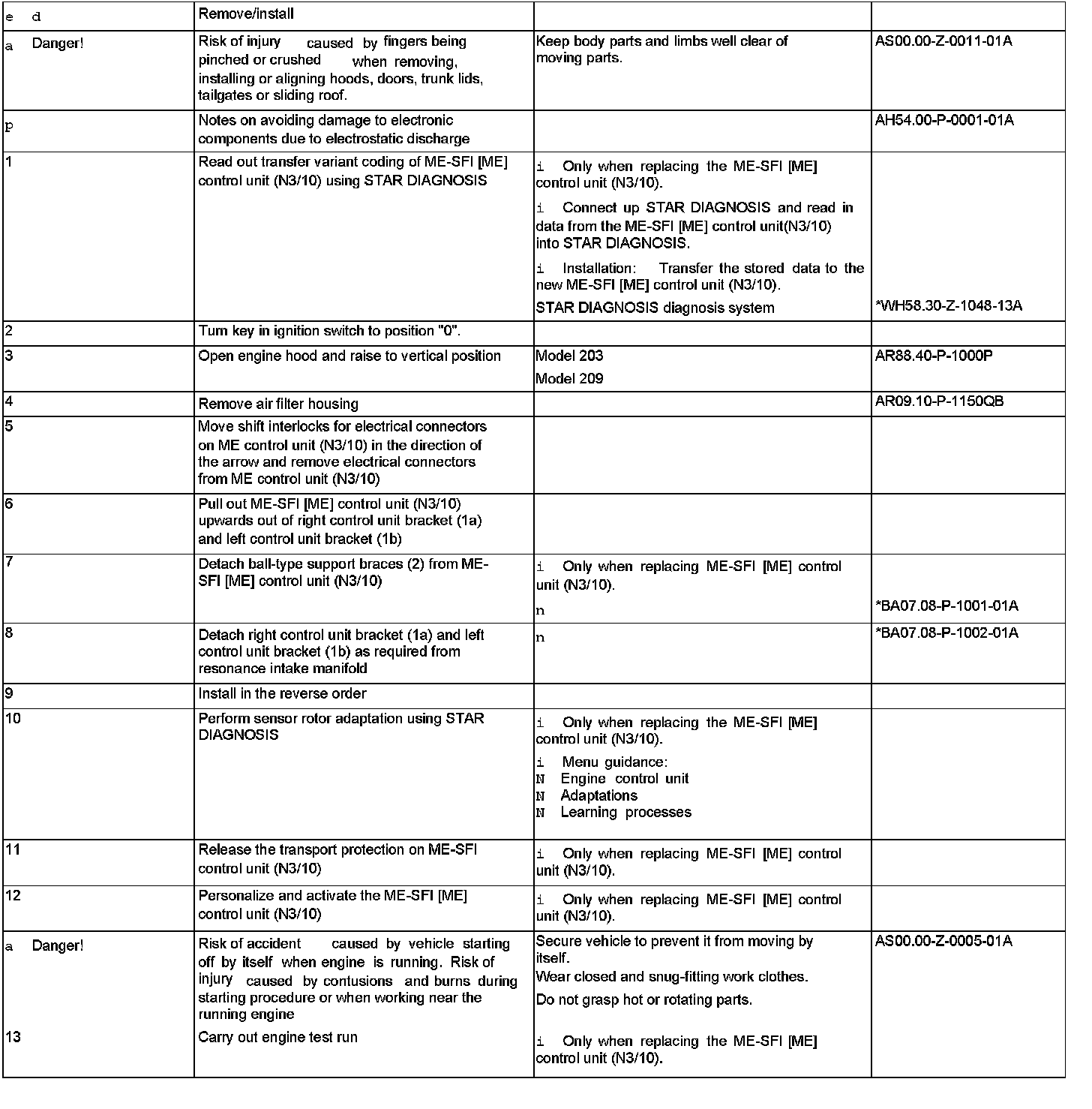

Steps 1 - 13:

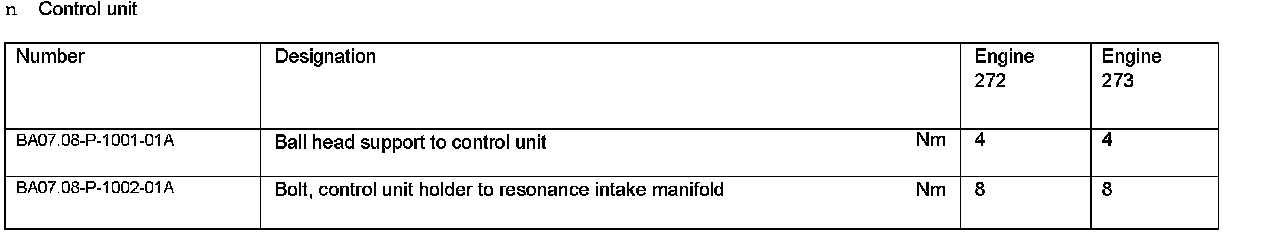

Control Unit:

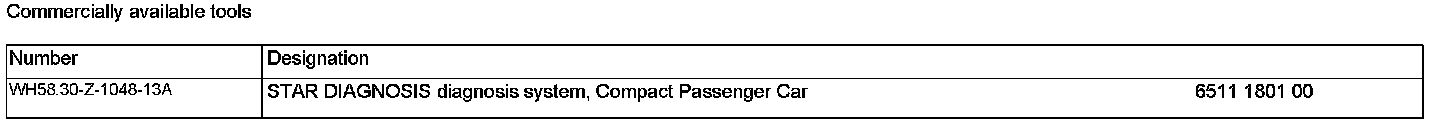

Commercially Available Tools:
