GF00.19-P-0001-02PMU Overall Network (GVN), Networking of Components

GF00.19-P-0001-02PMU Overall Network (GVN), Networking Of Components

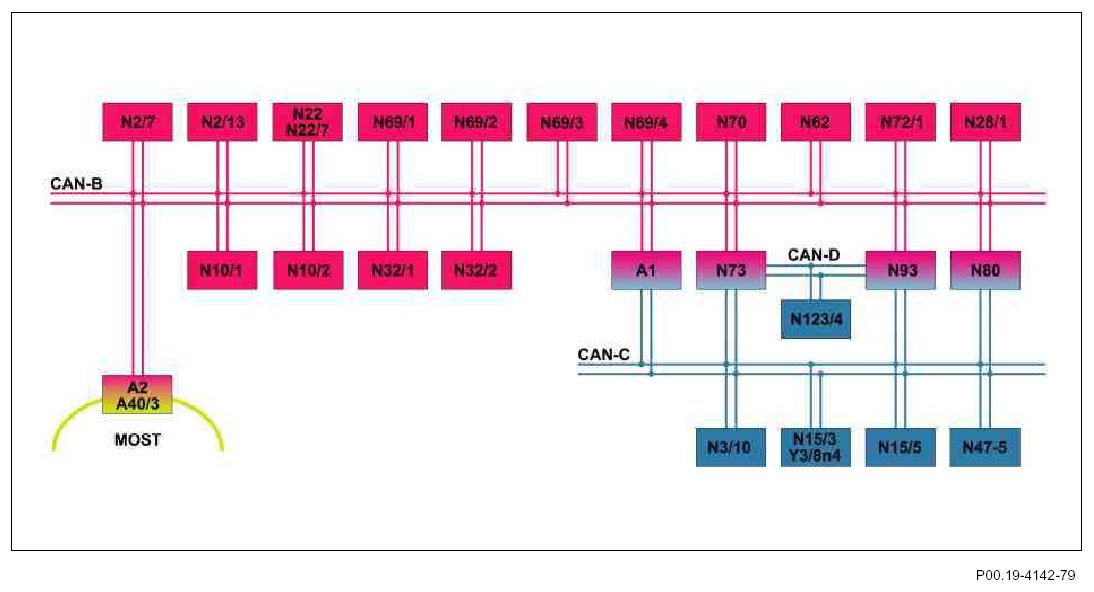

- MODEL 203.0 /2 /7 as of 24.4.04 with CODE (494) USA version up to Model Year 8






A1 Instrument cluster
A2 Radio (without code (530) COMAND APS USA (with navigation system))
A40/3 COMAND operating, display and controller unit (with code (530) COMAND APS USA (with navigation system))
N2/7 Restraint systems control unit
N2/13 WSS (Weight Sensing System) control unit
N3/10 ME control unit
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N15/3 ETC control unit (with transmission 722.6)
N15/5 Electronic selector lever module control unit (with transmission 722)
N22 AAC control and operating unit (without code (581) Comfort automatic air conditioning)
N22/7 Comfort AC control and operating unit (with code (581) Comfort automatic air conditioning)
N28/1 Trailer recognition control unit (with code (550) trailer hitch)
N32/1 Driver-side front seat adjustment control module with memory (with code (275) driver seat, steering column and electrically adjustable outside mirror with memory)
N32/2 Passenger-side front seat adjustment control unit with memory (with code (242) Electrically adjustable front passenger seat with memory)
N47-5 ESP and BAS control unit
N62 PTS control unit (with code (220) Parktronic system (PTS))
N69/1 Door control unit front left
N69/2 Door control unit front right
N69/3 Left rear door control unit (model 203.0/2)
N69/4 Right rear door control unit (model 203.0/2)
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N73 EIS [EZS] control unit
N80 Steering column module
N93 Central gateway control unit (up to 27.7.04)
N123/4 Emergency call system control unit
Y3/8n4 Fully integrated transmission control (VGS) control unit (with transmission 722.9)
CAN-B Controller Area Network bus class B (interior compartment) (CAN-B)
CAN-C Controller Area Network bus, class C (engine compartment) (CAN-C)
CAN-D Controller Area Network bus class D (diagnosis) (CAN-D)
MOST Media Oriented System Transport (MOST)

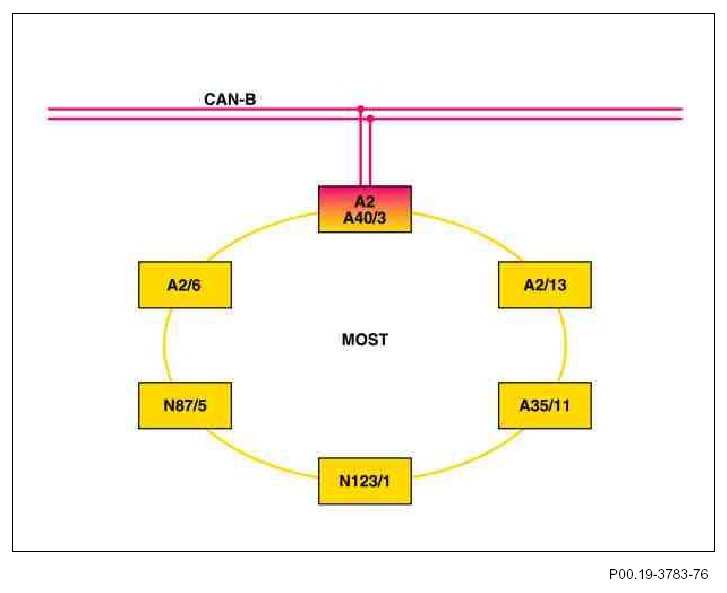

A2 Radio
A2/6 CD player with changer (in glove box) (for code (819) 6-disk CD changer)
A2/13 Sound amplifier (with code (810) Sound system)
A35/11 Voice control system control unit (with code (813) Voice control system (VCS [SBS]))
A40/3 COMAND operating, display and controller unit
N87/5 SDAR control unit (with code (536) SIRIUS satellite radio)
N123/1 UPCI (Universal Portable CTEL Interface) control unit (with code (386) Preinstallation for telephone "Handy", UPCI system)
CAN-B Controller area network bus class B (interior compartment) (CAN B)
MOST Media Oriented System Transport (MOST)
