AR07.51-P-1401QB Remove/Install Throttle Valve Actuator



AR07.51-P-1401QB Remove/Install Throttle Valve Actuator

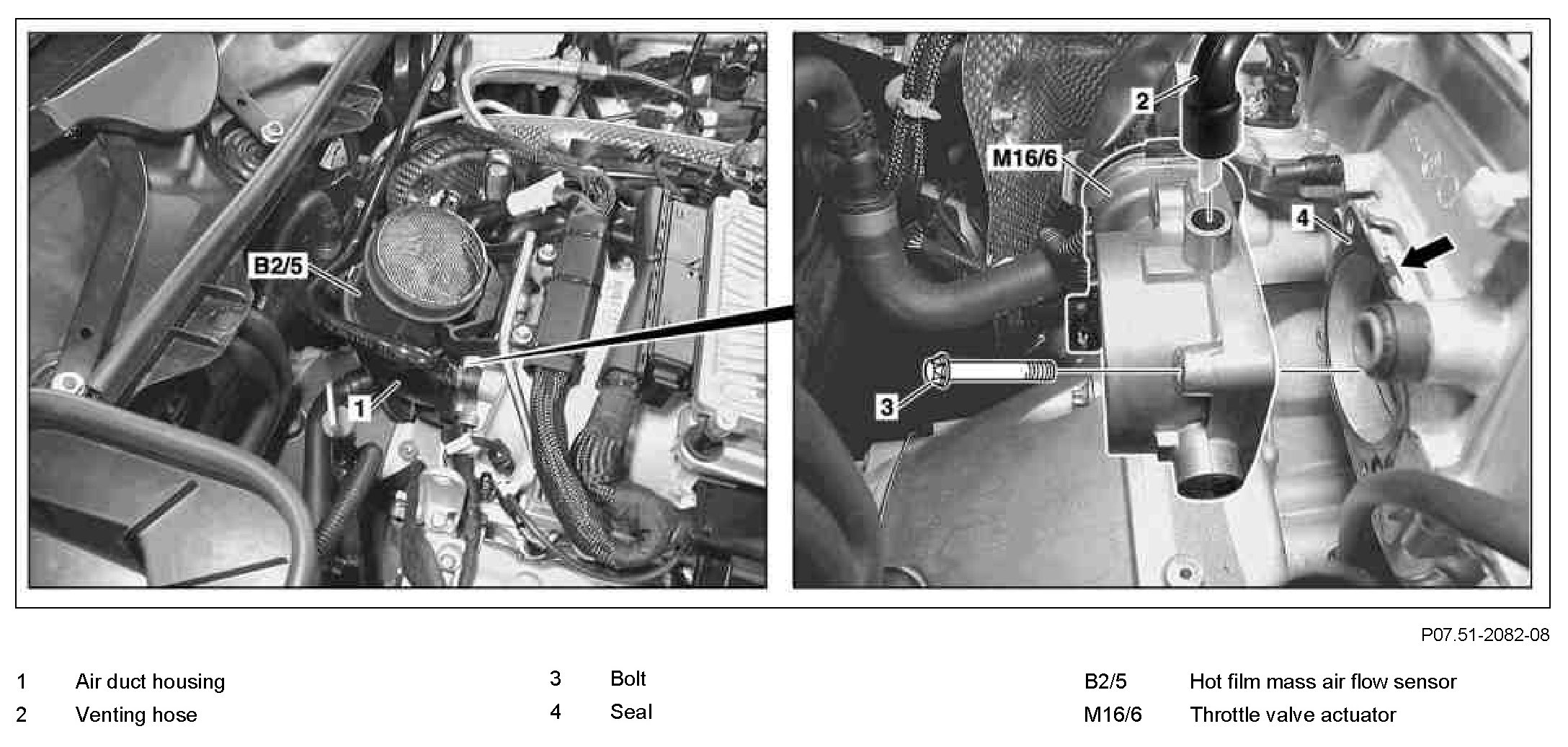

Component Identification:

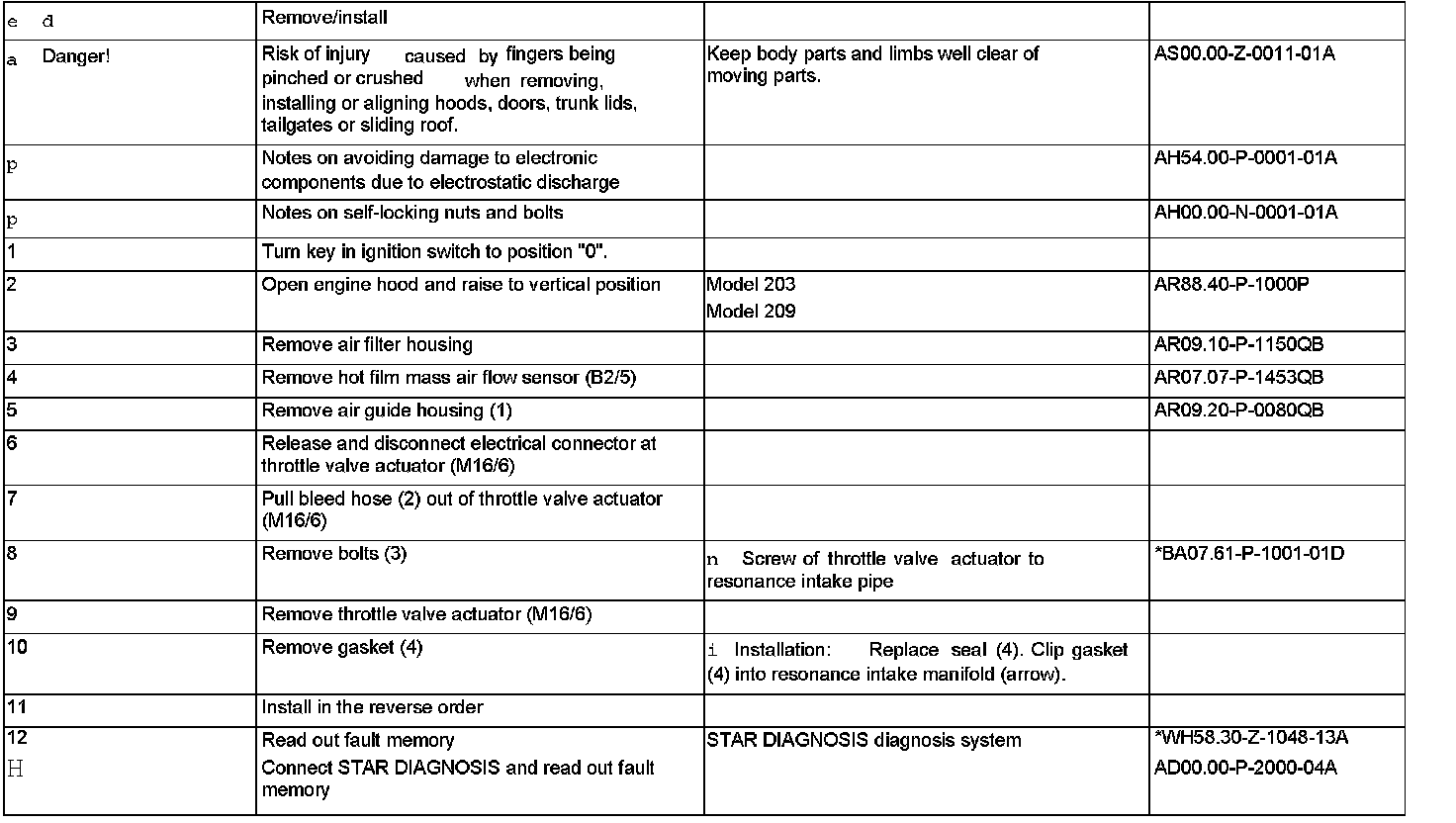

Steps 1 - 12:

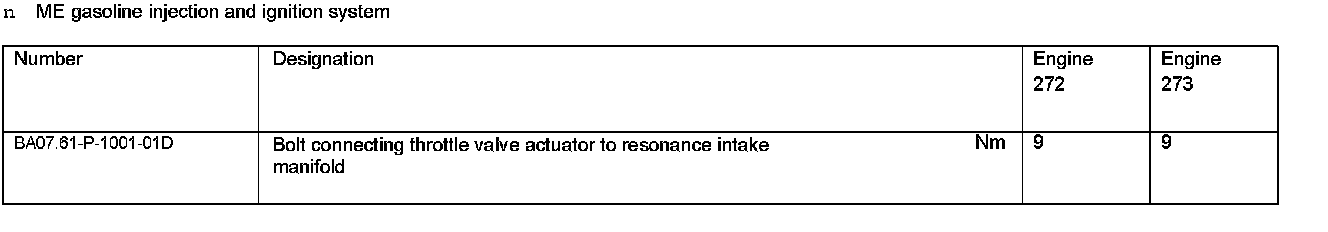

ME Gasoline Injection And Ignition System:

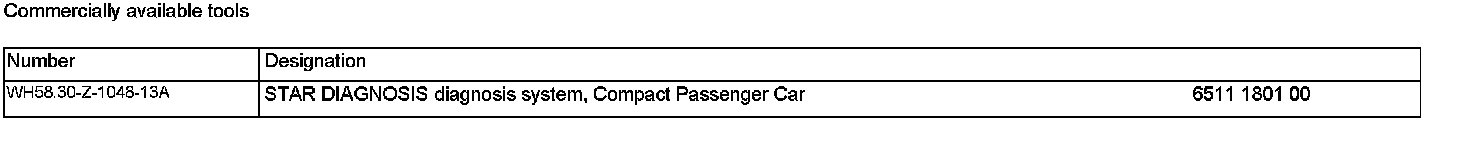

Commercially Available Tools:
