Home >> Mercedes Benz >> 2007 >> C 280 4MATIC (203.092) V6-3.0L (272.941) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Service and Repair >> Removal and Replacement >> AR82.10-P-4730PA Remove/Install Headlamp Unit

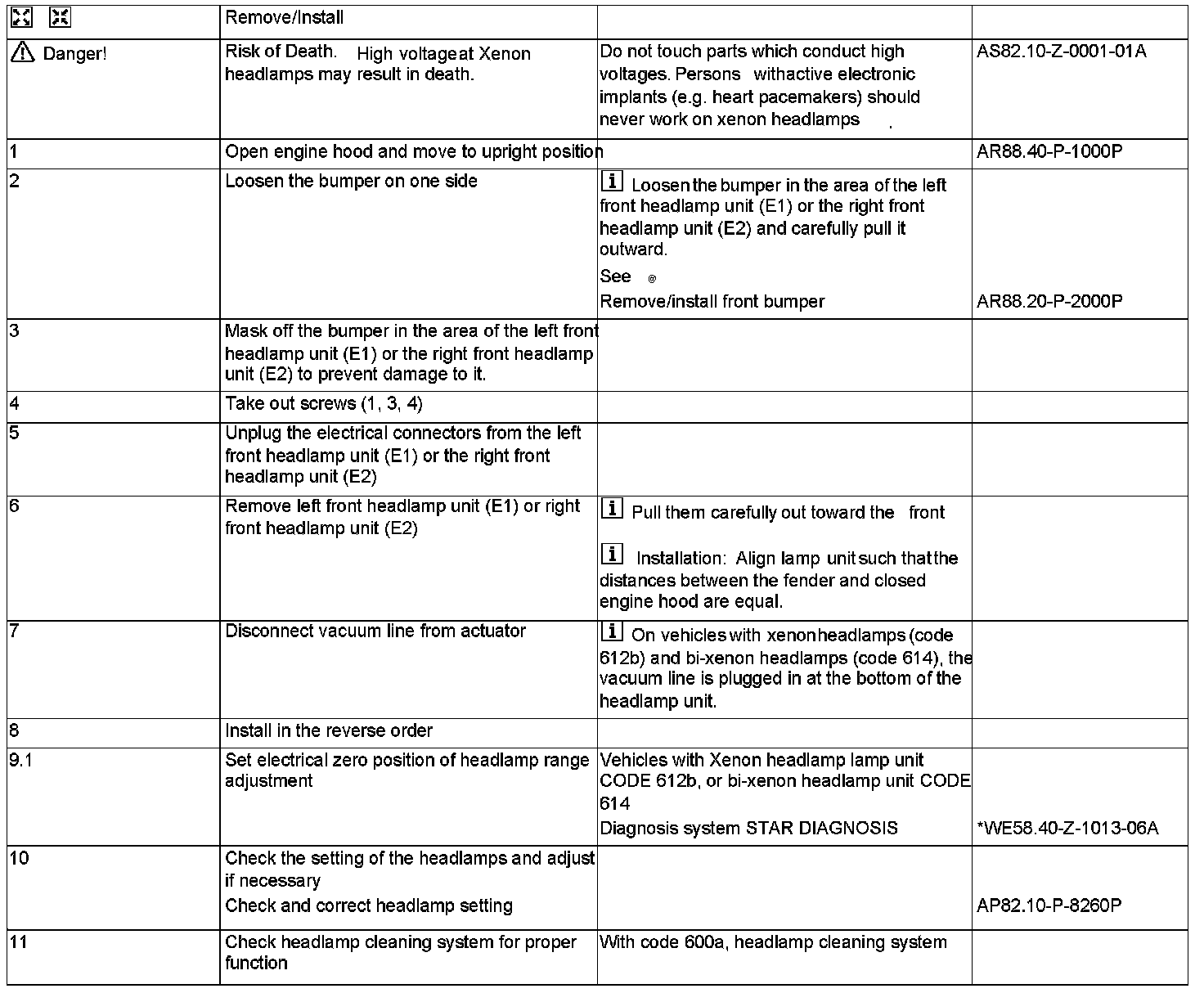

AR82.10-P-4730PA Remove/Install Headlamp Unit



AR82.10-P-4730PA Remove/Install Headlamp Unit
- removal of a lamp unit
