Air Cleaner Housing: Service and Repair



AR09.10-P-1150QB Removing/installing air filter housing

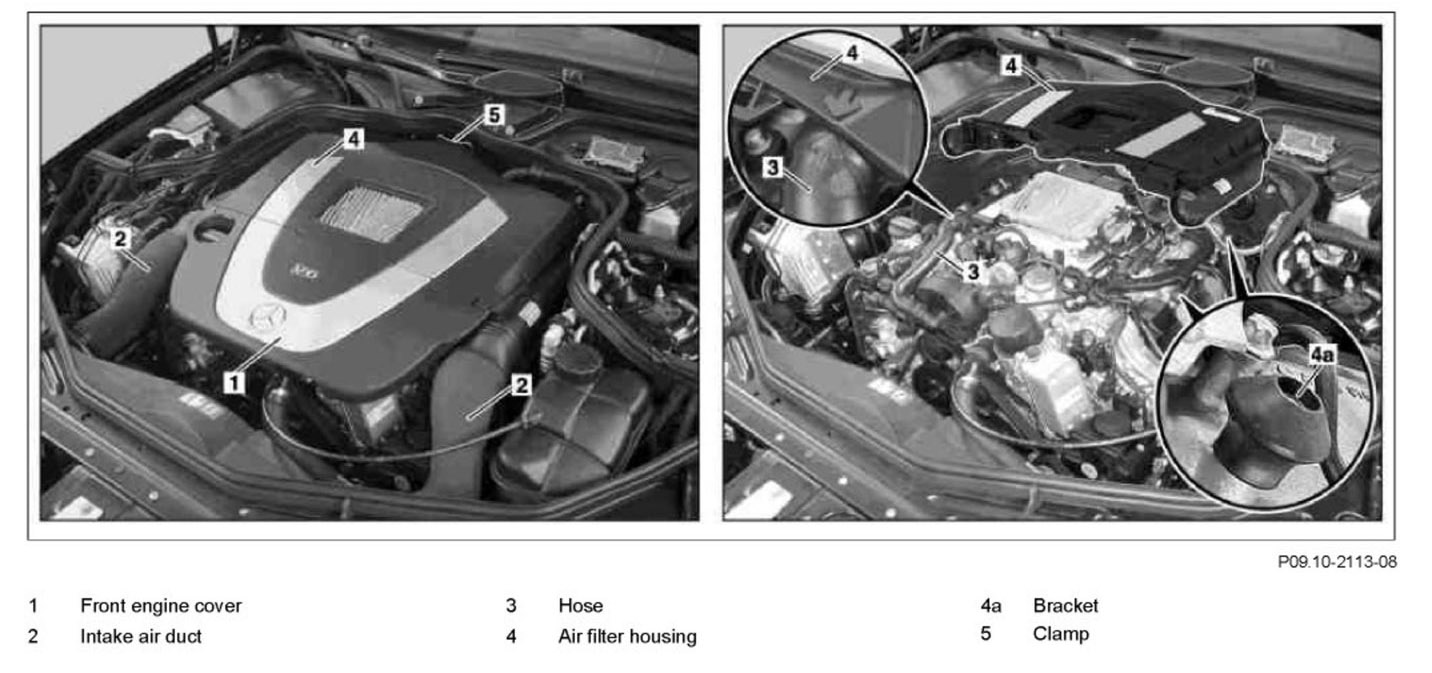

Component Identification:

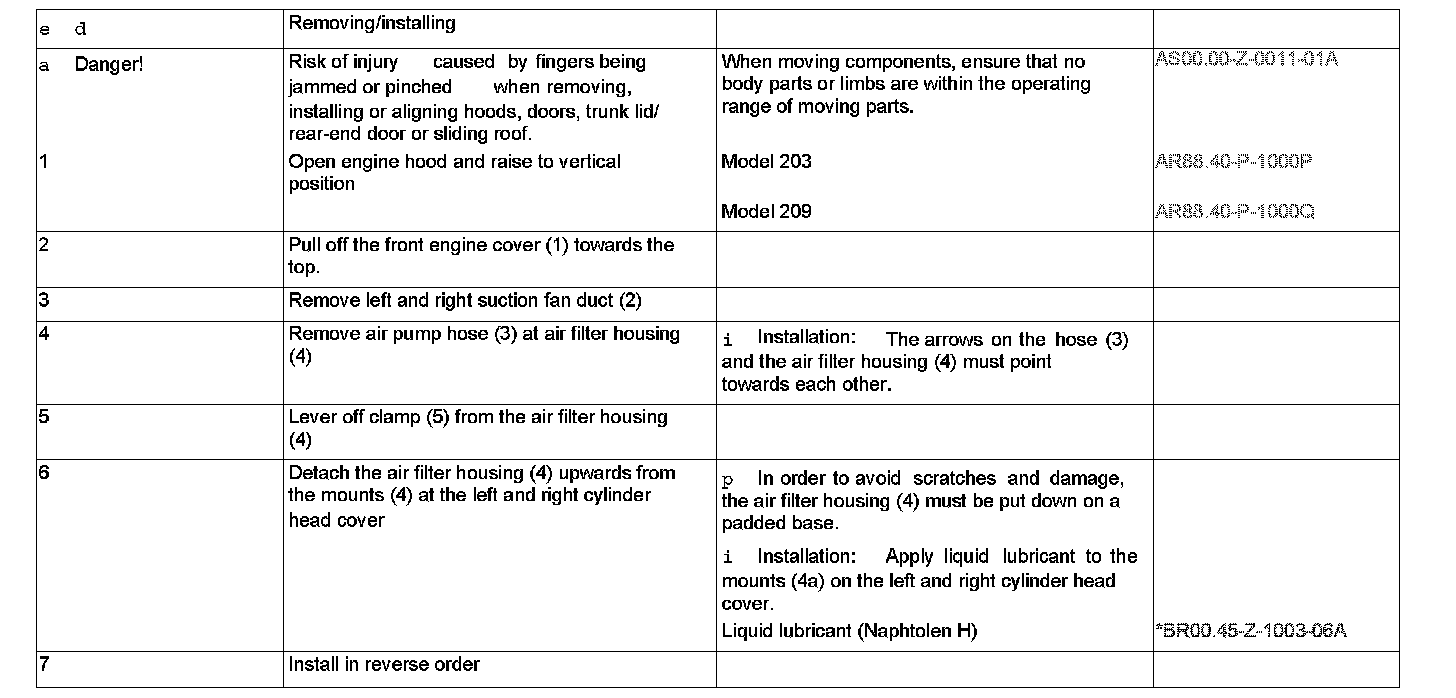

Steps 1 - 7:

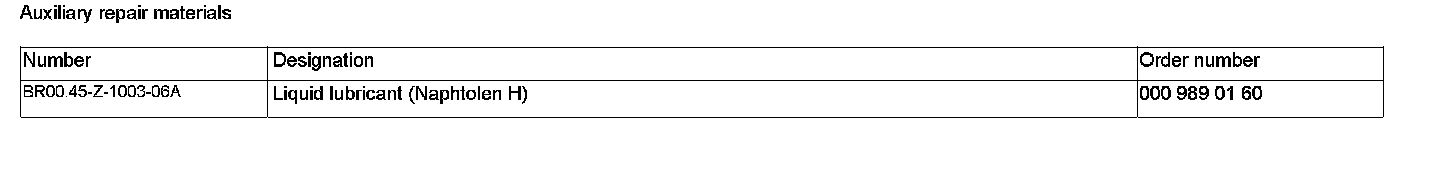

Auxiliary repair materials:
