AR01.40-P-8000QB Remove/Install Timing Case Cover

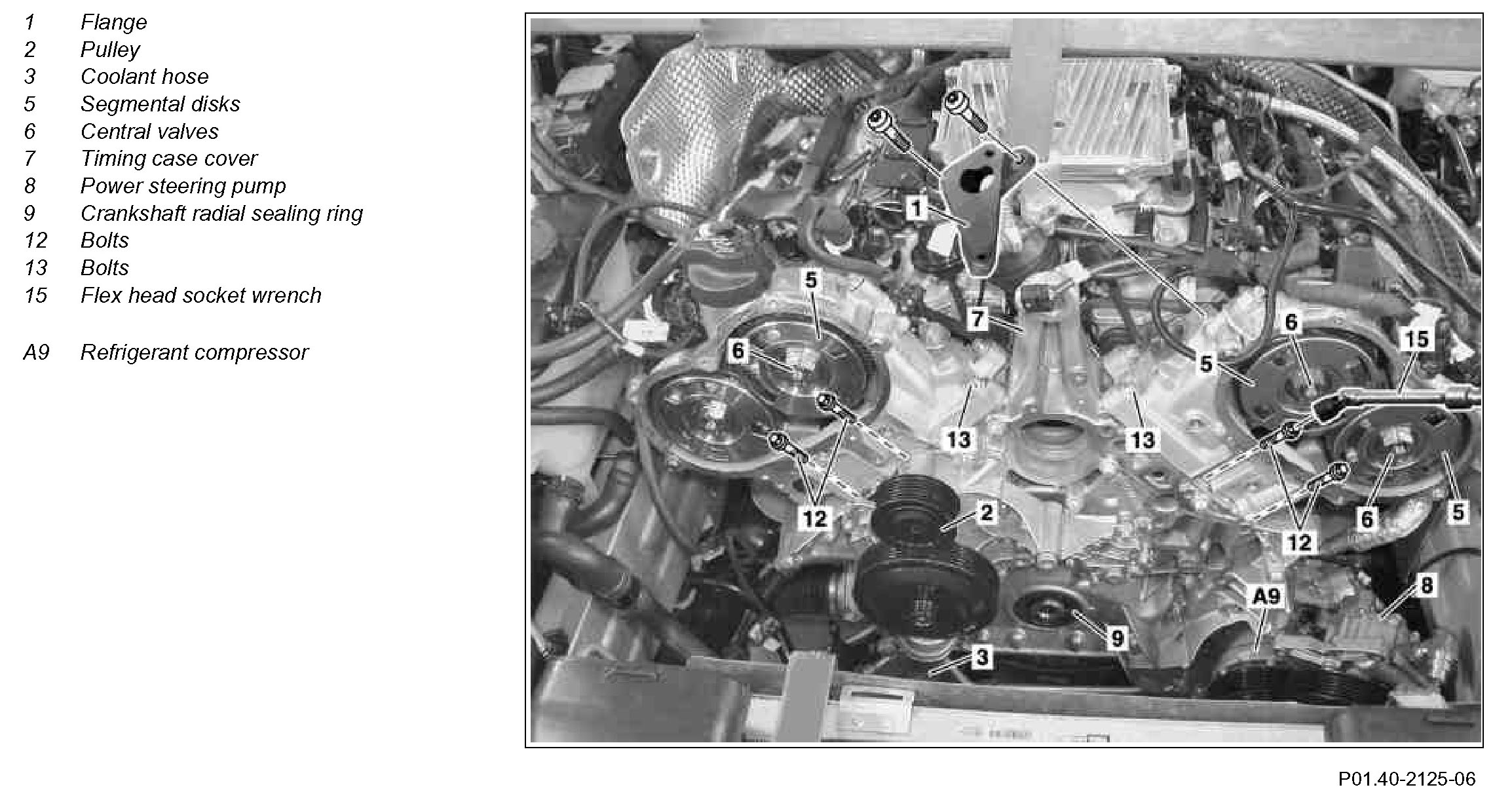

Component Identification:

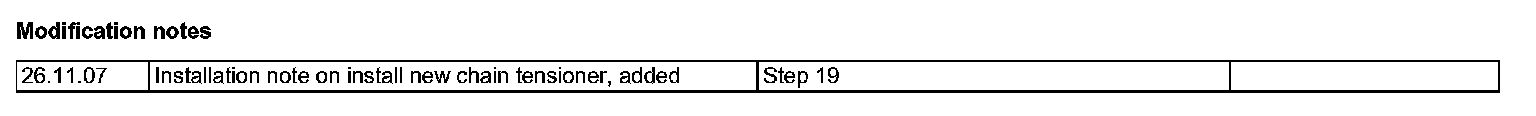

Modification notes:

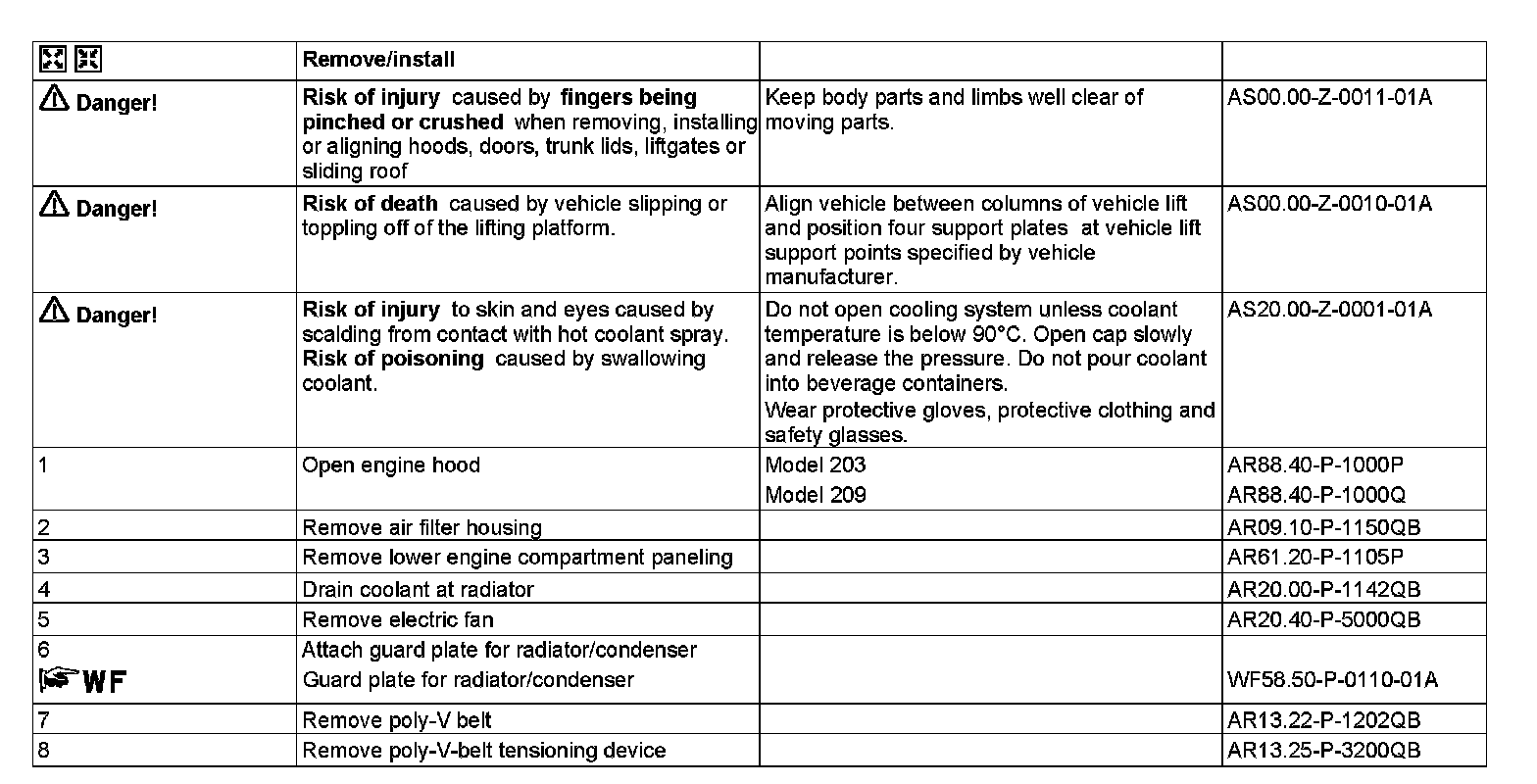

Steps 1-8:

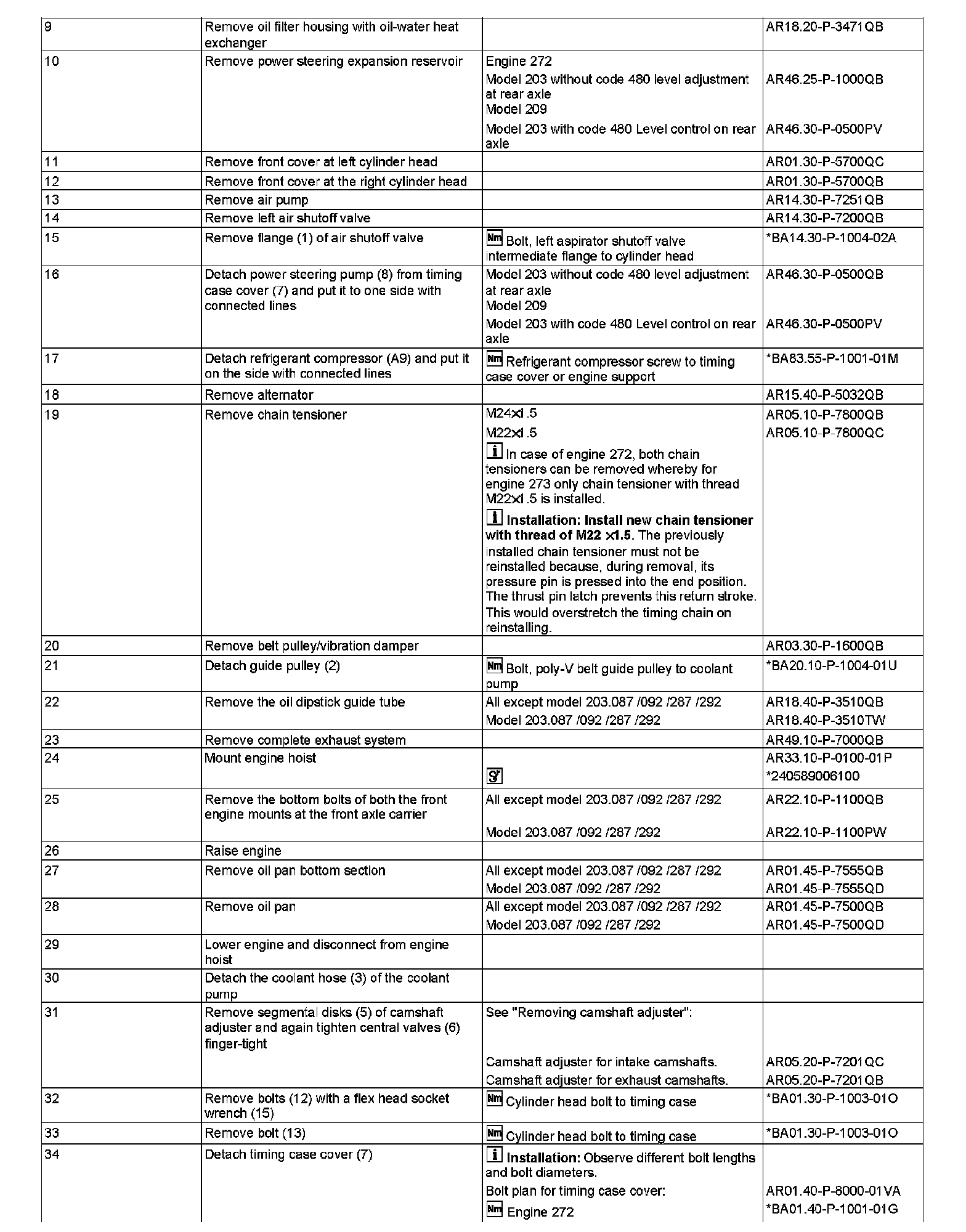

Steps 9-34:

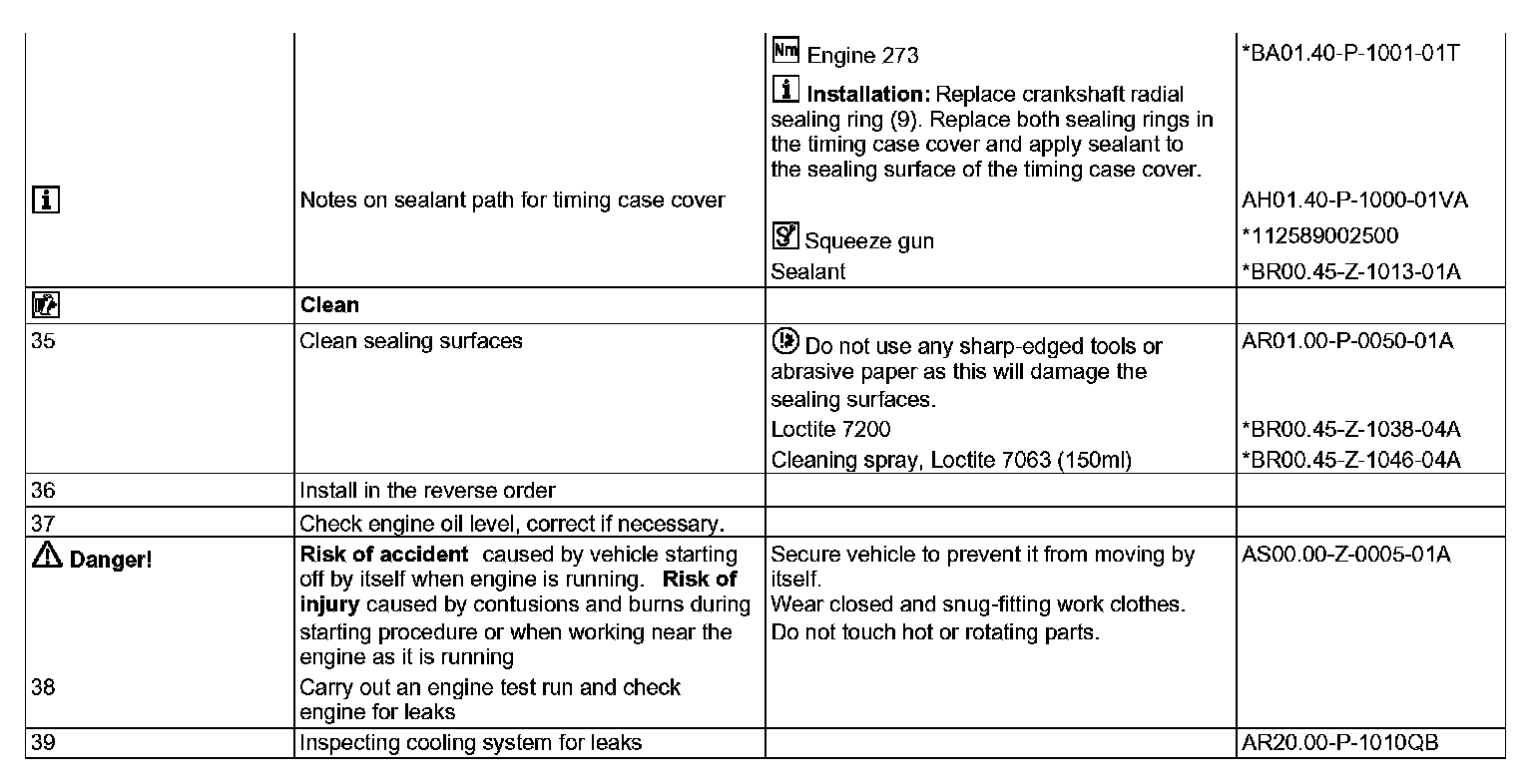

Steps 34 (Continued)-39:

Air shutoff valve:

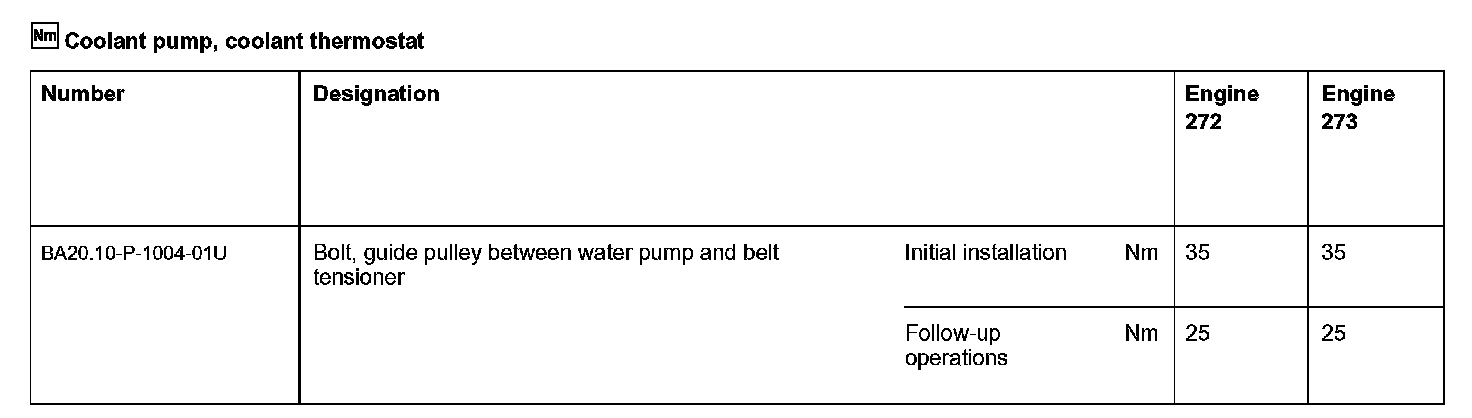

Coolant pump, coolant thermostat:

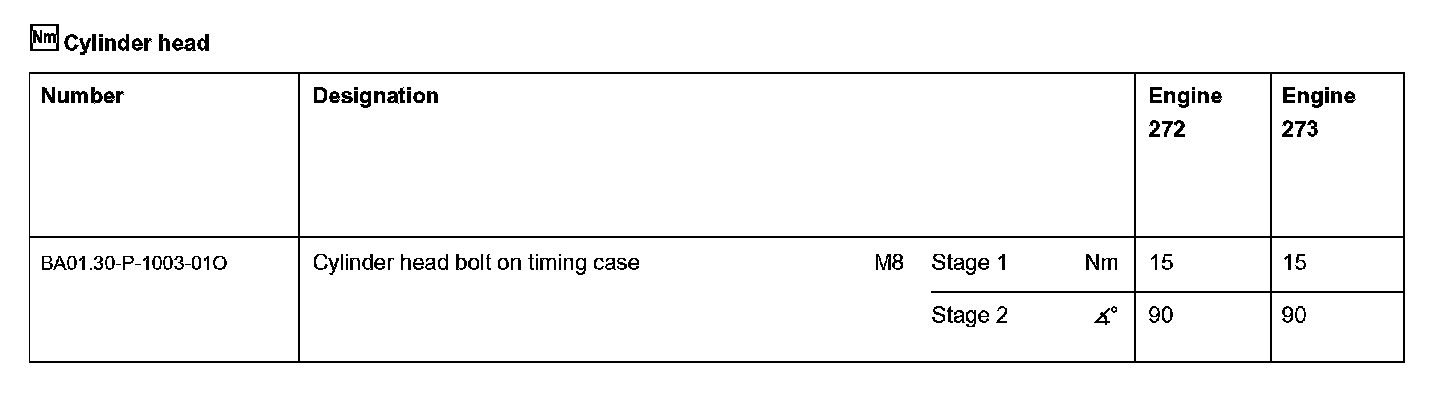

Cylinder head:

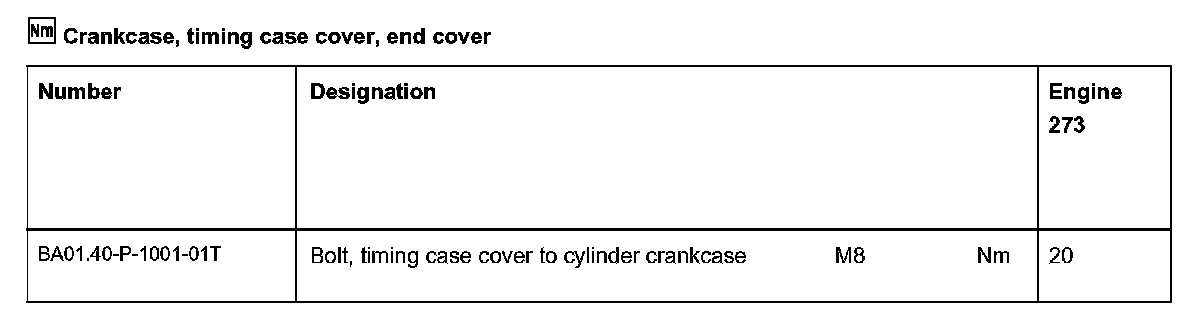

Crankcase, timing case cover, end cover:

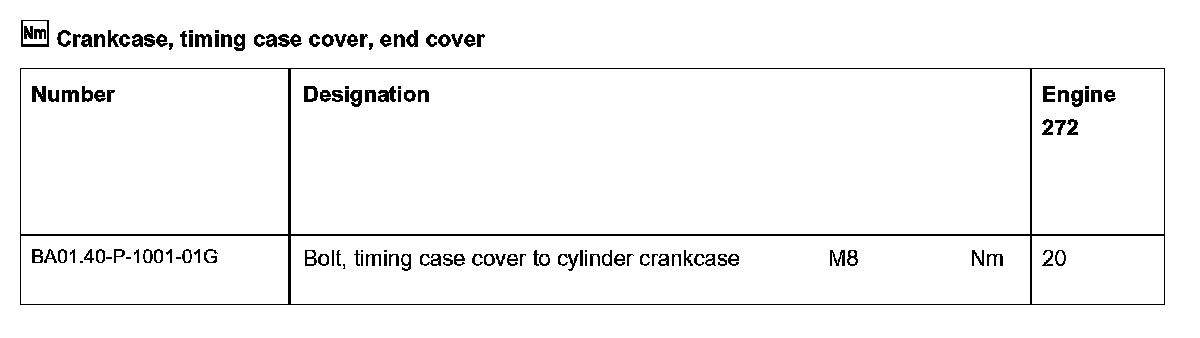

Crankcase, timing case cover, end cover:

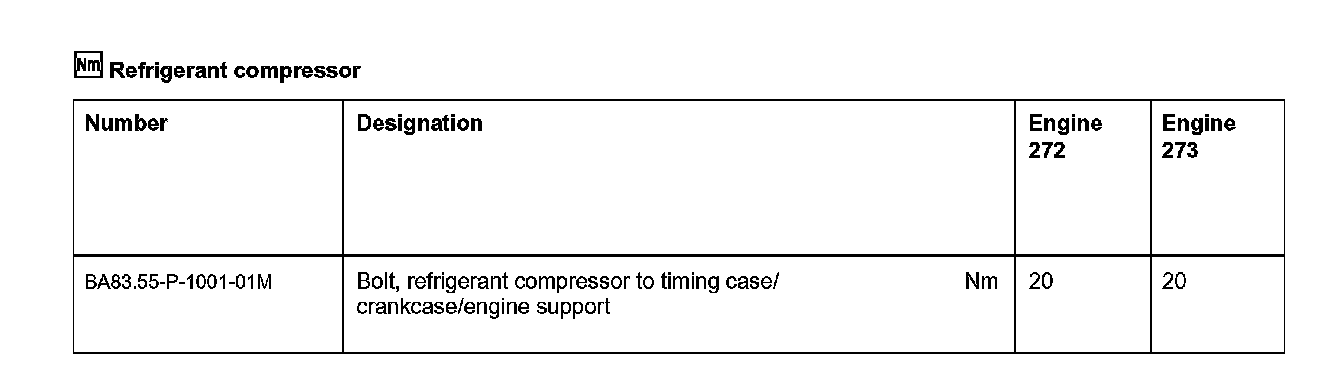

Refrigerant compressor:

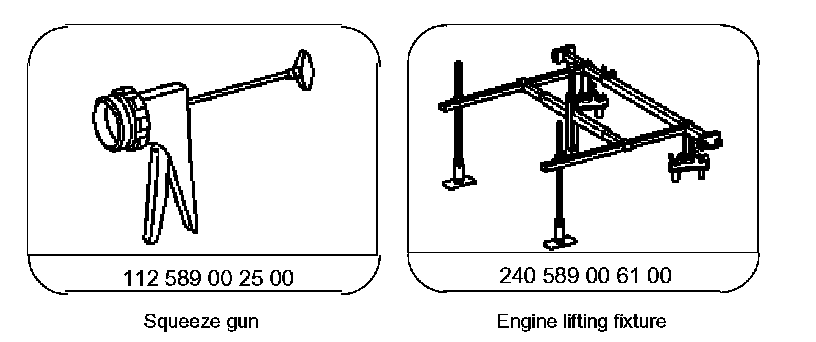

Special Tools:

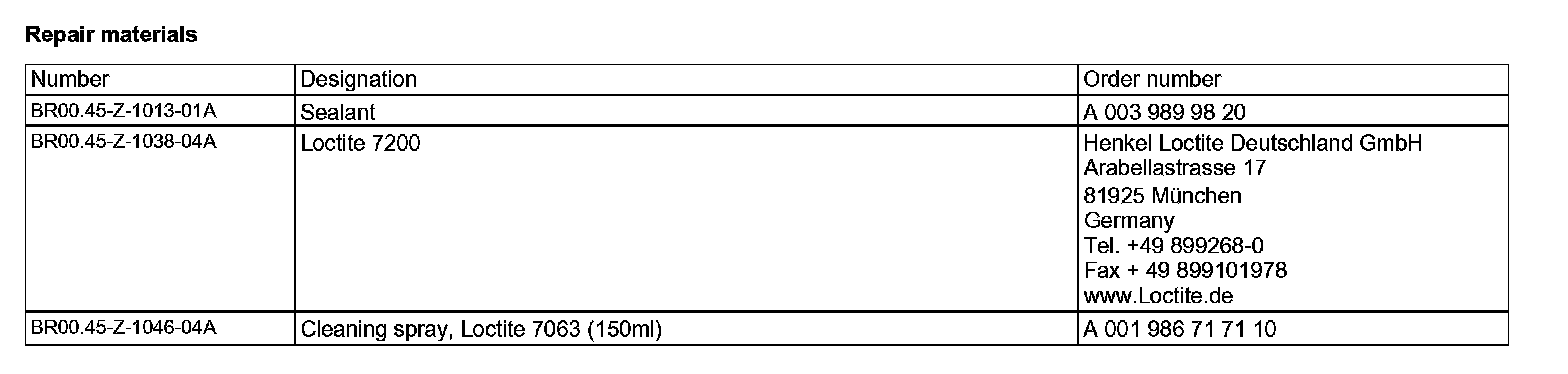

Repair materials:
