AR01.30-P-5700QC Remove/Install Front Cover on Cylinder Head



AR01.30-P-5700QC Remove/install front cover on cylinder head
- Front cover on left cylinder head

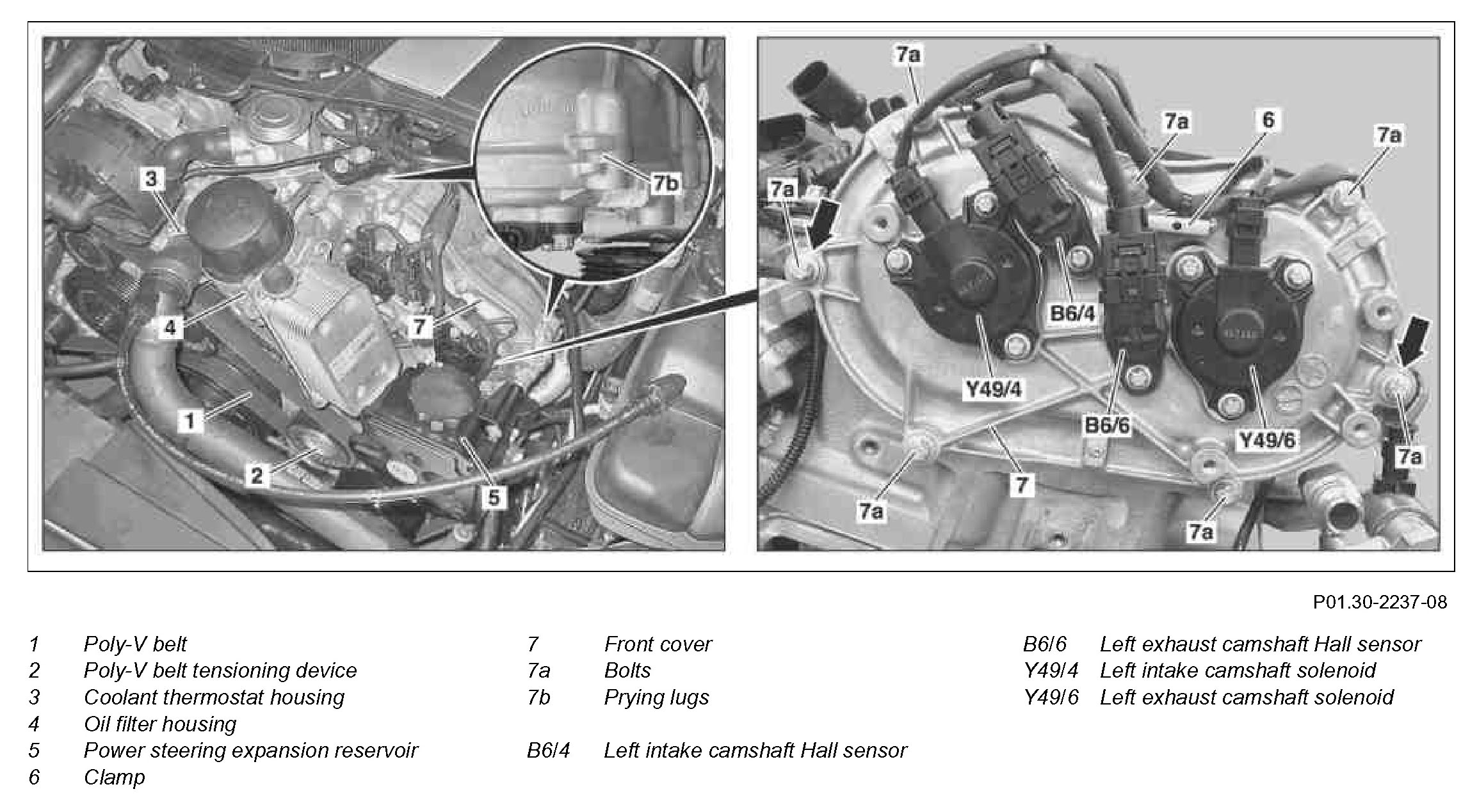

Component Identification:

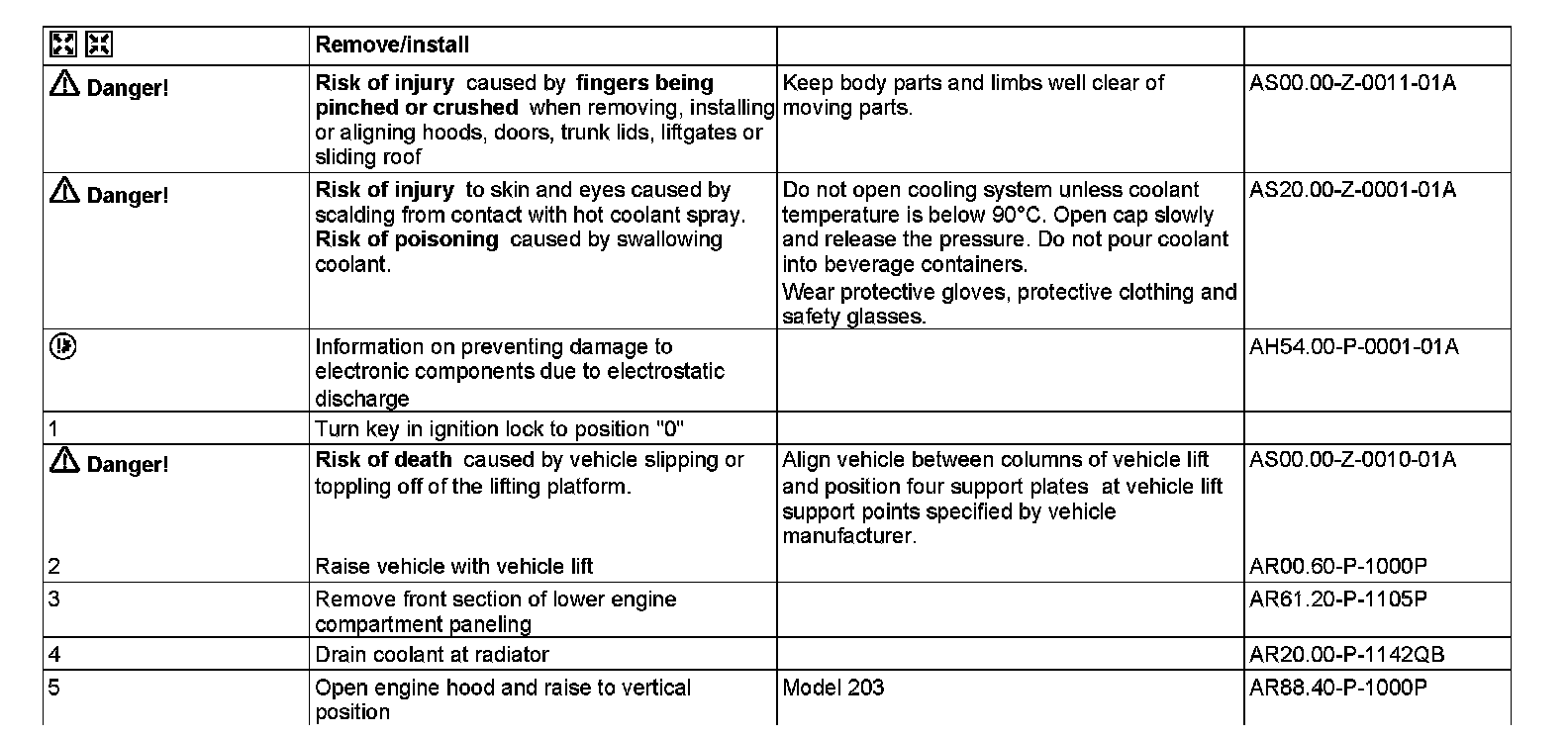

Steps 1-5:




Steps 6-22:

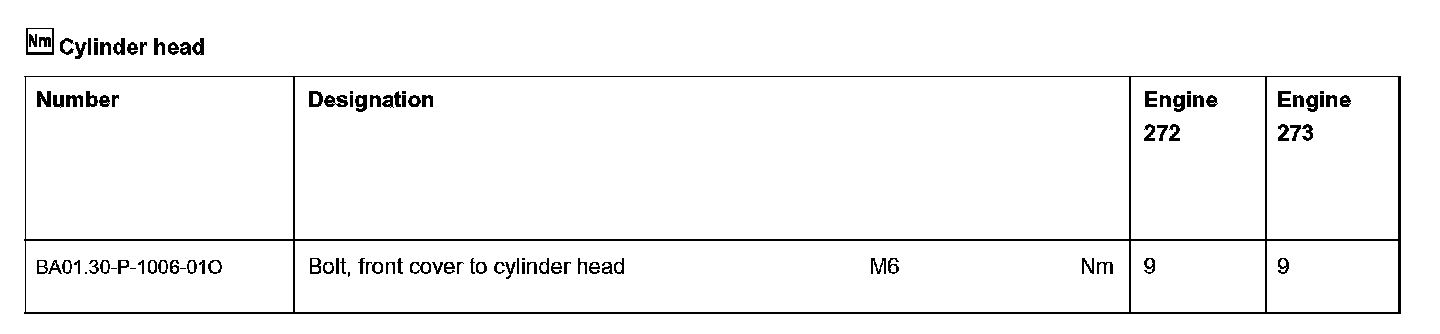

Cylinder head:

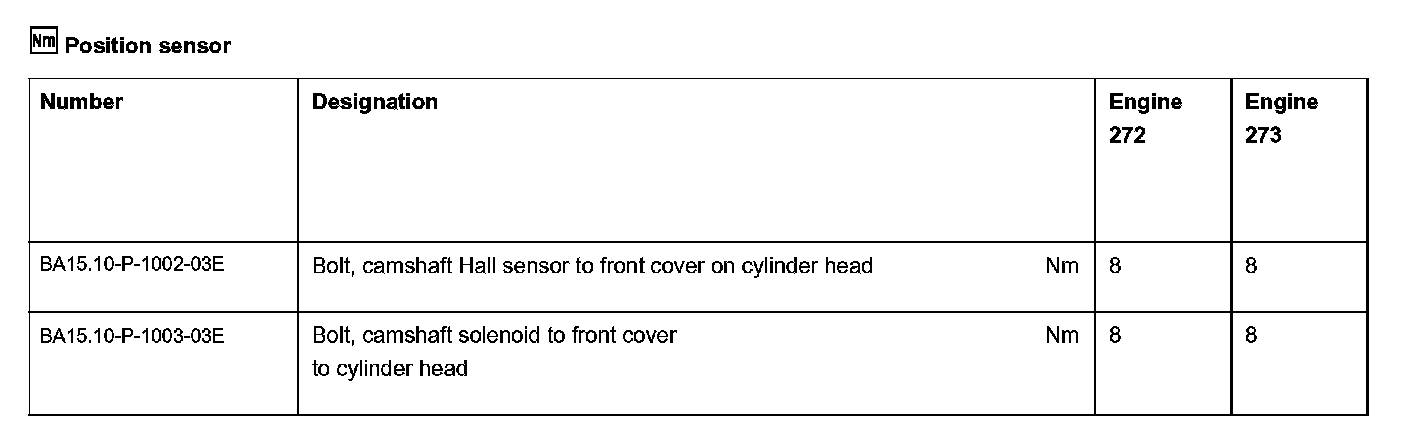

Position sensor:

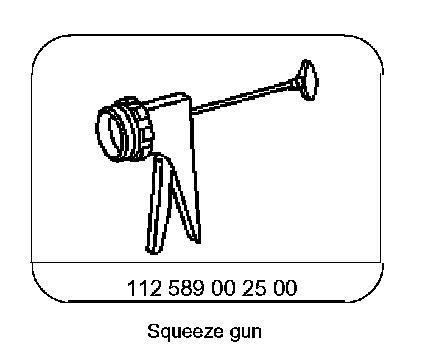

Special Tools:




Repair materials:
