AR05.10-P-7601QB Replace Timing Chain

AR05.10-P-7601QB Replace timing chain

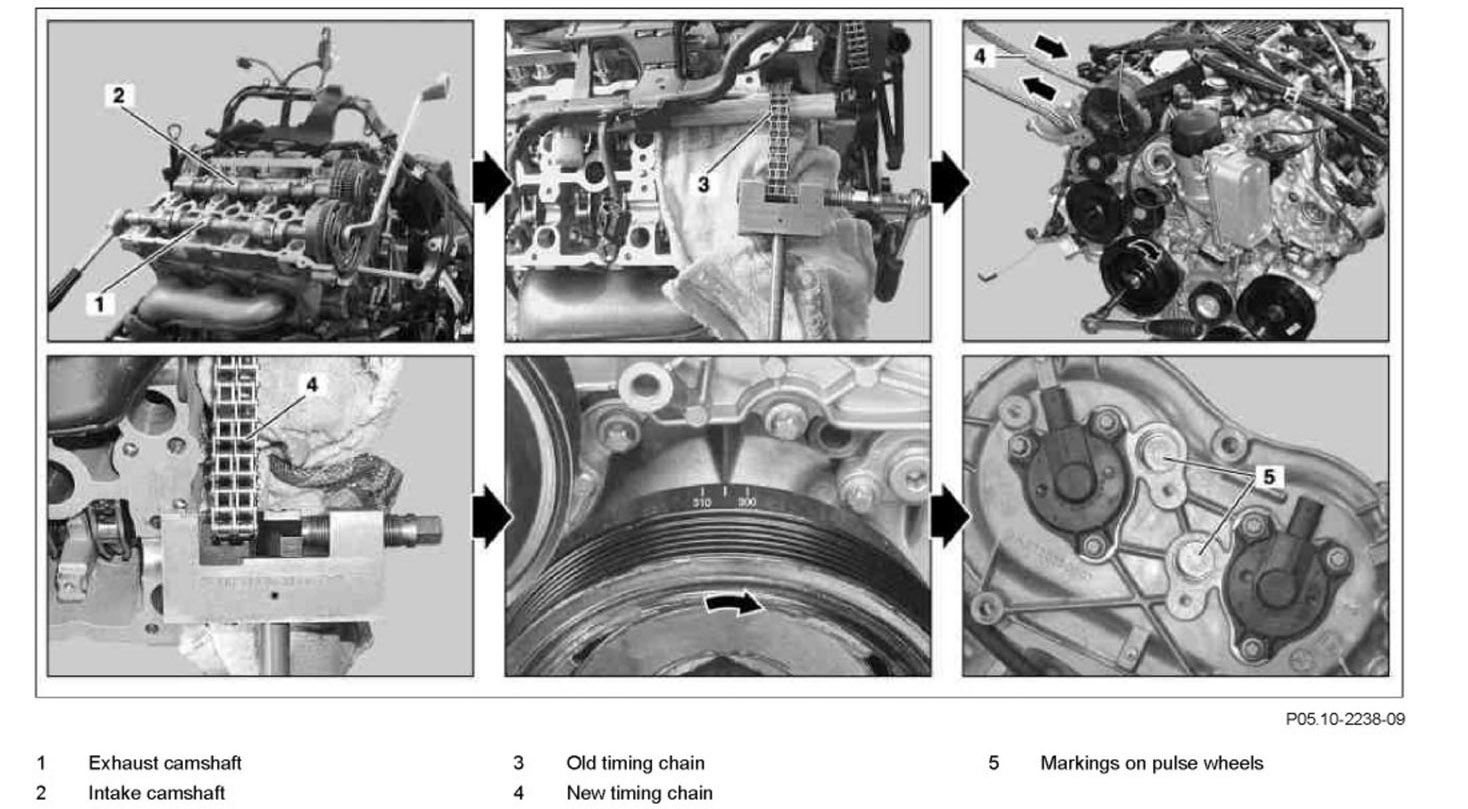

Component Identification:

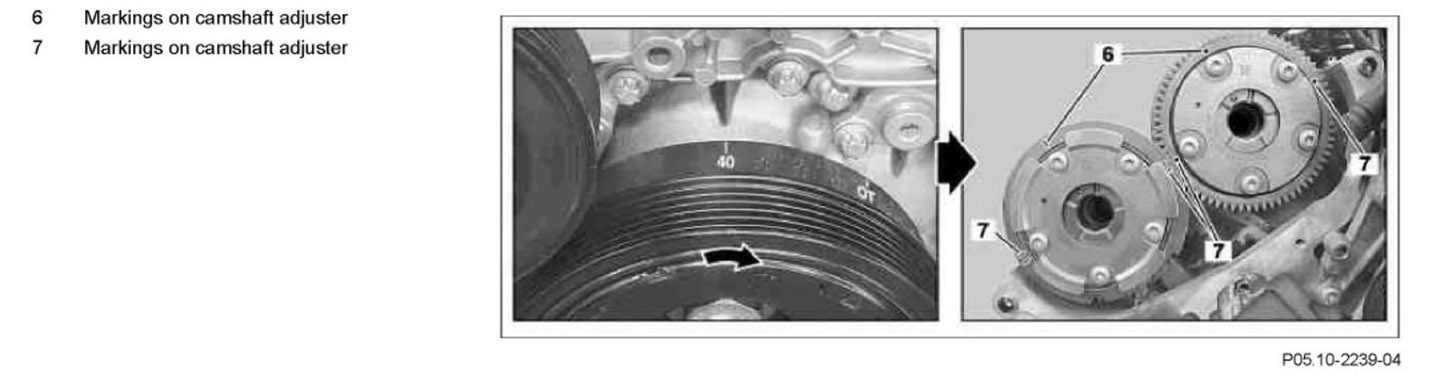

Component Identification:

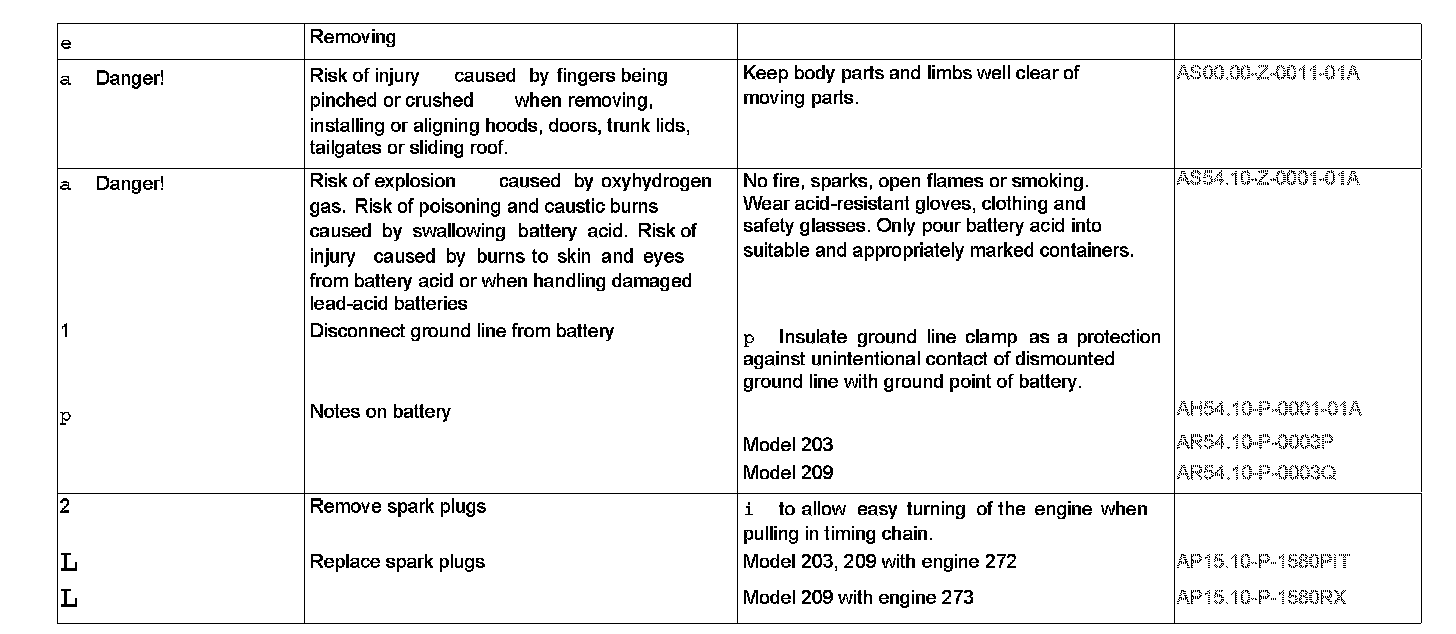

Steps 1 - 2:

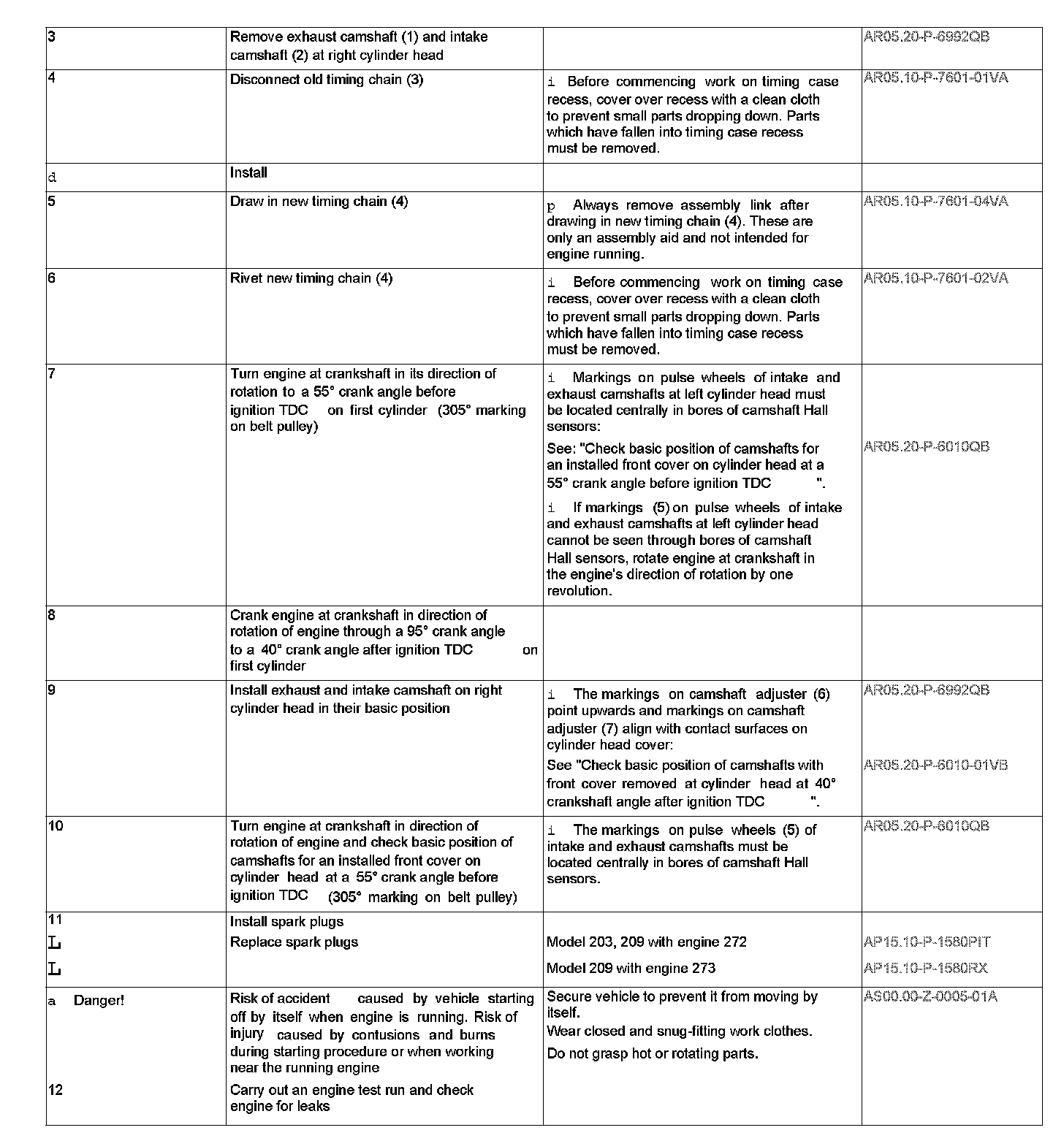

Steps 3 - 12:
