AR05.10-P-8484QB Remove/Install Slide Rail In Timing Case Cover
AR05.10-P-8484QB Remove/Install Slide Rail In Timing Case Cover
AR05.10-P-8484QB Removing/installing slide rail in timing case cover

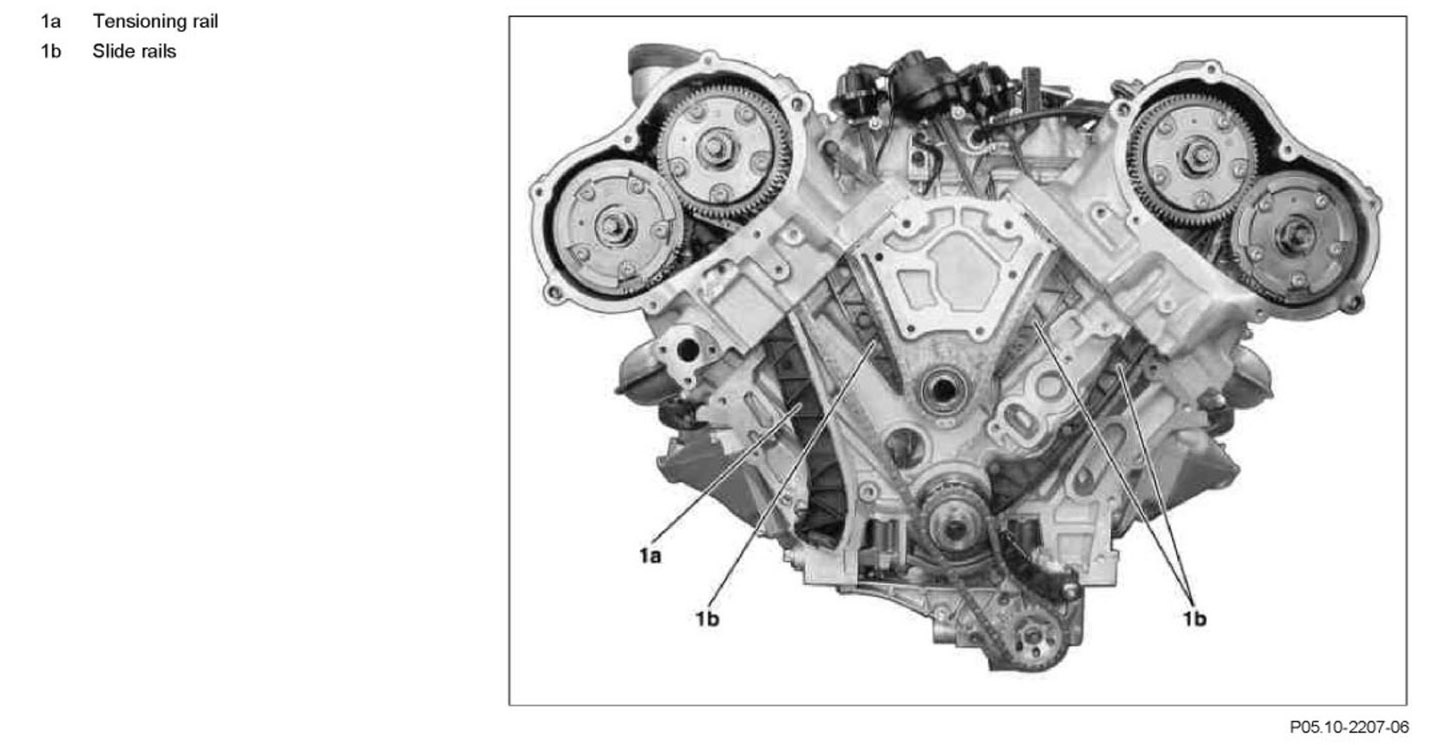

Component Identification:

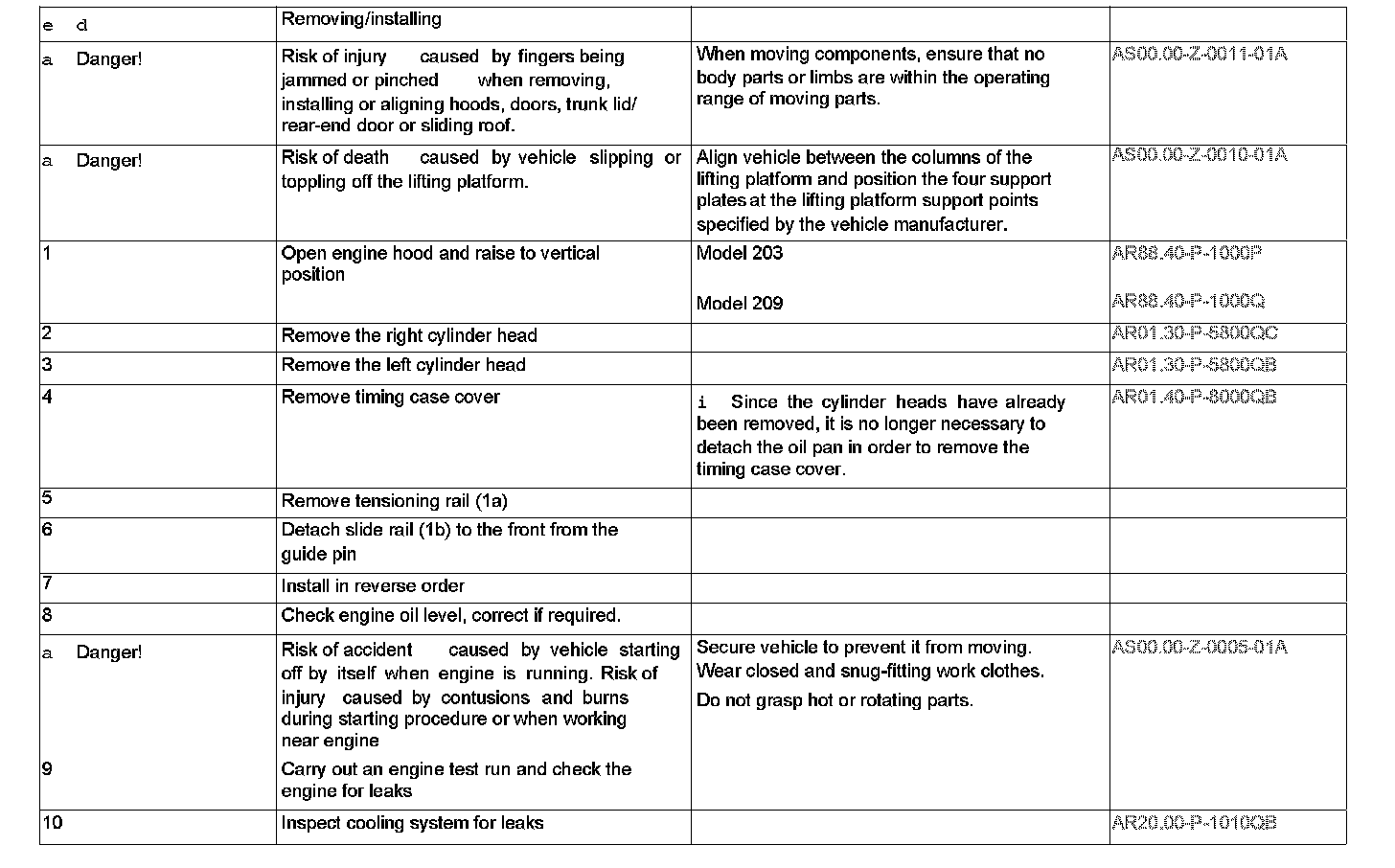

Steps 1 - 10:
