AR01.45-P-7500QD Remove/Install Oil Pan

Component Identification:

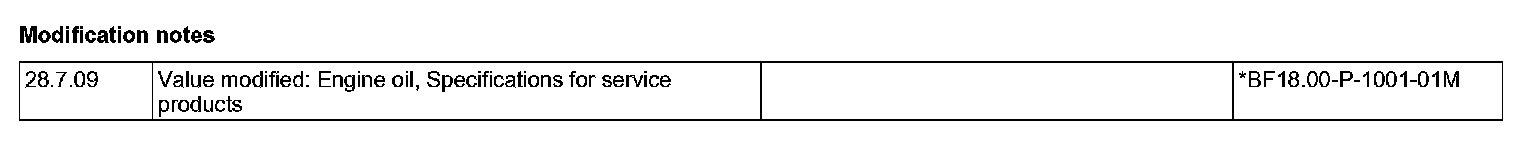

Modification notes:

Steps 1-5:

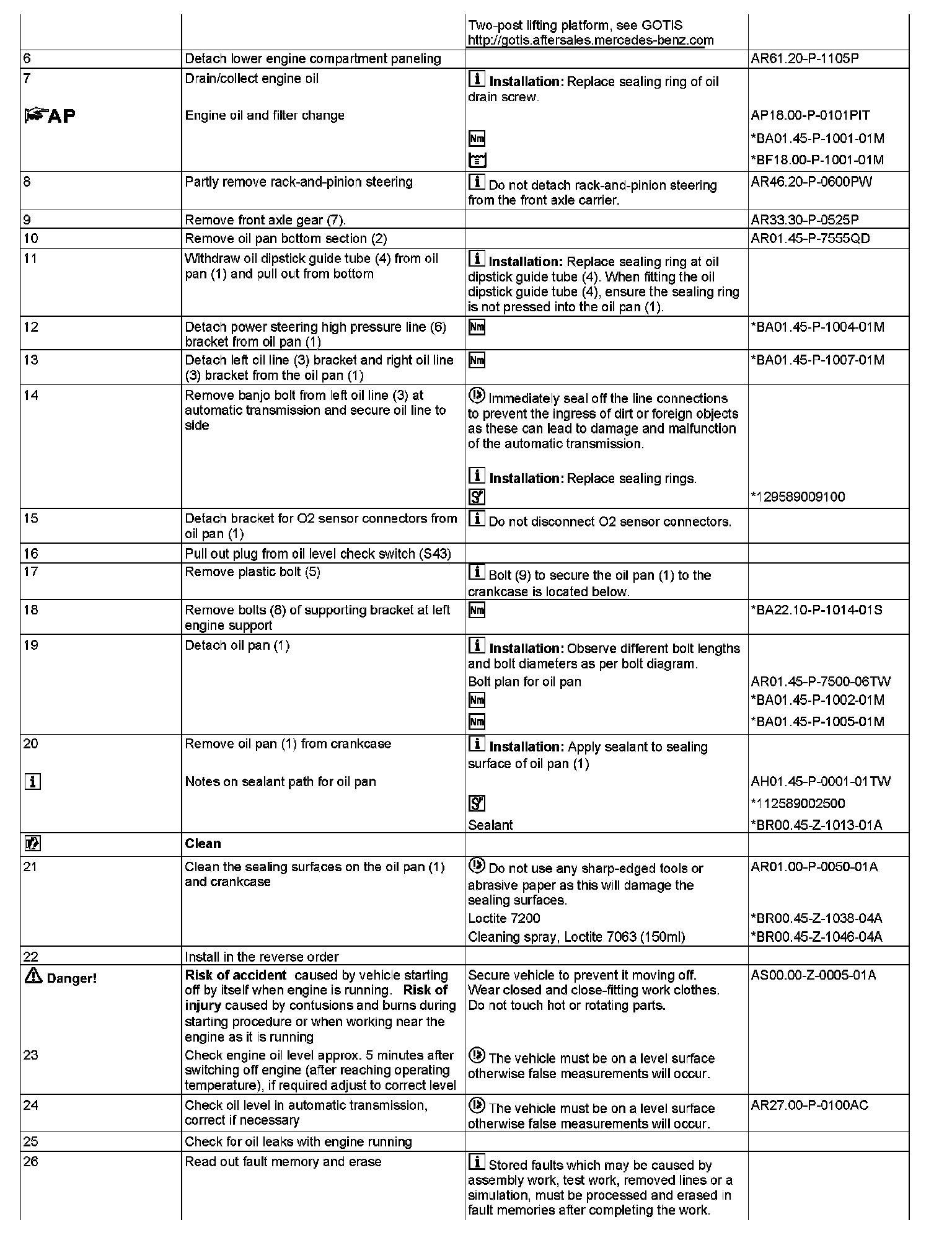

Steps 6-26:

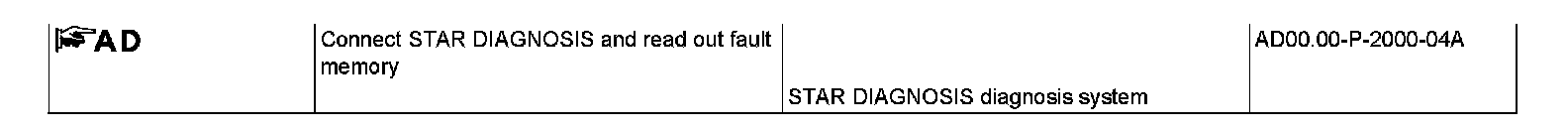

Step 26 (Continued):

Oil pan:

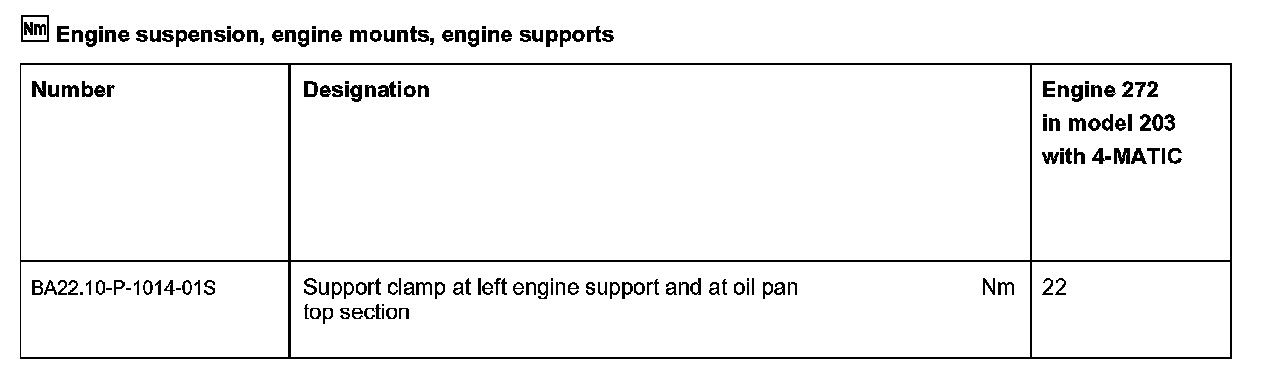

Engine suspension, engine mounts, engine supports:

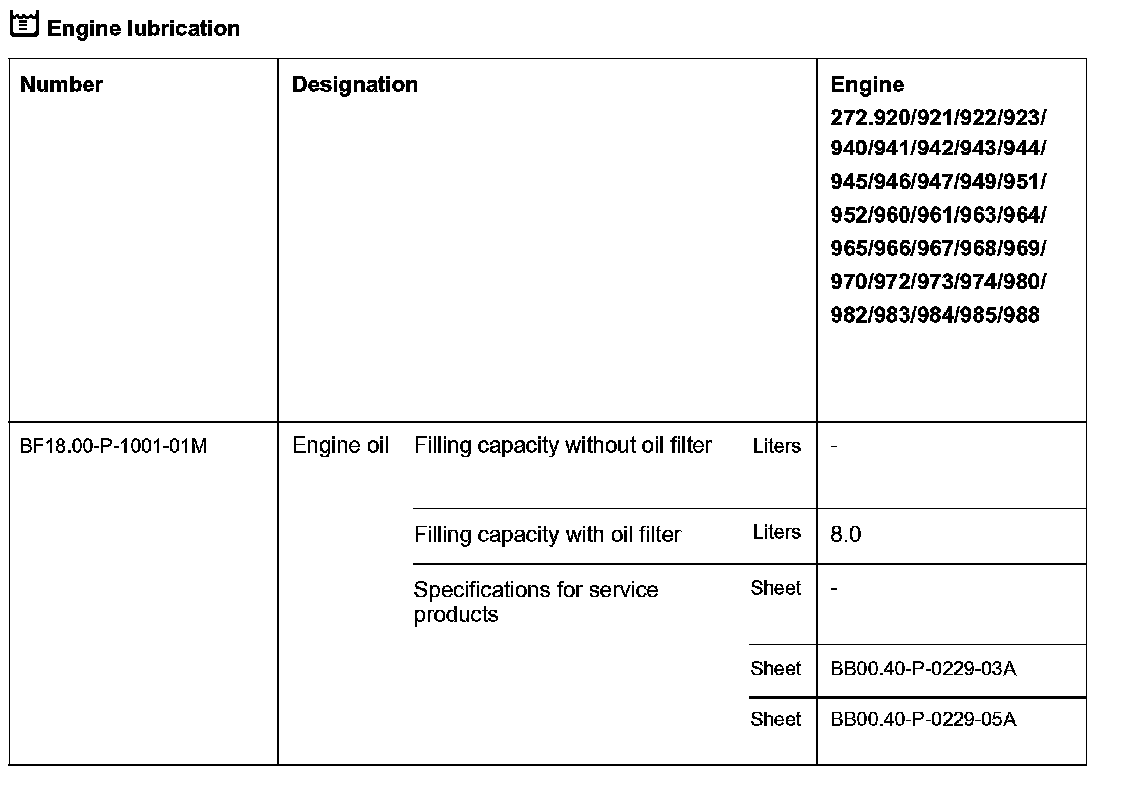

Engine lubrication:

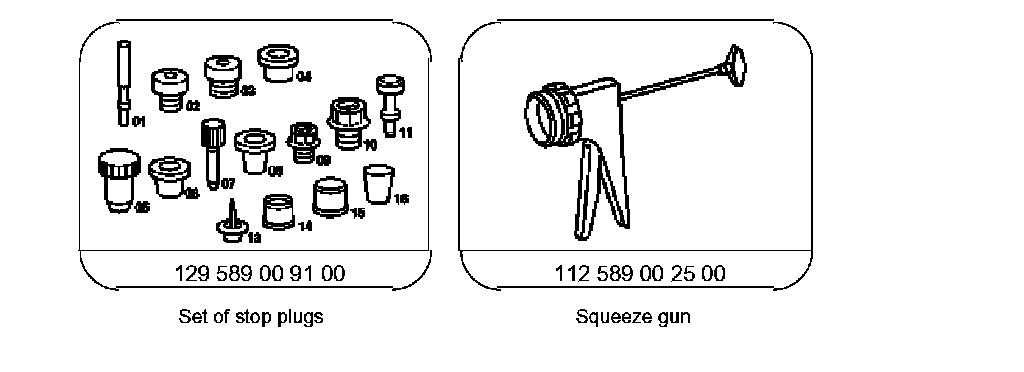

Special Tools:

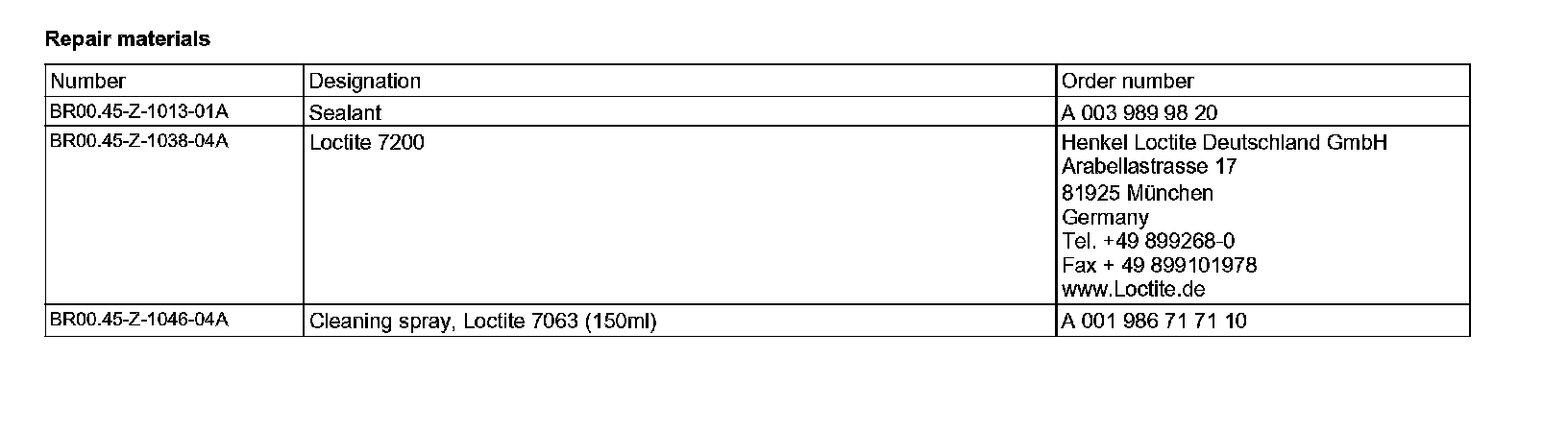

Repair materials:
