C 280 4MATIC (203.092) V6-3.0L (272.941)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Engine Lubrication
>>
Engine Oil
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AP18.00-P-0101PIT Engine oil and filter change
Modification notes:

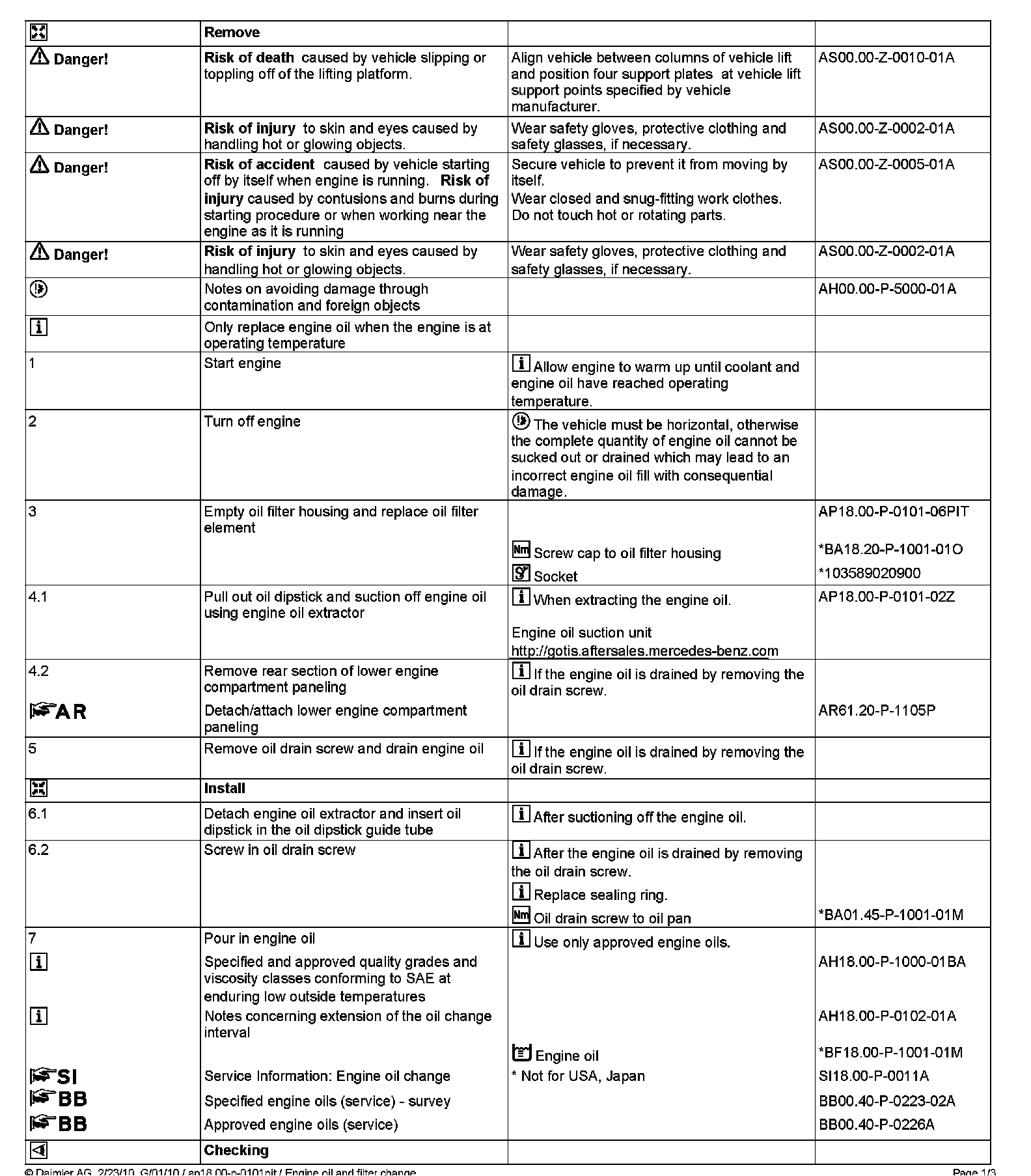

Steps 1-7:

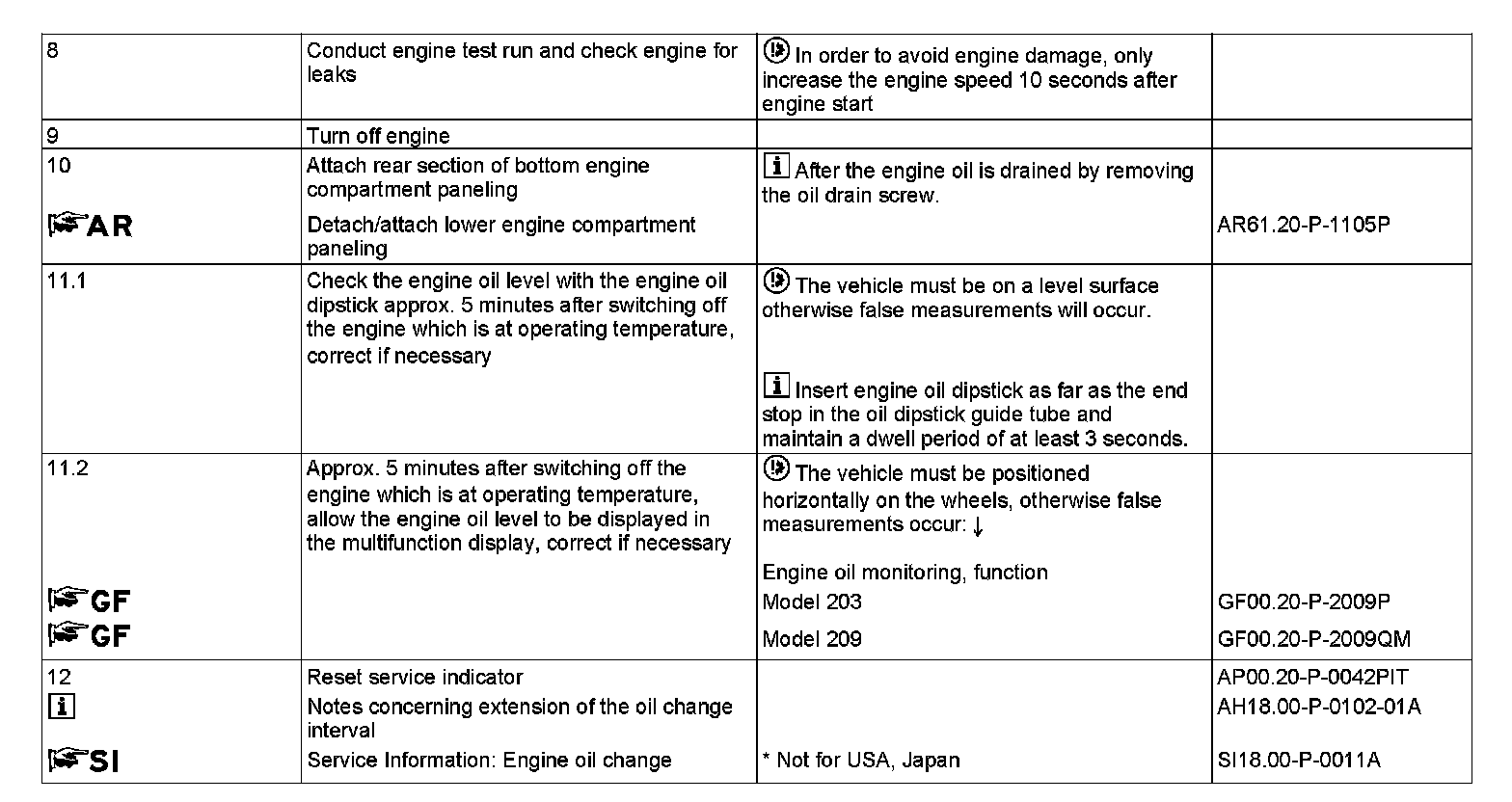

Steps 8-12:

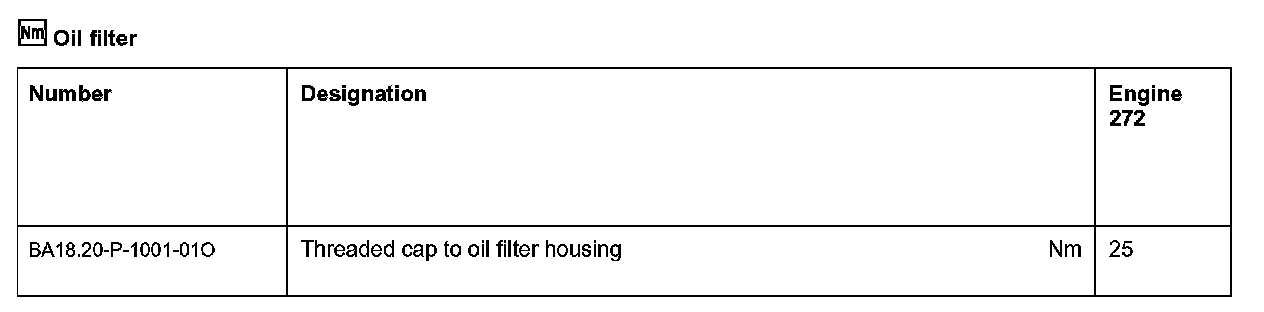

Oil filter:

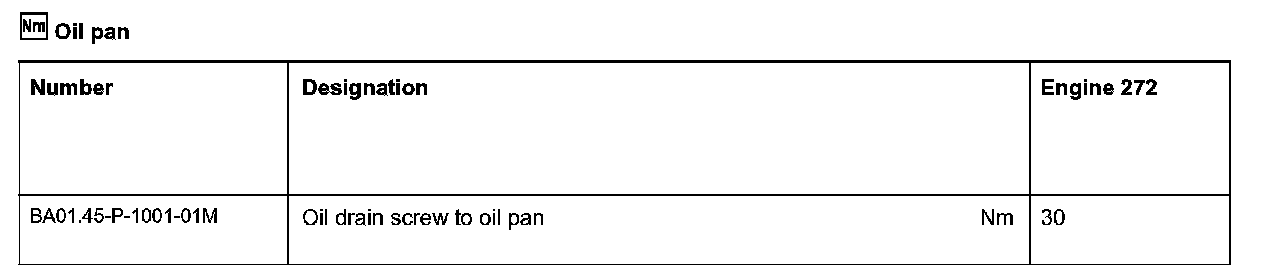

Oil pan:

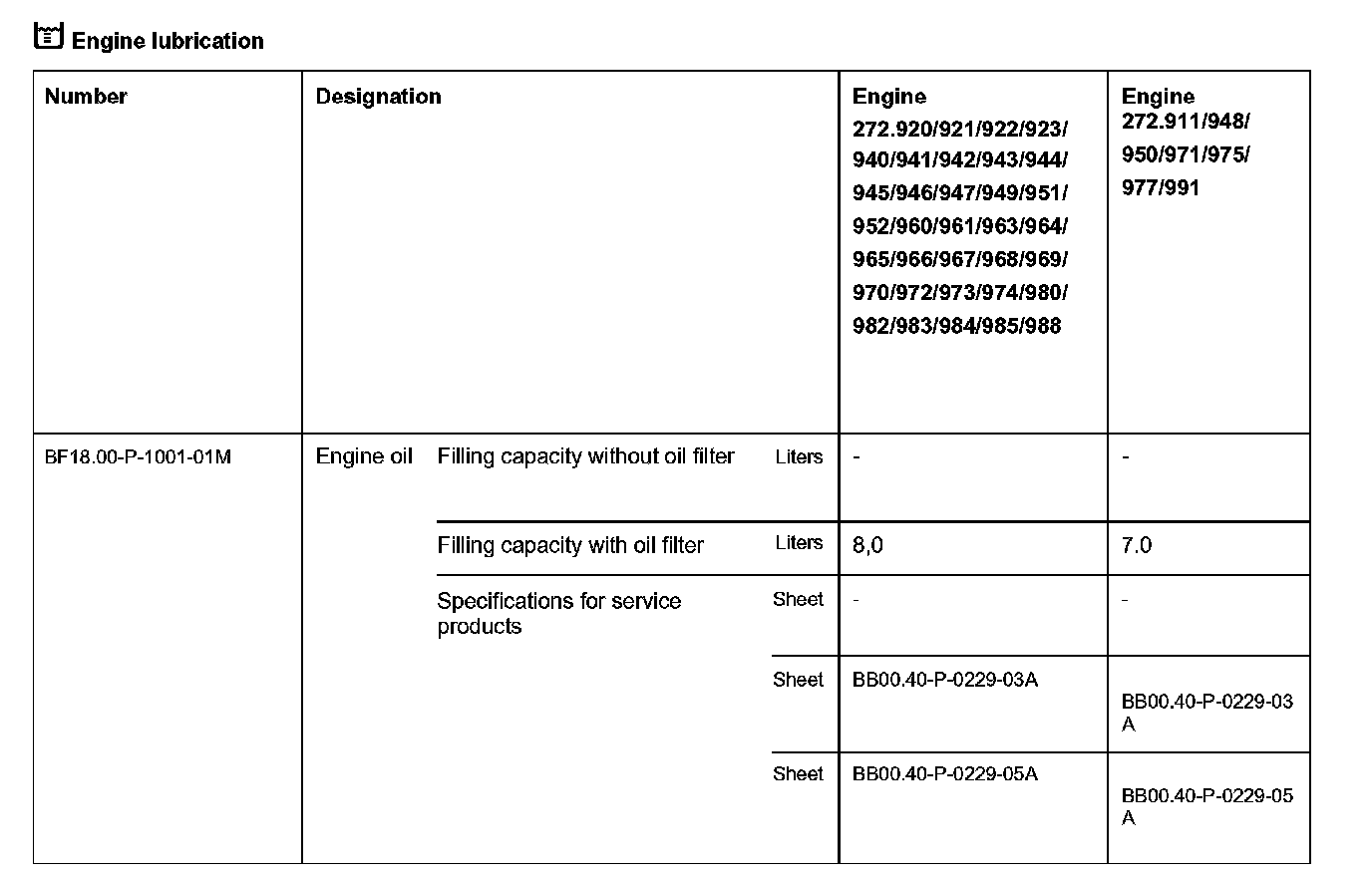

Engine lubrication:
Special Tools:
