Electrical Diagrams

Airbag Control Module PE91.60-U-2101FB

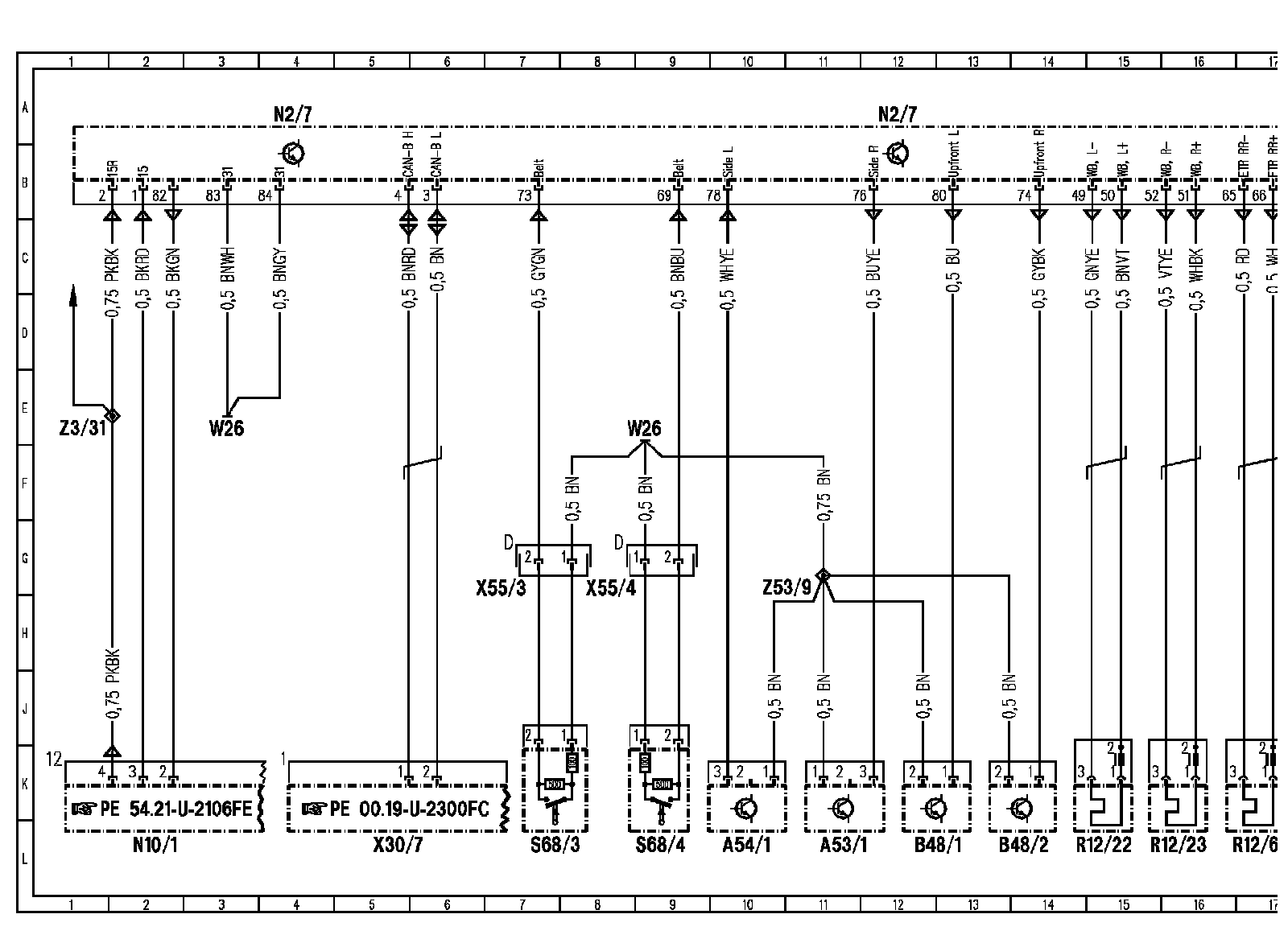

Wiring Diagram, Part 1:

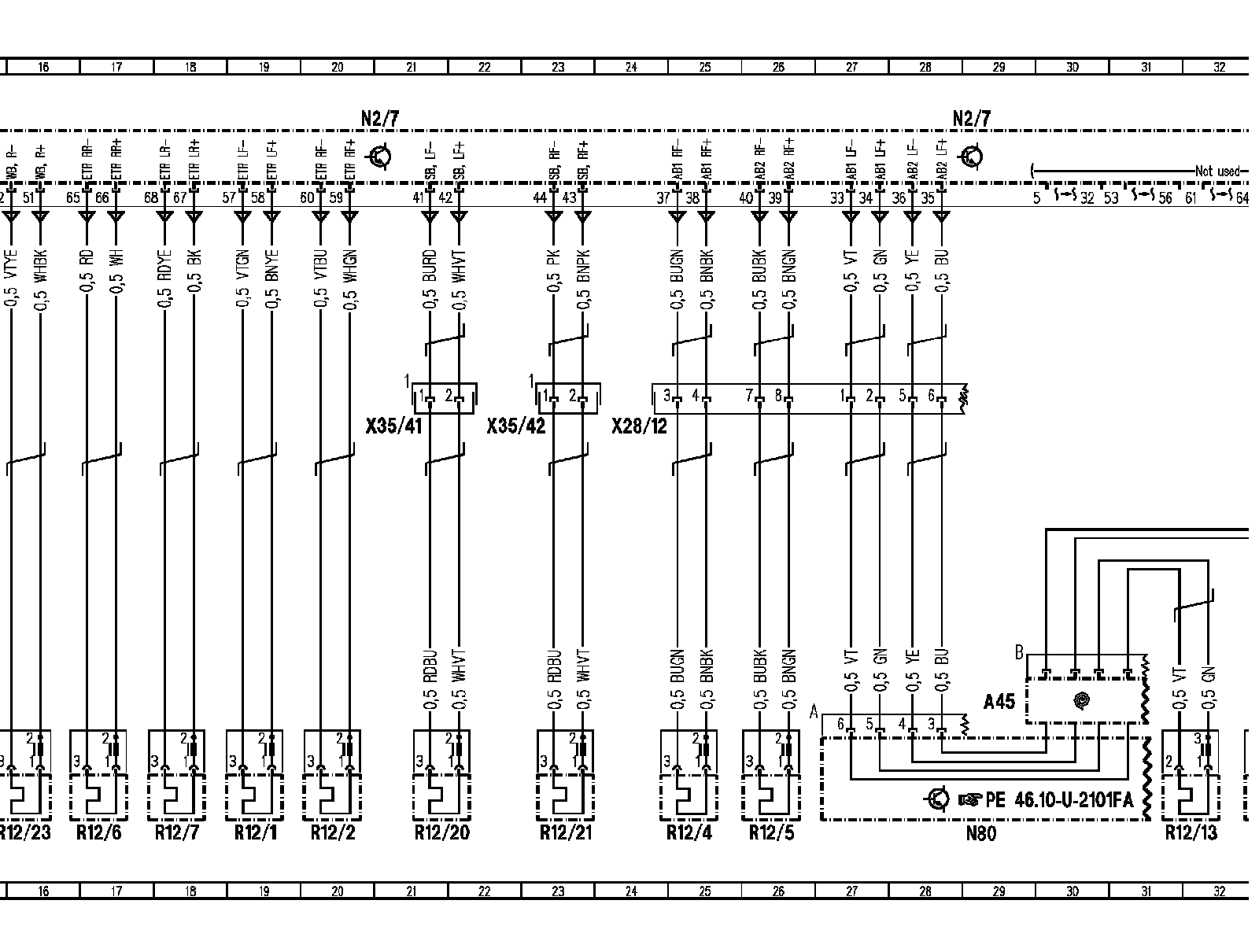

Wiring Diagram, Part 2:

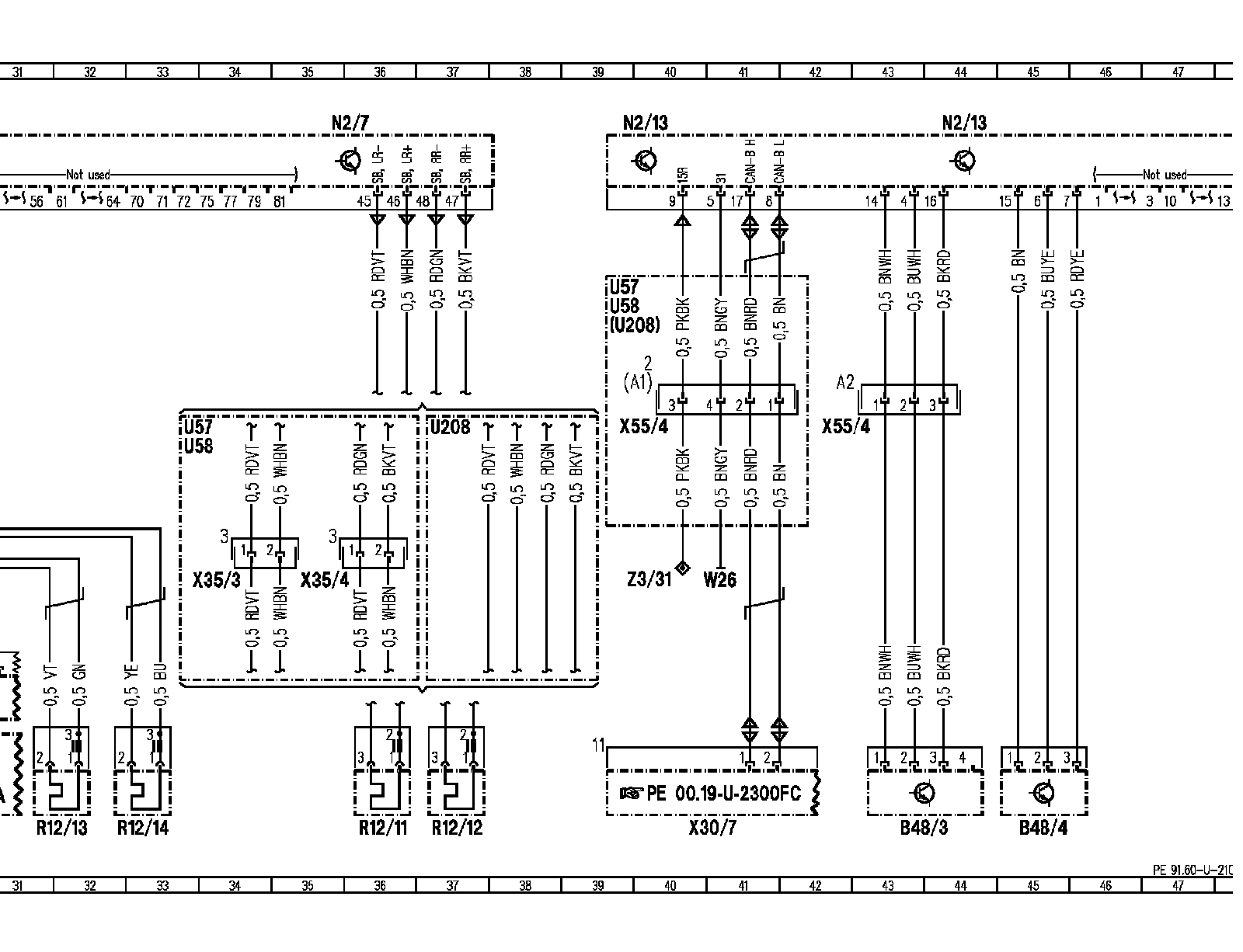

Wiring Diagram, Part 3:

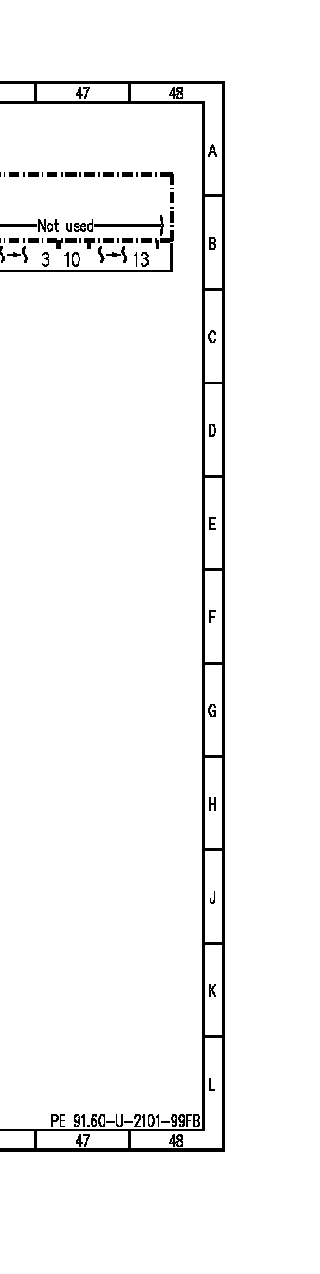

Wiring Diagram, Part 4:

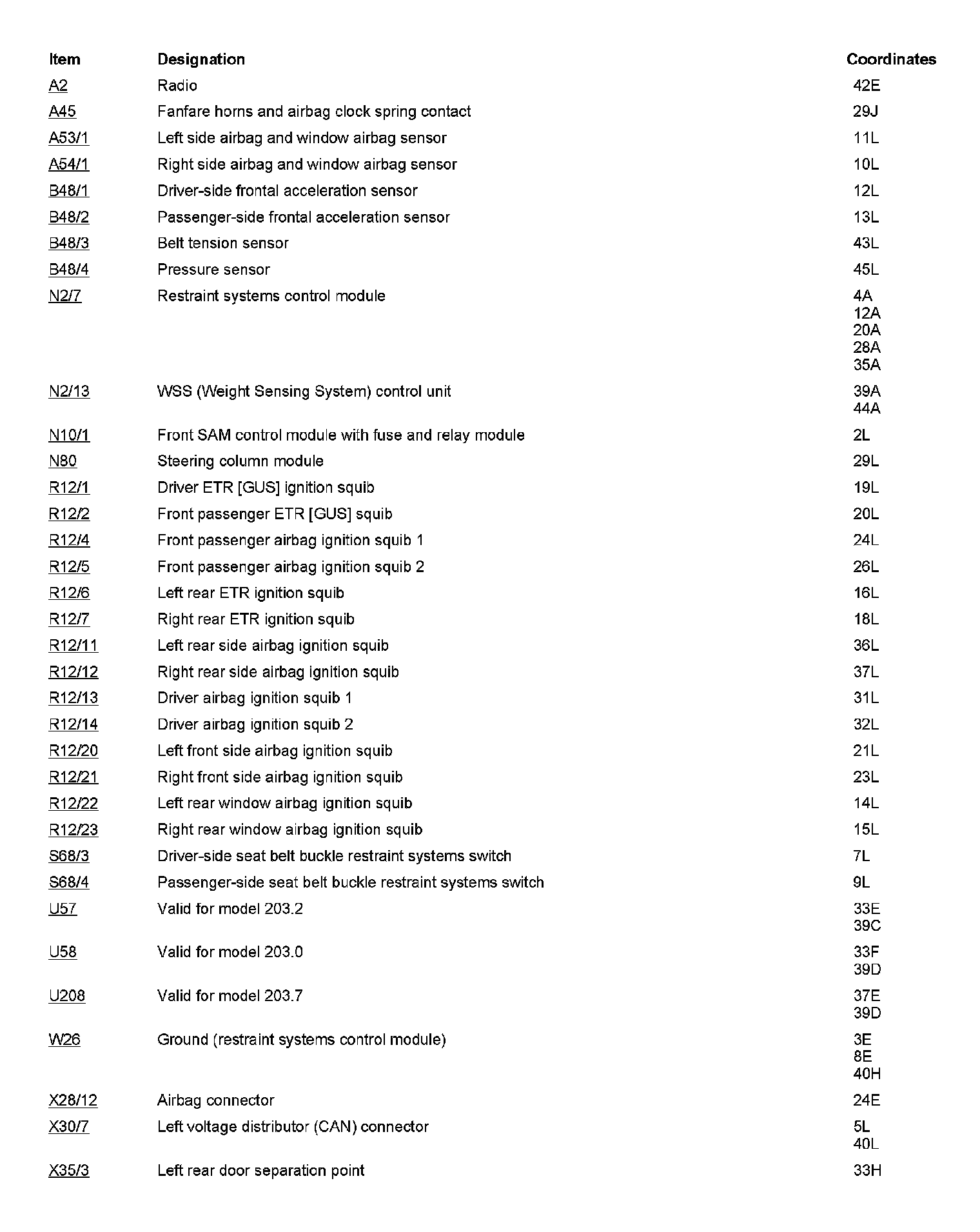

Component Description/Coordinates, A2 To X35/3:

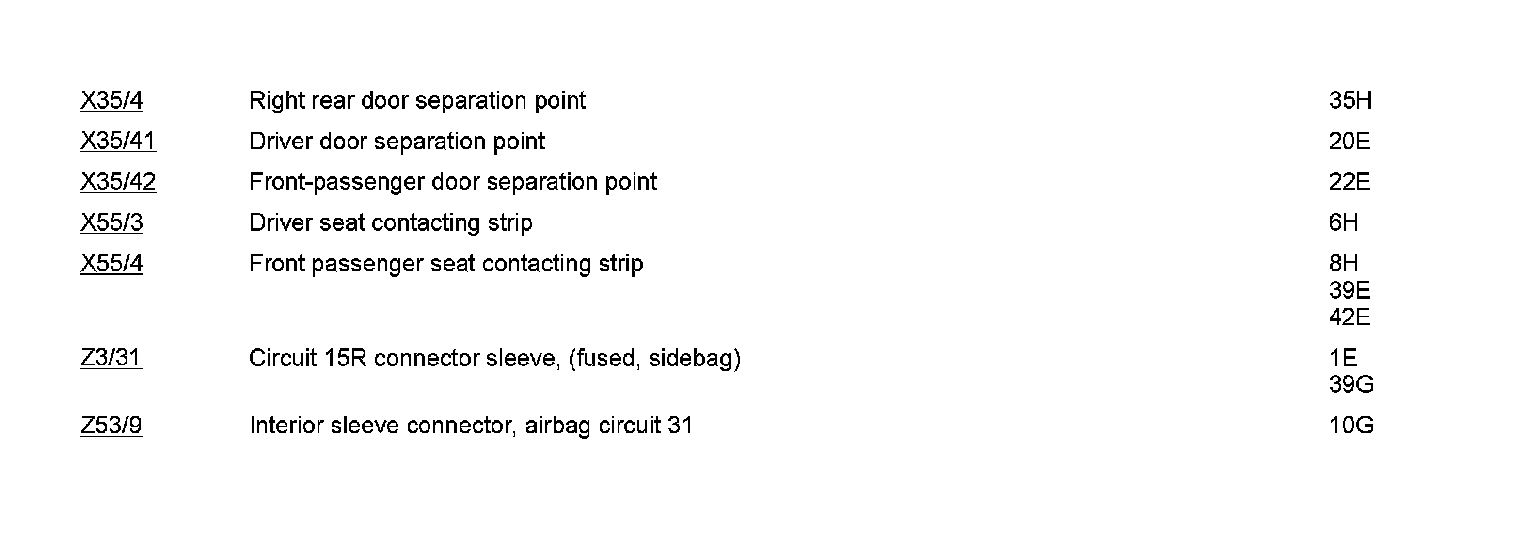

Component Description/Coordinates, X35/4 To Z53/9:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
