CAN Bus - Interior Compartment PE00.19-U-2300FC (Sheet 1)

CAN Bus - Interior Compartment PE00.19-U-2300FC (Sheet 1)
- CAN Voltage distributor (X30/4, X30/7)

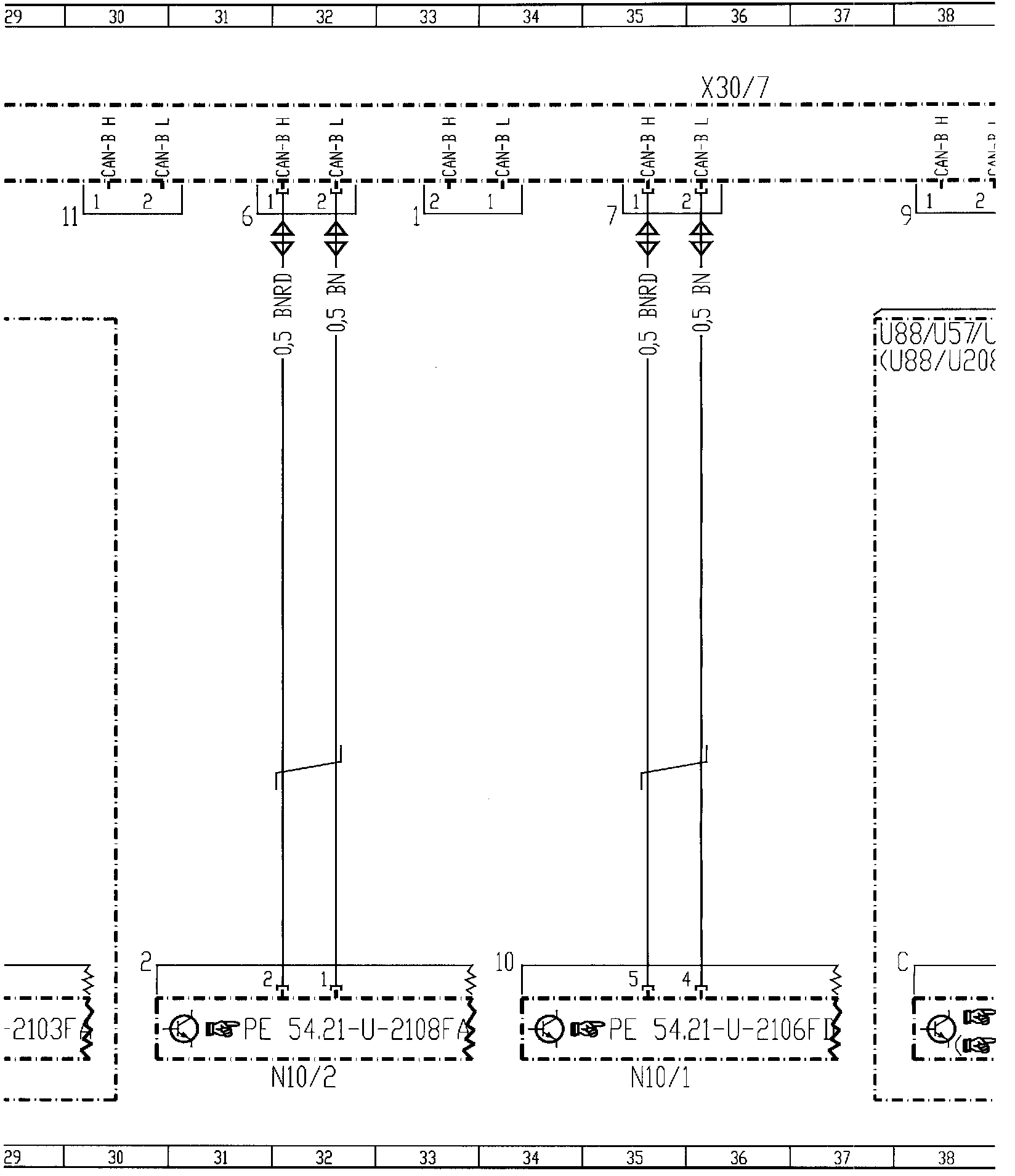

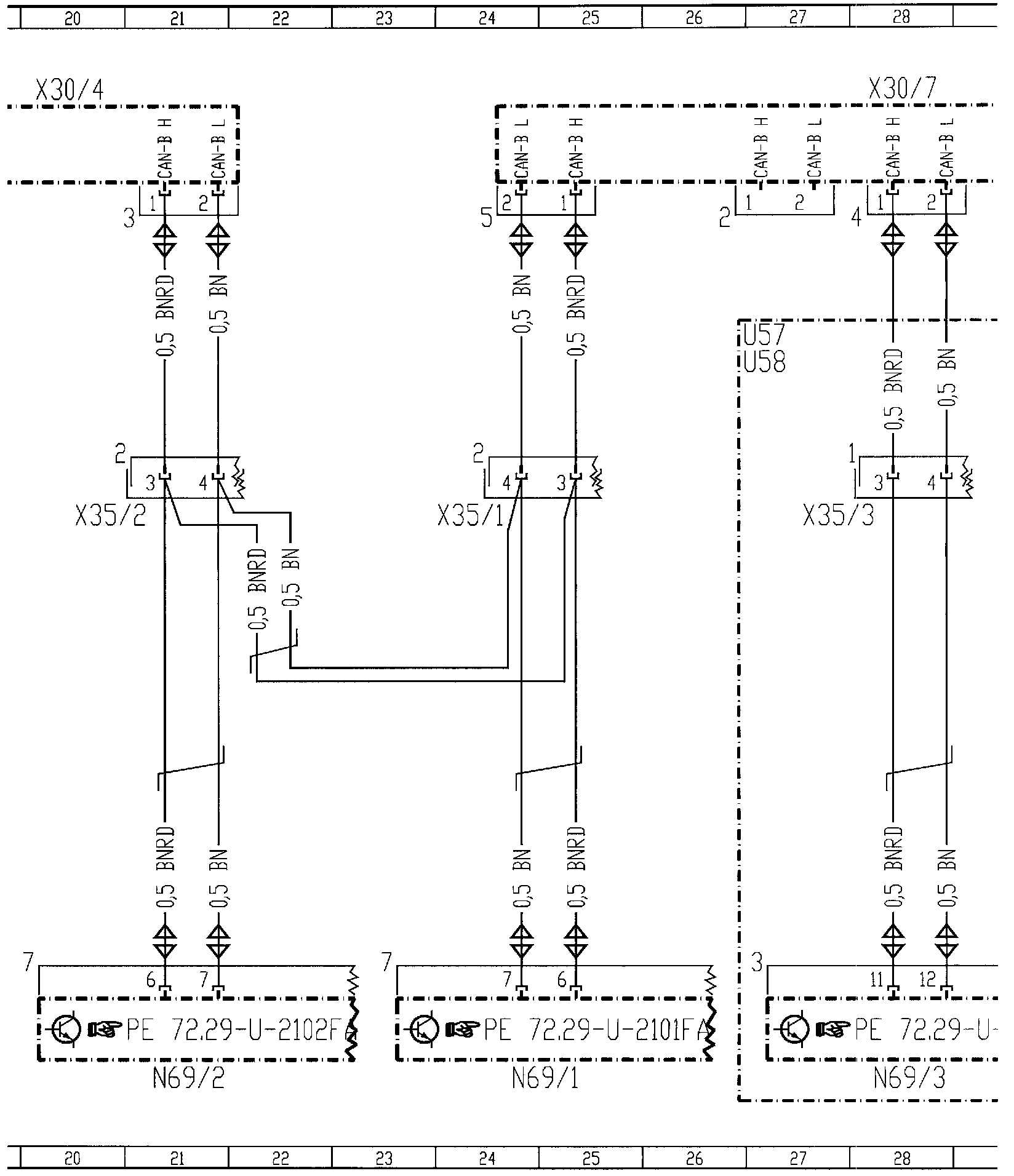

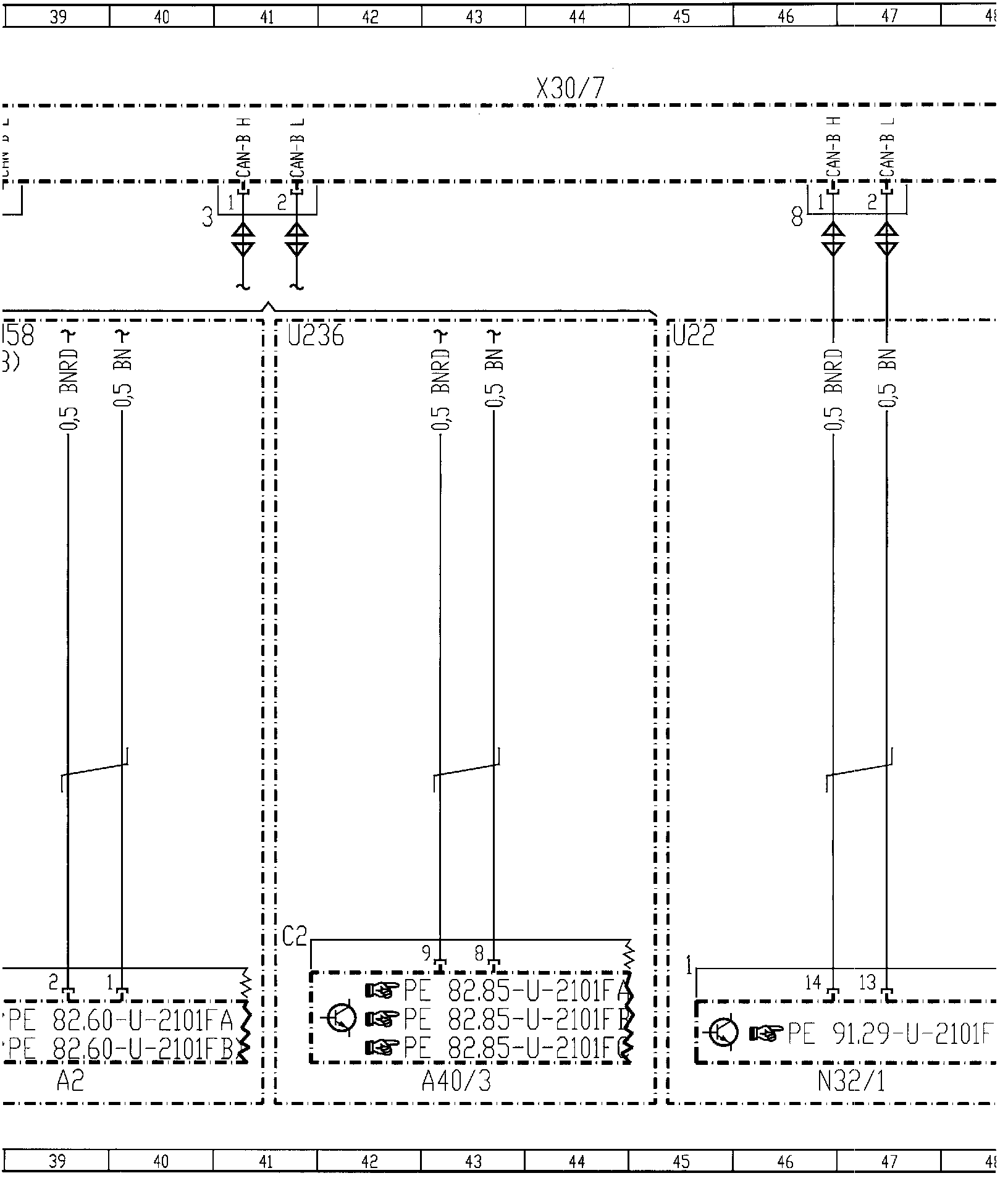

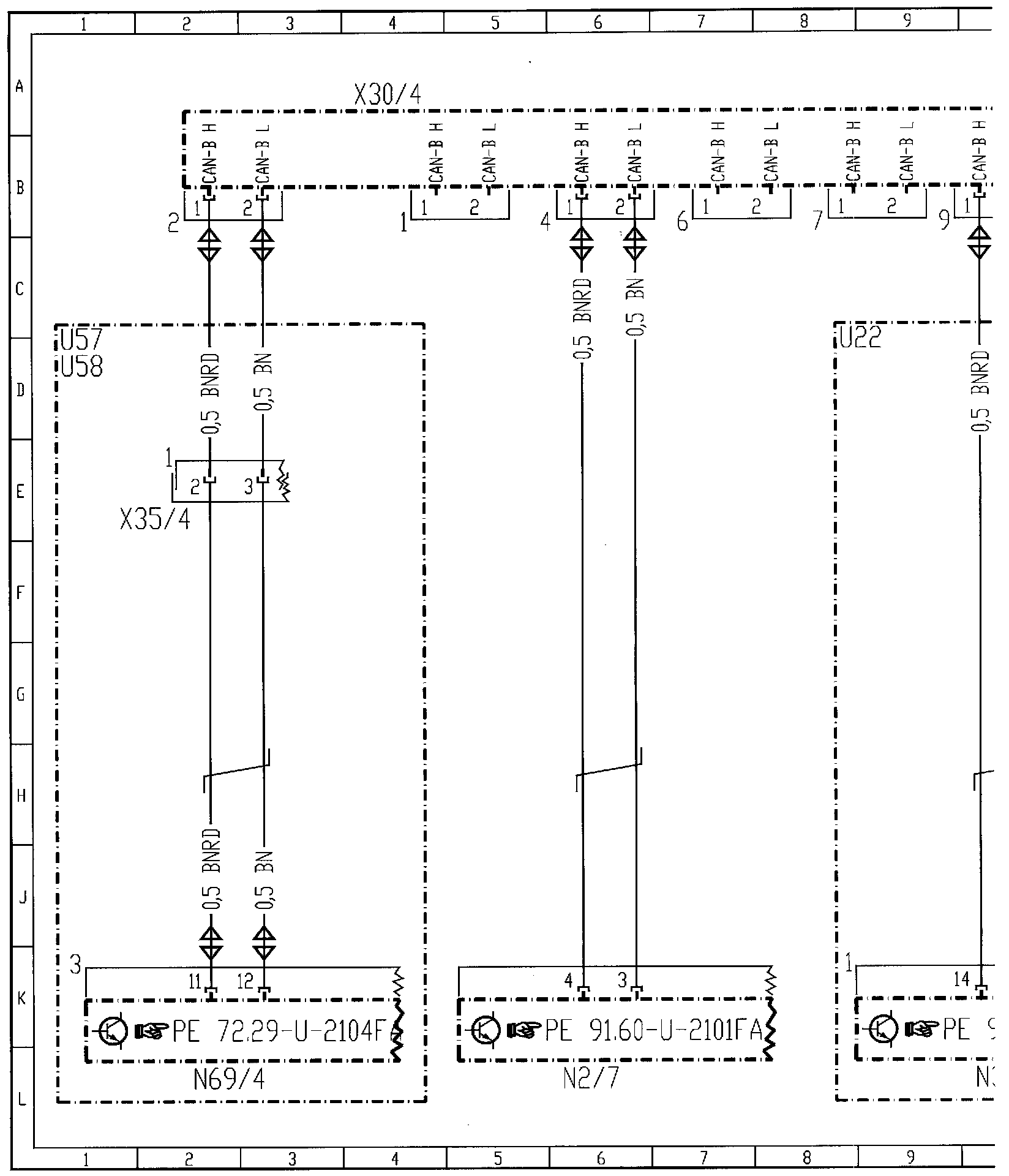

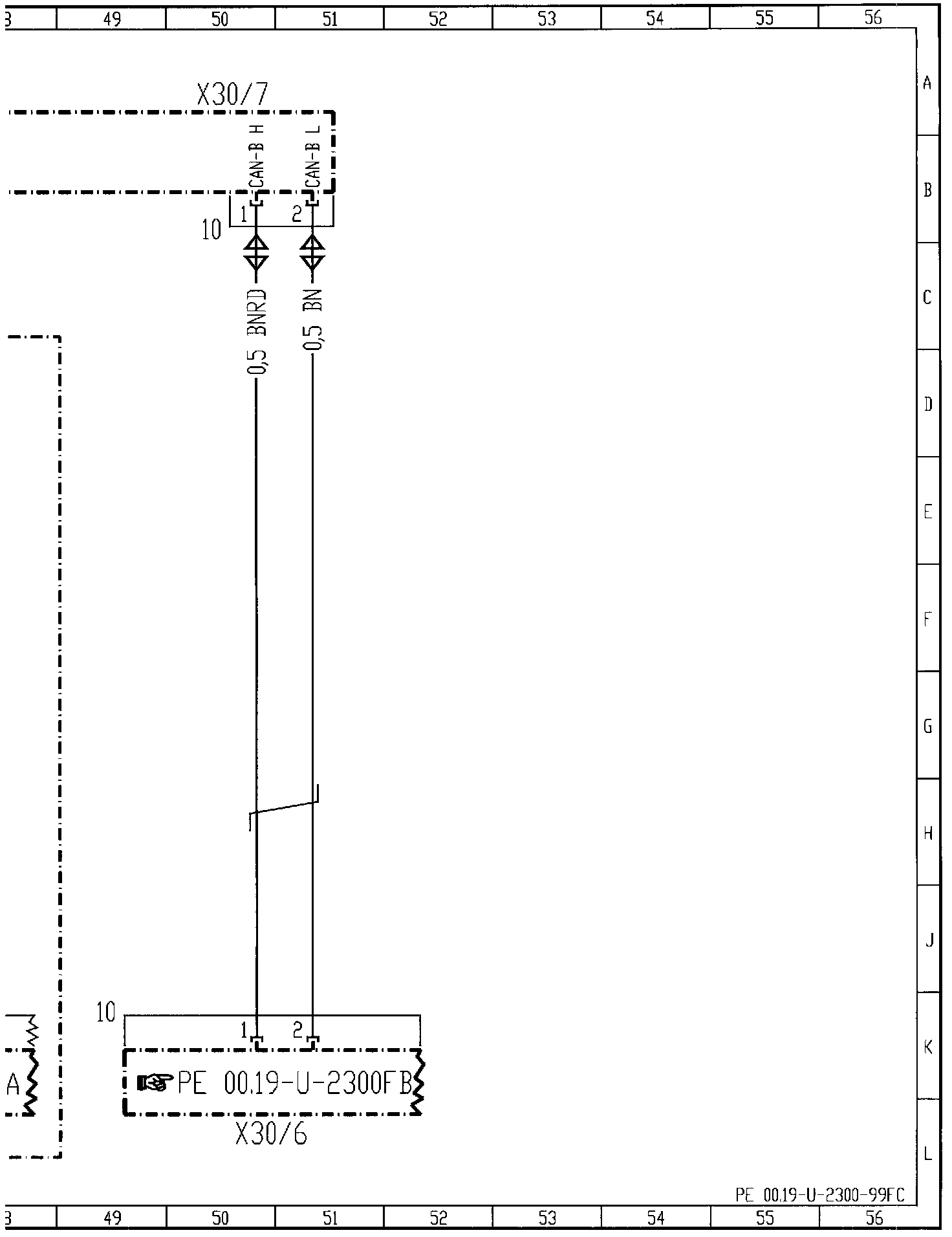

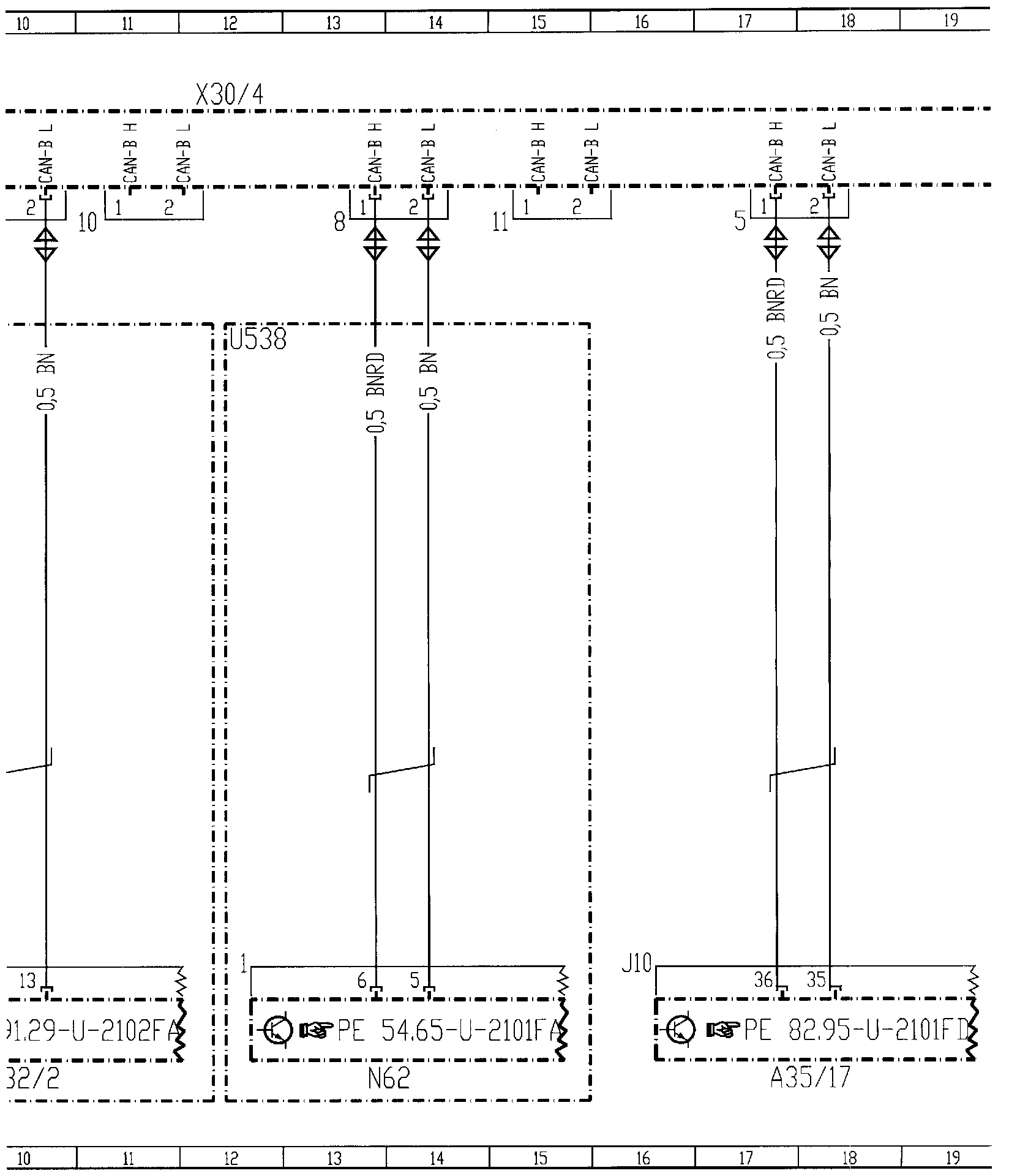

CAN Bus - Interior Compartment:

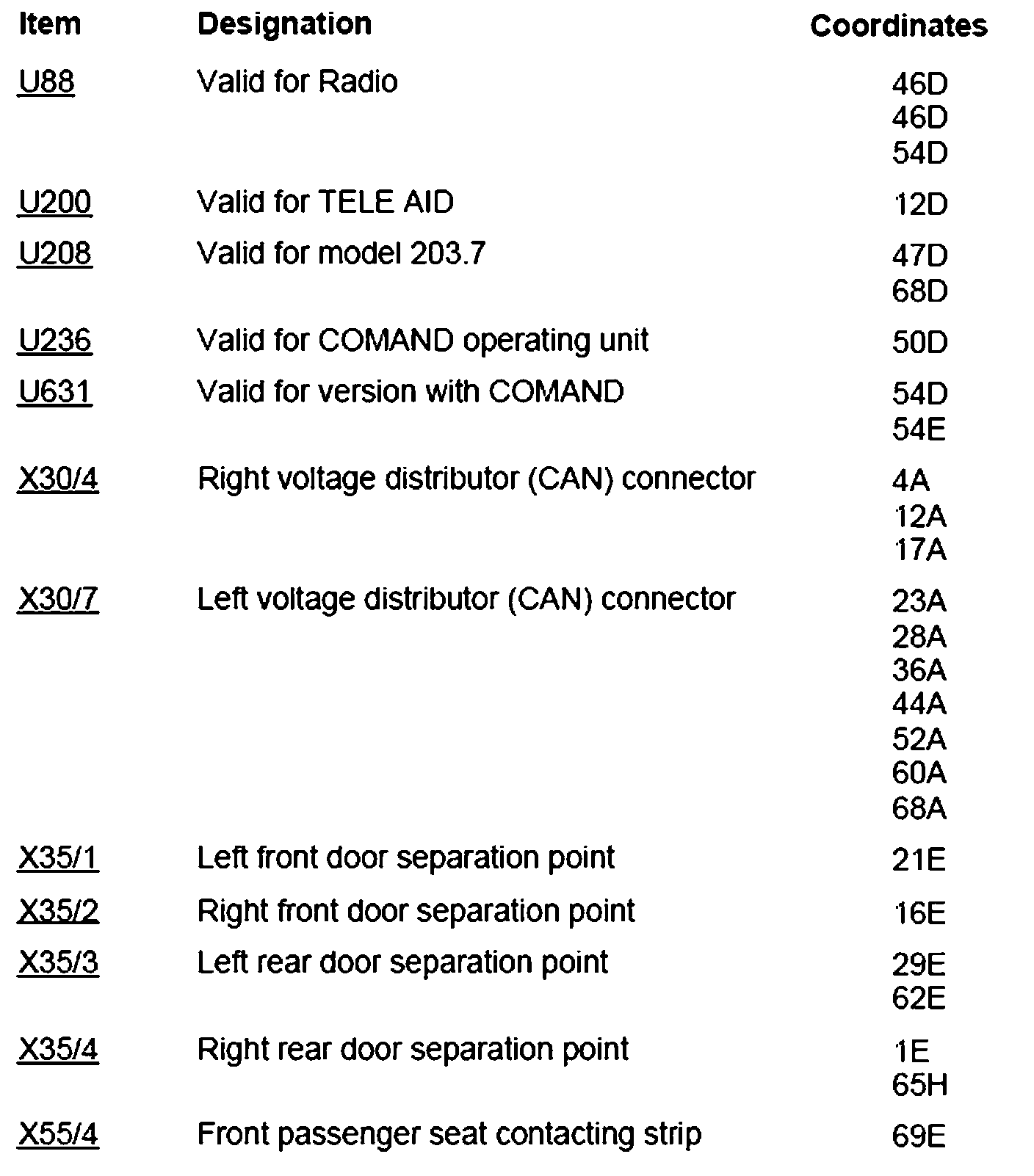

Legend 1 of 2

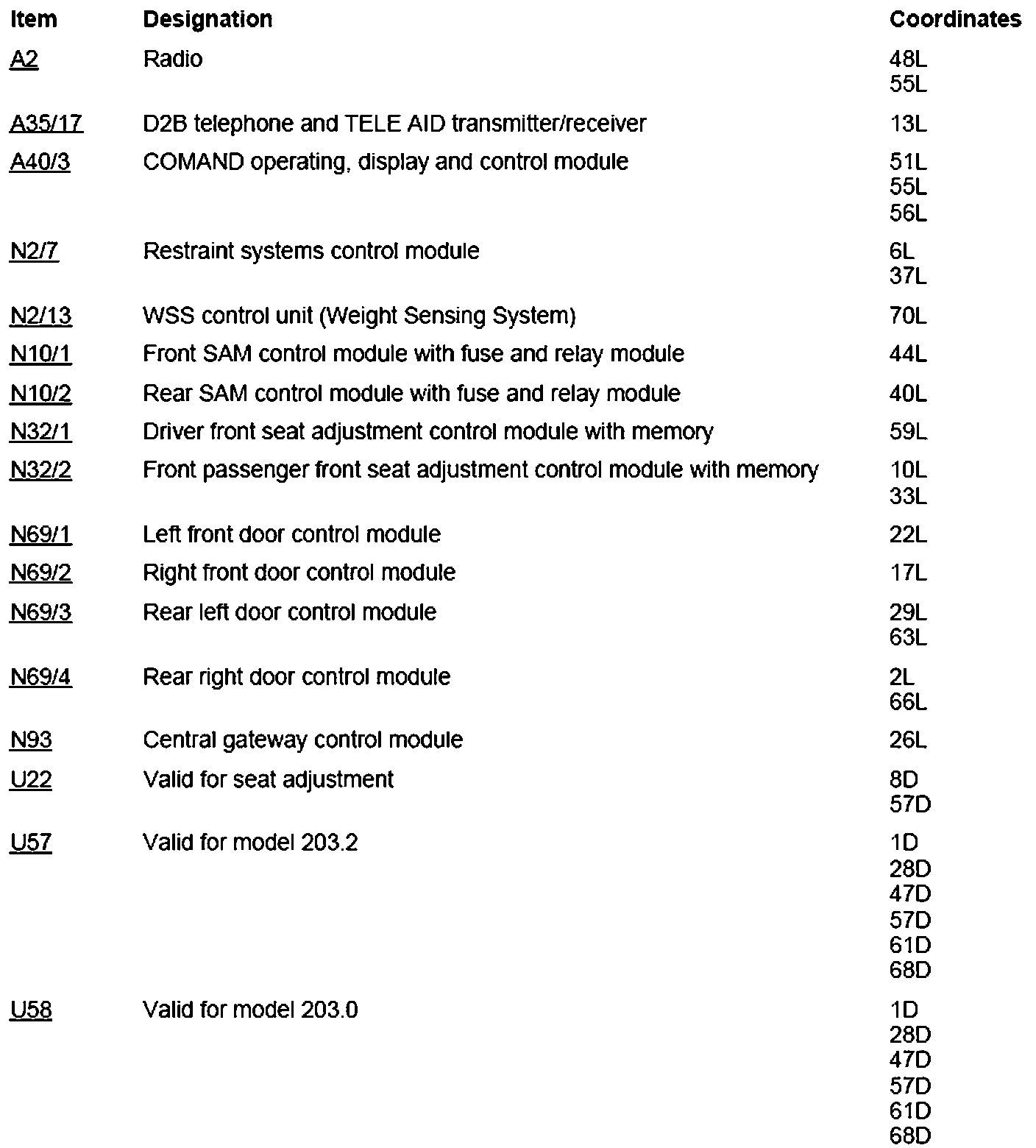

Legend 2 of 2

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
