AR91.10-P-1200PB Remove/Install Front Seat Frame Trim Panels
AR91.10-P-1200PB Remove/Install Front Seat Frame Trim Panels
AR91.10-P-1200PB Remove/Install Front Seat
Frame
Trim Panels

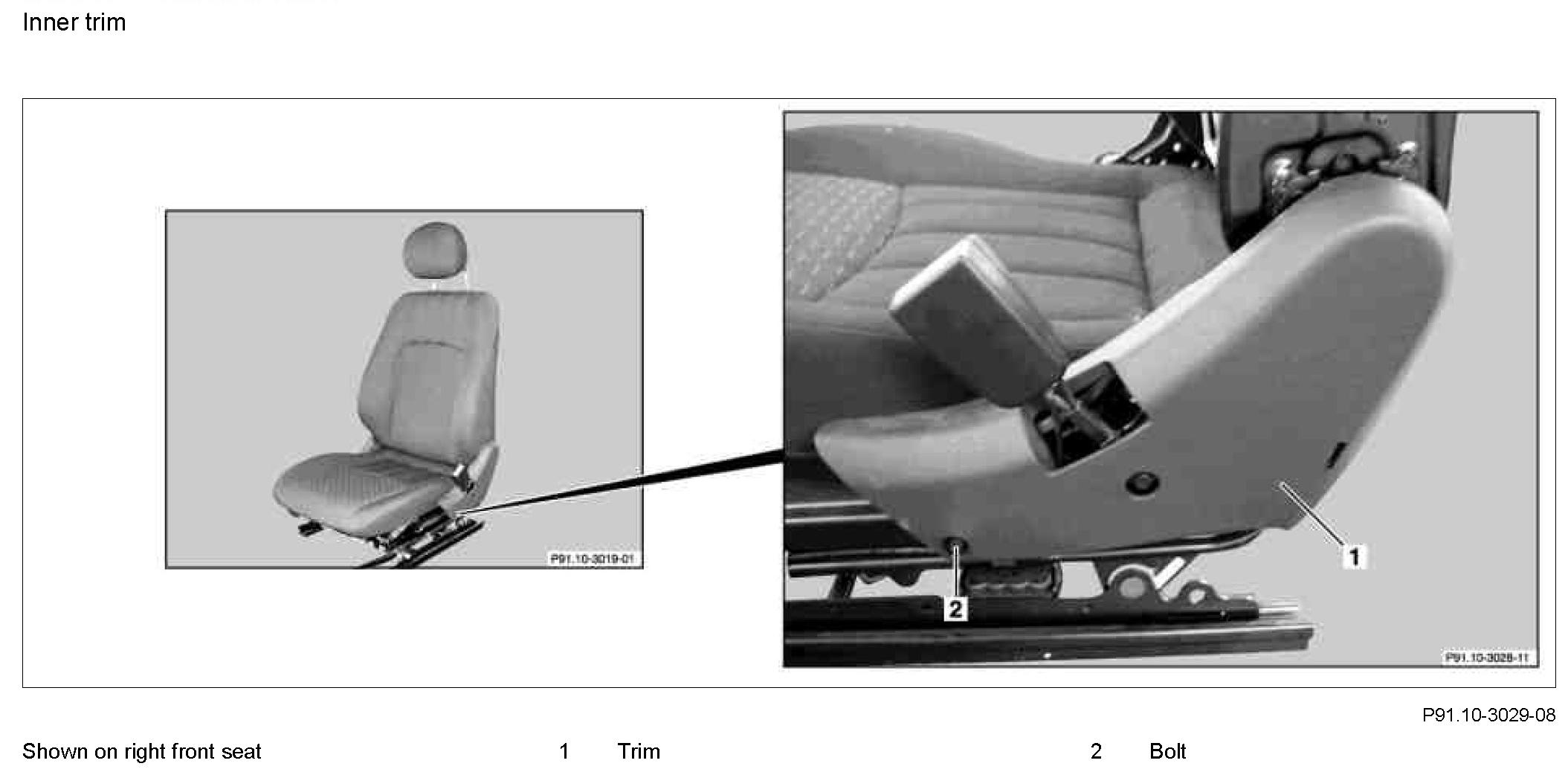

- Inner trim
Component Identification:

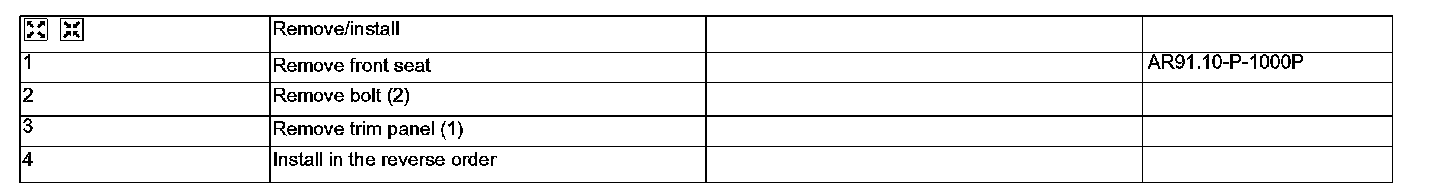

Steps 1 - 4:
