GF91.16-P-4101PP Switch For Retractable Rear Head Restraints, Location/Task/Design/Function



GF91.16-P-4101PP Switch For Retractable Rear Head Restraints, Location/Task/Design/Function

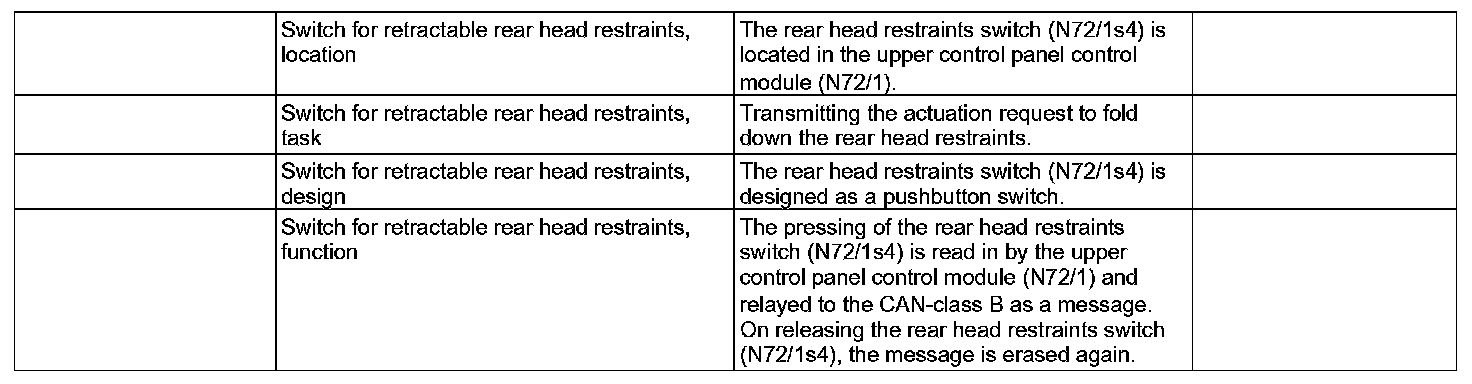

Component Identification:
