Passenger Seat Control Module PE91.29-U-2105FB

Front Passenger-Side Seat Control Module PE91.29-U-2105FB

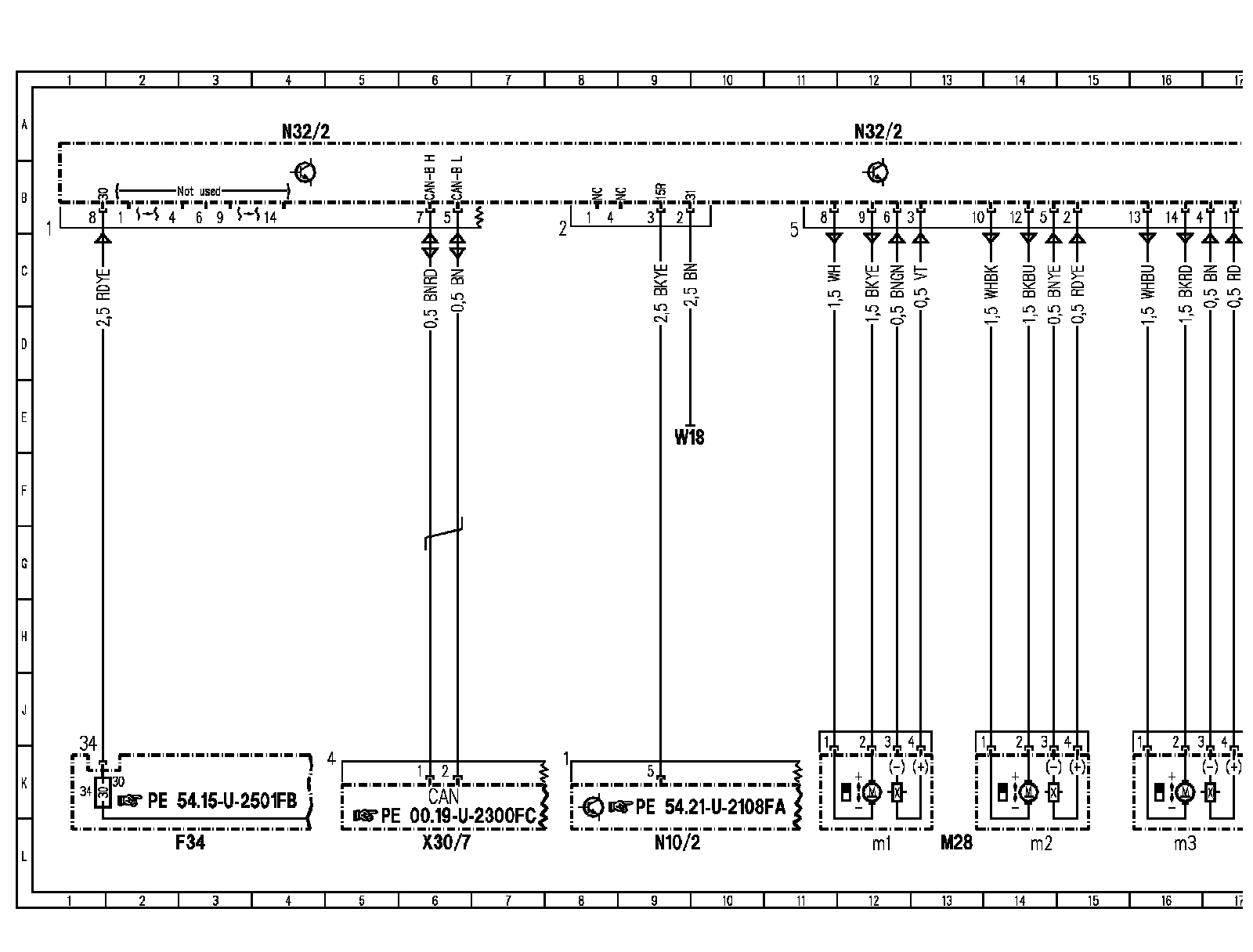

Wiring Diagram, Part 1:

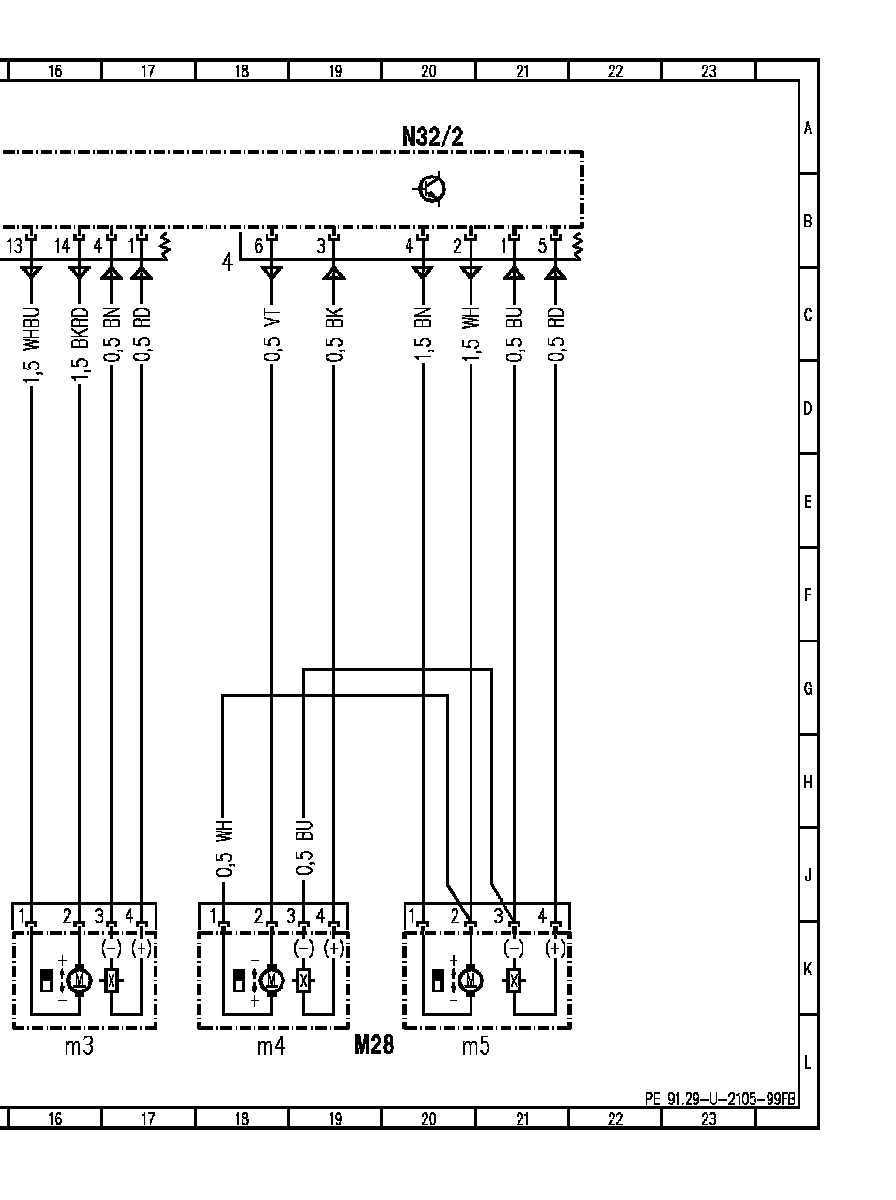

Wiring Diagram, Part 2:

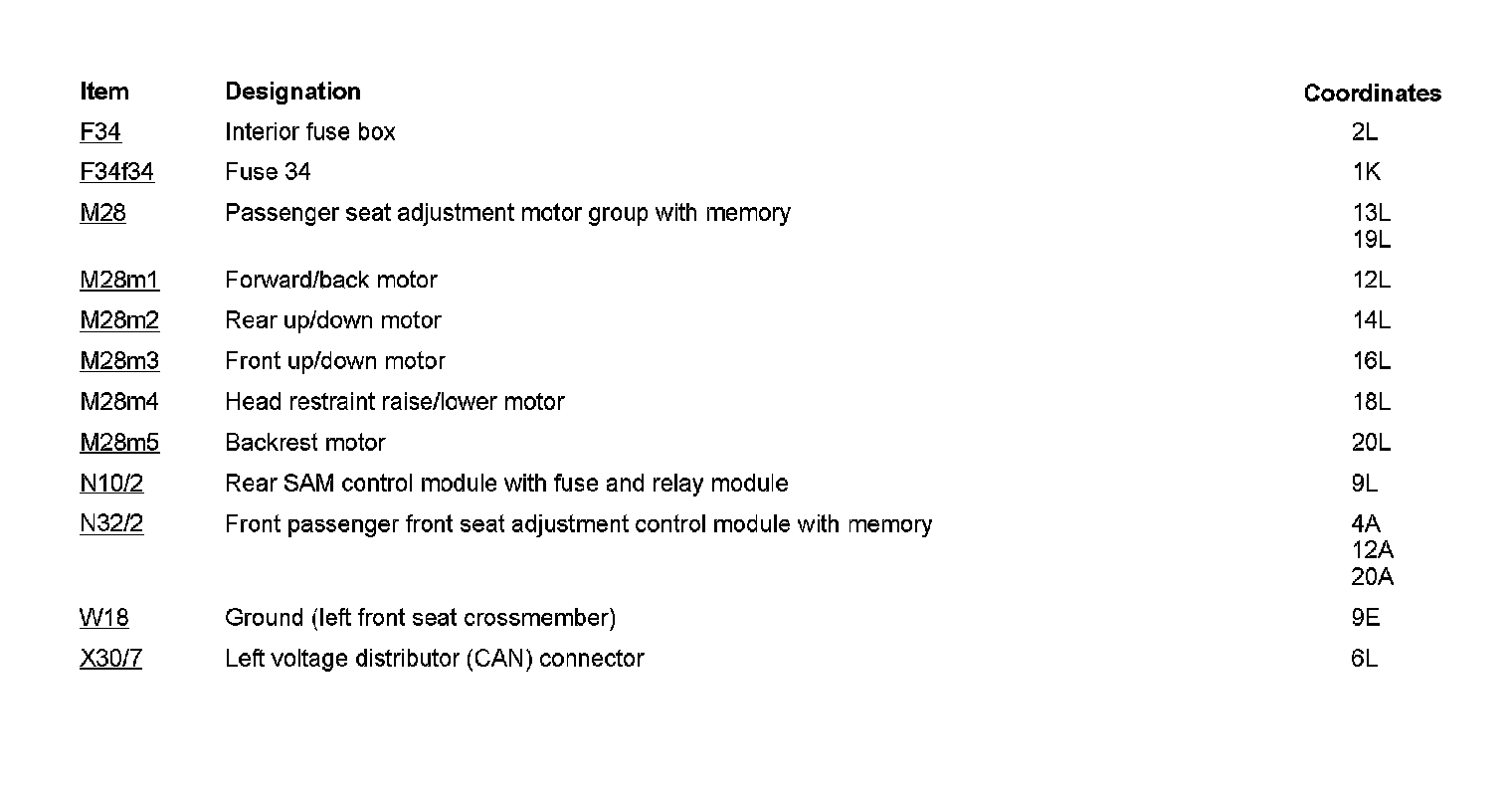

Component Description/Coordinates, F34 To X30/7:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
