Roof and Associated Components: Service and Repair
AR88.85-P-2100P Removing and Installing Water Deflector
- except CODE (413) Panorama sliding roof

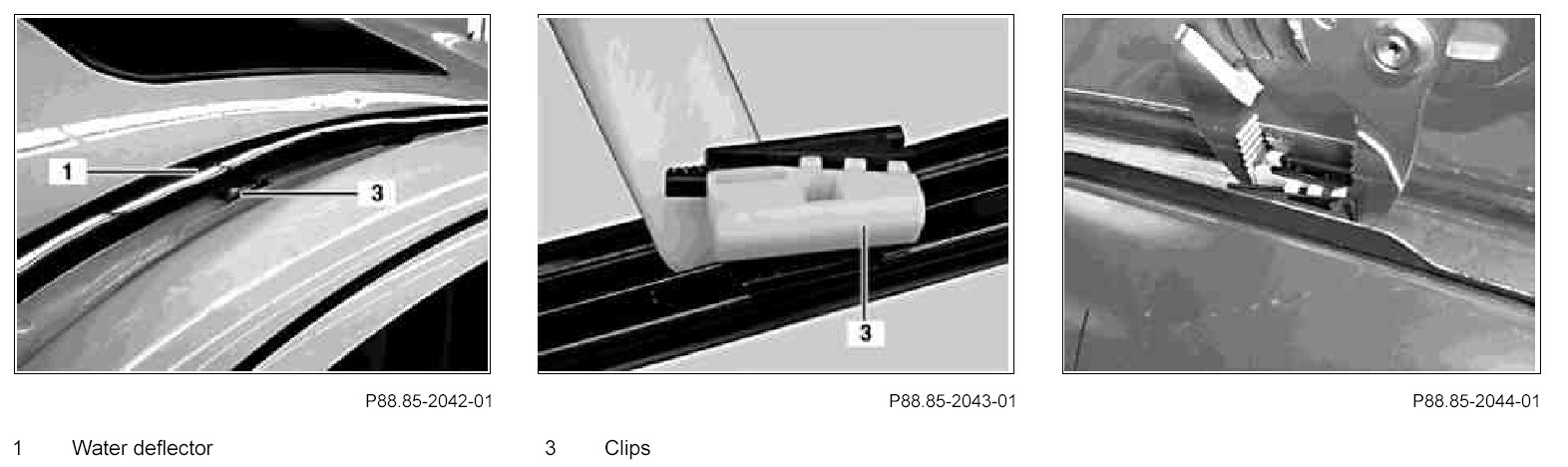

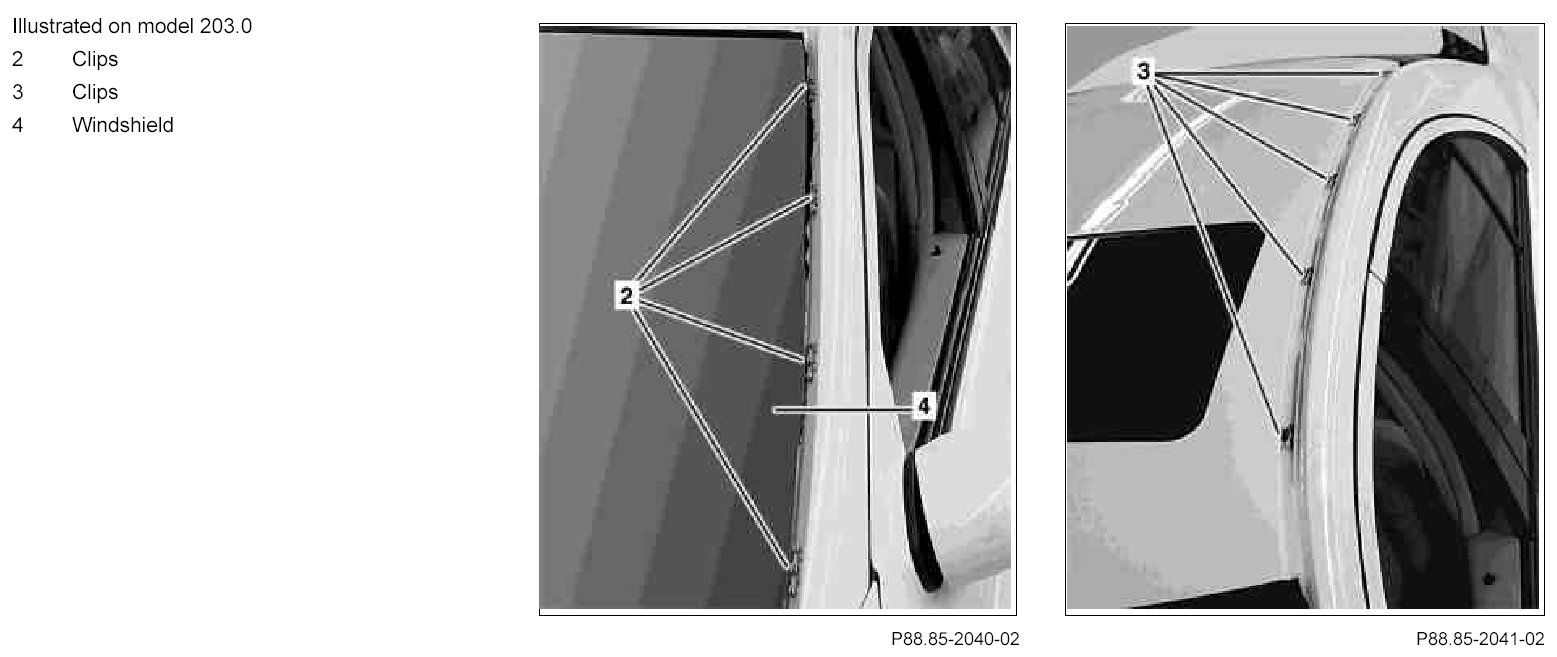

Component Identification:
Component Identification:
Component Identification:

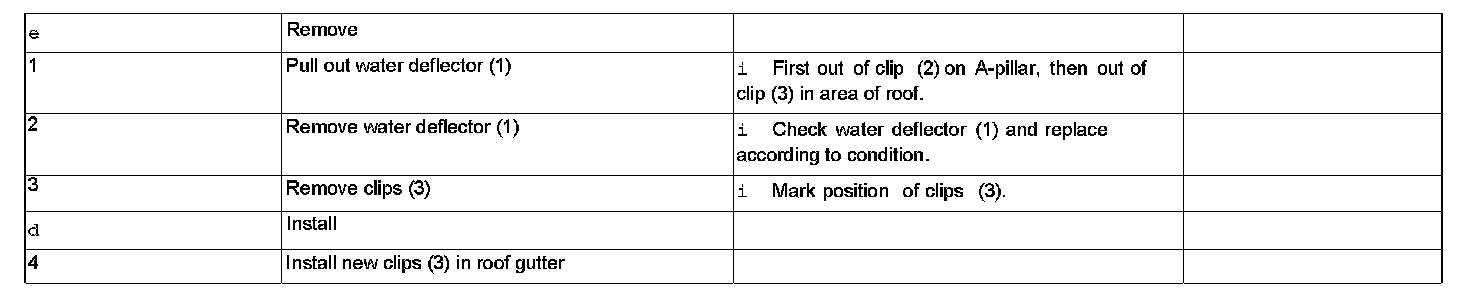

Steps 1 - 4:

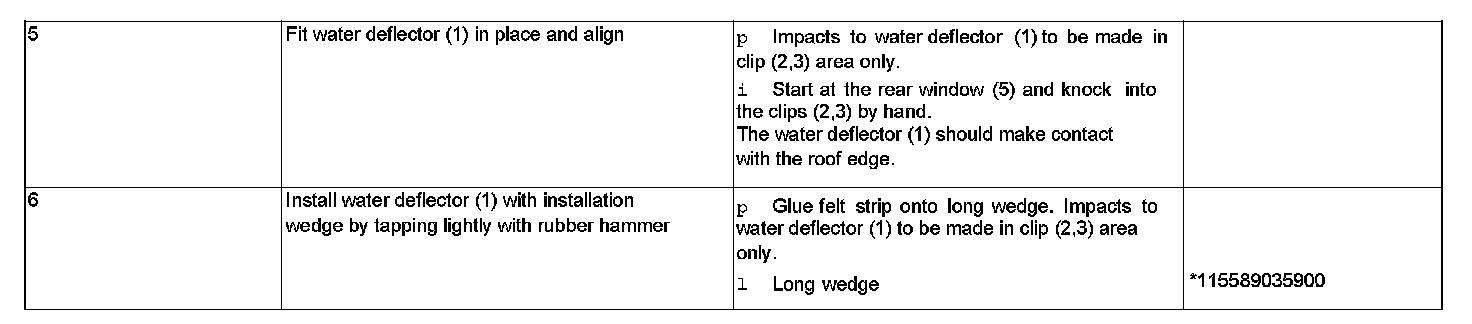

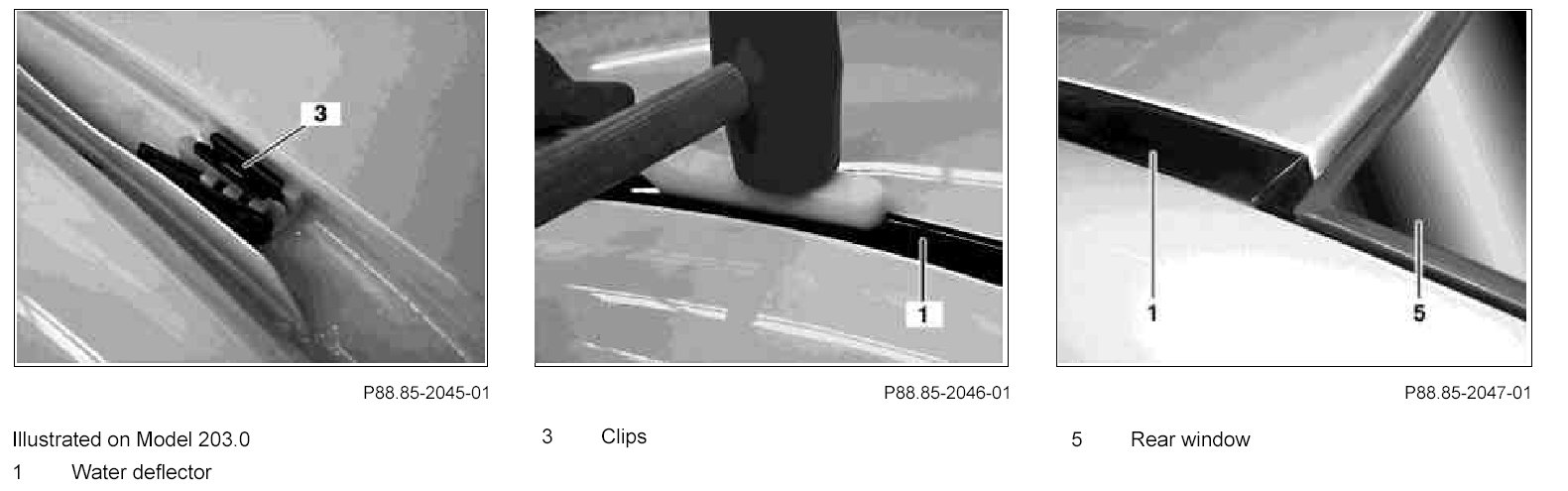

Steps 5 - 6:

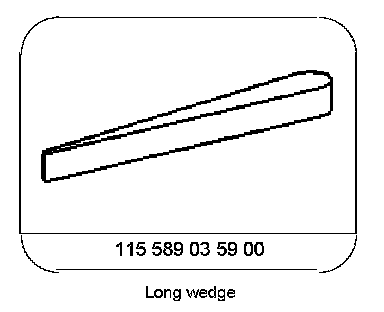

Special Tools:
