Power Seat Control Module: Service and Repair
AR91.29-P-0008P Remove/Install Seat Adjustment Control Unit

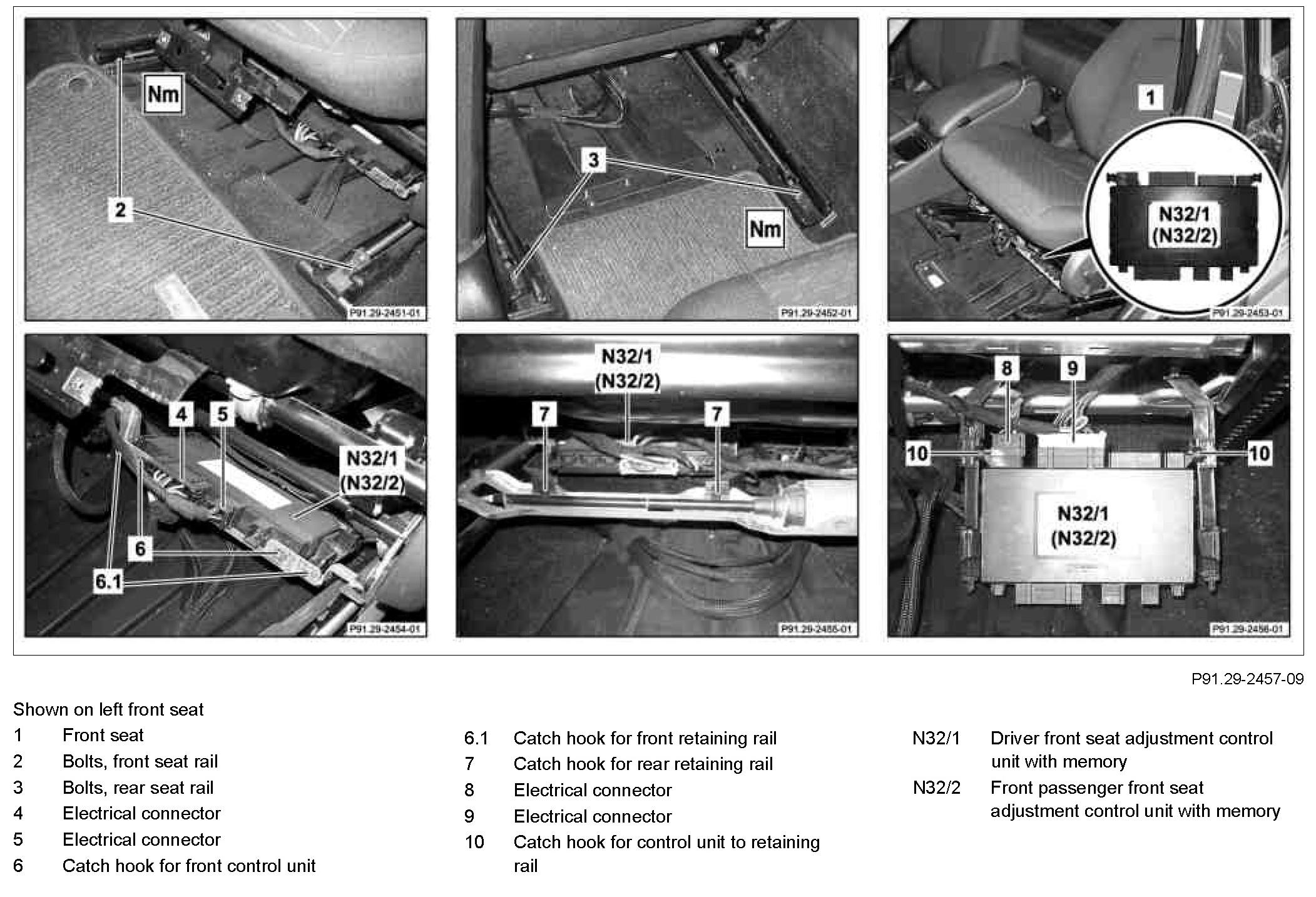

Component Identification:

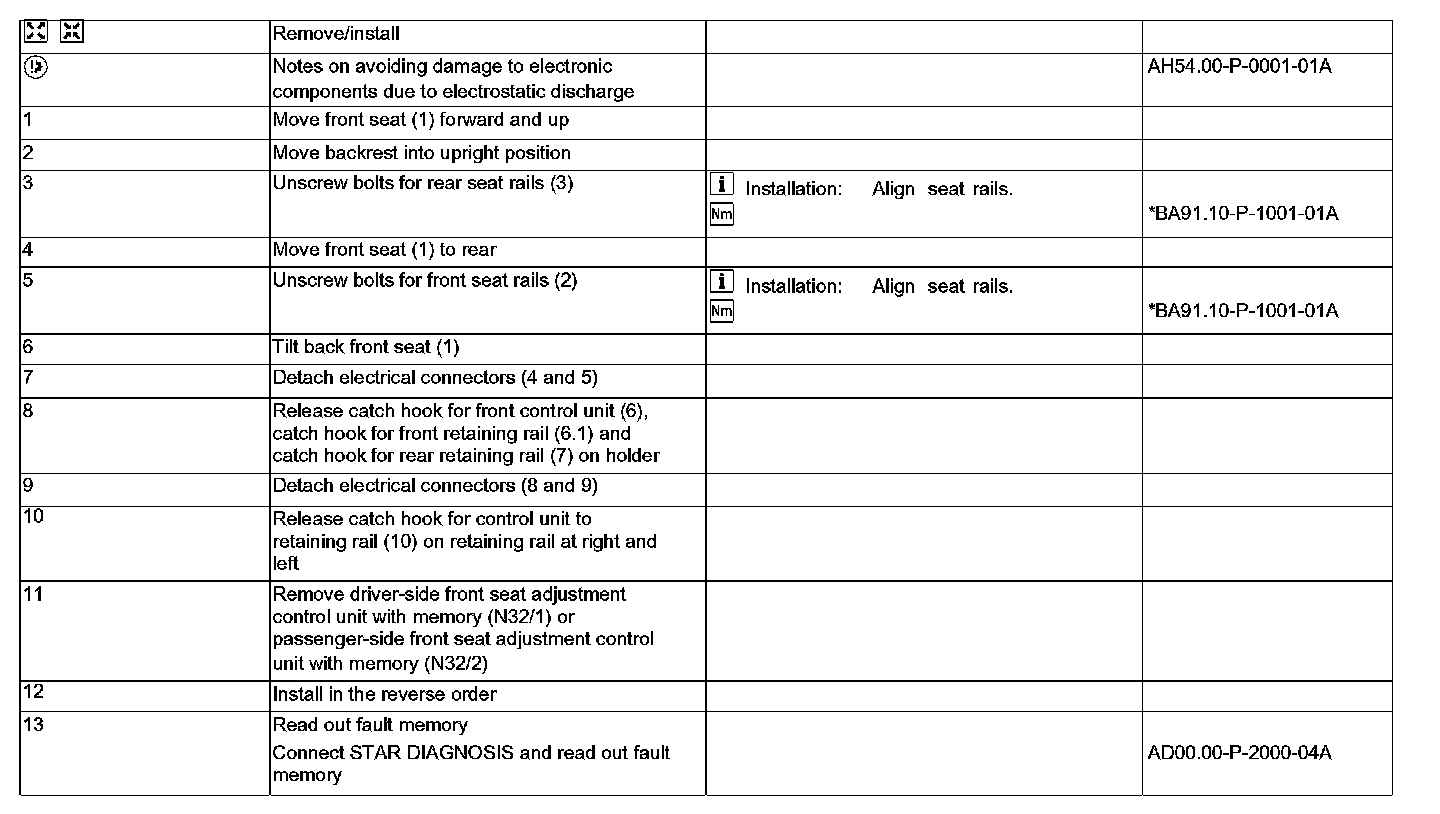

Steps 1 - 13:

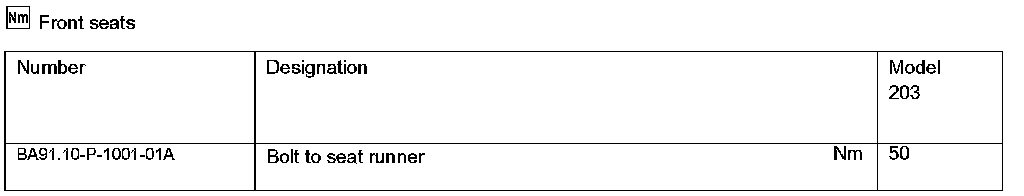

Front Seats:
