AR72.29-P-1000P Remove/Install Front Door Control Module

AR72.29-P-1000P Remove/Install Front Door Control Module

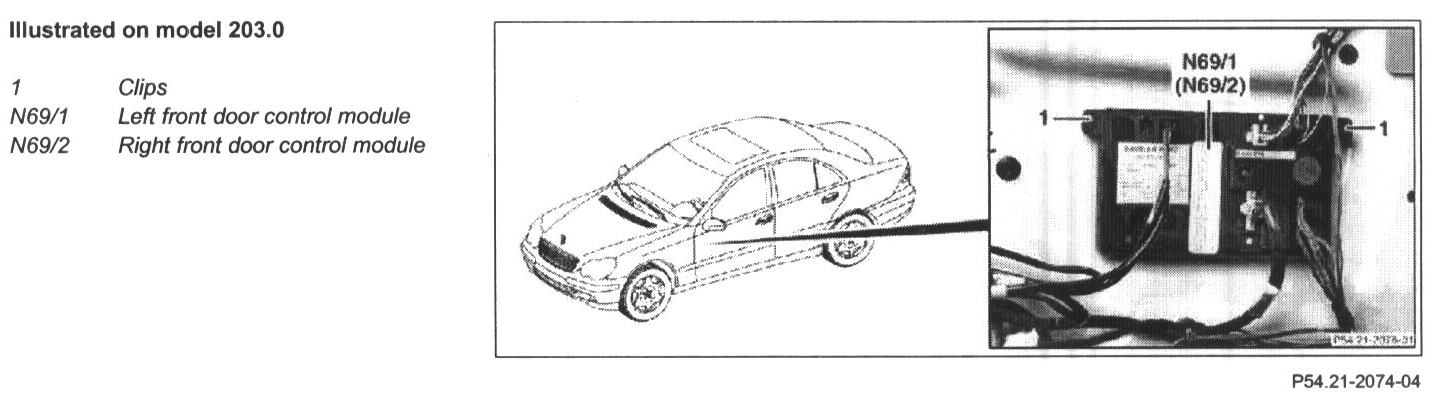

Illustrated On Model 203.0:

1 Remove door liner from front door
2 Pull off door foil in assembly area
3 Disconnect door control module connectors

NOTE: On left front door control module (N69/1), right front door control module (N69/2).

4 Press together clips (1) and take out door control module

NOTE: Installation: Observe retaining lug on left front door control module (N69/1) and right front door control module (N69/2).

5 Install in the reverse order
