GF80.20-P-3005PP Locking With Transmitter Key, Function

GF80.20-P-3005PP Locking With Transmitter Key, Function

MODEL 203.0 /2 /7 up to Model Year 8

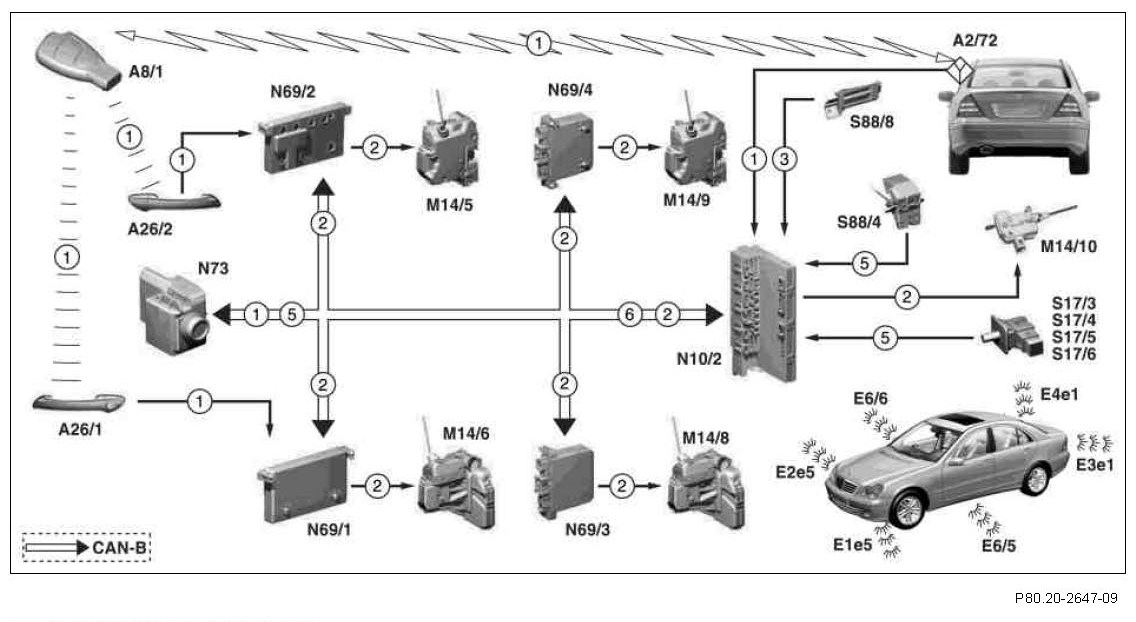

Shown on model 203.0 Left-hand drive vehicle
1 "Lock" request
2 "Lock" actuation
3 Outer actuation (inhibited)
5 Status of door and trunk lid
6 Request for visual feedback
A2/72 Window antenna amplifier module 2
A8/1 Transmitter key
A26/1 Left front IR receiver unit (on left- hand drive vehicles, on right-hand drive vehicles except Japan up to 23.4.04, on Japan up to 31.8.06)
A26/2 Right front IR receiver (on right- hand drive vehicles, on left-hand drive vehicles up to 23.4.04)
E1e5 Left turn signal lamp
E2e5 Right turn signal lamp
E3e1 Left turn signal lamp
E4e1 Right turn signal lamp
E6/5 Left outside mirror turn signal lamp
E6/6 Right outside mirror turn signal lamp
M14/5 Right front door CL [ZV] motor
M14/6 Left front door CL [ZV] motor
M14/8 Left rear door CL motor (not on model 203.7)
M14/9 Right rear door CL motor (not on model 203.7)
M14/10 Fuel filler flap CL [ZV] motor
N10/2 Rear SAM control unit with fuse and relay module
N69/1 Door control unit front left
N69/2 Door control unit front right
N69/3 Left rear door control unit (not on model 203.7)
N69/4 Right rear door control unit (not on model 203.7)
N73 EIS [EZS] control unit
S17/3 Left front door contact switch
S17/4 Right front door contact switch
S17/5 Left rear door contact switch (not on model 203.7)
S17/6 Right rear door contact switch (not model 203.7)
S88/4 Pawl rotary tumbler switch
S88/8 Trunk lid external operation switch
CAN B Controller Area Network bus, class B (interior compartment) (CAN B)

When the "Lock" transmit button on the transmitter key (A8/1) is actuated, it transmits a signal to window antenna, amplifier module 2 (A2/72) via radio. This signal is relayed via the rear SAM control module with fuse and relay module (N10/2) to the EIS control unit (N73).
An infrared signal is transmitted parallel to the radio signal to the left front IR receiver unit (A26/1) or the right front IR receiver unit (A26/2) (precise access required) This signal is read in by the left front door control unit (N69/1) or right front door control unit (N69/2) and is transmitted via the CAN B (CAN B) to the EIS control unit (N73).

The EIS control unit (N73) checks the access authorization of the transmitter key (A8/1). If the access authorization is valid, the EIS control unit (N73) transmits the "Locking" command via the CAN B (CAN B) to the left front door control unit (N69/1), right front door control unit (N69/2),

left rear door control unit (N69/3), right rear door control unit (N69/4) and rear SAM control unit with fuse and relay module (N10/2). These then actuate the:
- right front door CL motor (M14/5),
- left front door CL motor (M14/6),
- left rear door CL motor (M14/8),
- right rear door CL motor (M14/9) and
- fuel filler flap CL motor (M14/10)
to lock the vehicle.

The opening request of the exterior actuation trunk lid switch (S88/8) and trunk lid emergency release switch (only United States of America) is disabled

When the driver door is opened while the vehicle was locked previously, the driver door is not locked An open passenger door is locked

Visual feedback
After locking and when all doors and the trunk lid (only model 203.0), rear-end door (only model 203.2) or tailgate (only model 203.7) are closed, the EIS control unit (N73) transmits the corresponding request to the rear SAM control unit with fuse and relay module (N10/2) via CAN B (CAN B).
The rear SAM control module with fuse and relay module (N10/2) actuates, as "turn signal master", the CL turn signaling

The
- left turn signal lamp (E1e5) and
- right turn signal lamp (E2e5)
are actuated by the front SAM control module with fuse and relay module; the
- left turn signal lamp (E3e1) and
- right turn signal lamp (E4e1)
by the rear SAM control module with fuse and relay module (N10/2); the
- left outside mirror turn signal lamp (E6/5)
by the left front door control unit (N69/1) and the
- right outside mirror turn signal lamp (E6/6)

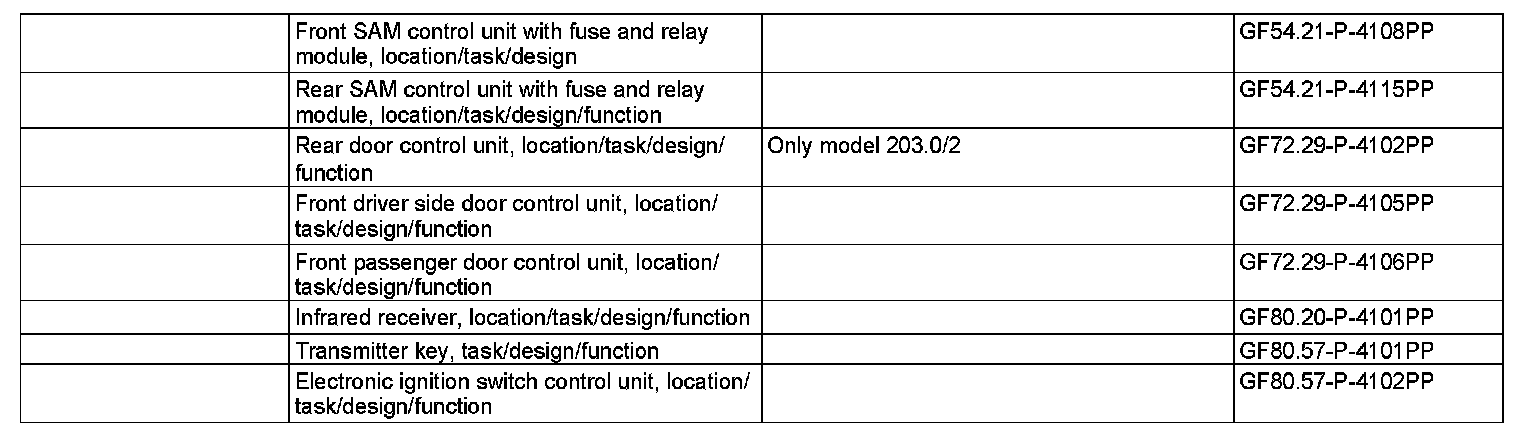

by the right front door control unit (N69/2) are actuated three times each
