AR68.20-P-2350P Remove/Install Cover on Center Console

AR68.20-P-2350P Remove/Install Cover on Center Console

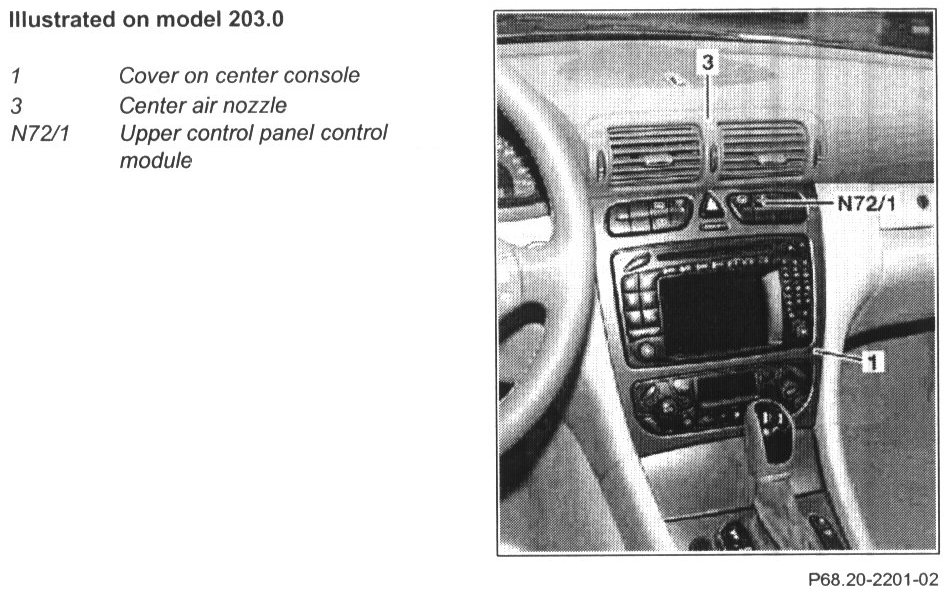

Illustrated On Model 203.0:

1 Remove center air nozzle (3)
2 Remove ashtray at front of center console
3 Open locks (2) in ashtray housing tunnel
4 Remove cover from center console (1)
5 Disconnect overhead control panel control module (N72/1) connectors at rear
6.1 Unlock connectors for heater push button control module (N18) from rear, disconnect
6.2 Disconnect AAC pushbutton control module (N22) from rear
6.3 Unlock AAC convenience pushbutton control module (N22/7) at rear, disconnect
7 Remove cover from center console (1)
8 Install in the reverse order
