AR31.10-P-8000P Remove/Install Trailer Hitch



AR31.10-P-8000P Remove/Install Trailer Hitch
- with CODE (550) Trailer hitch
- except CODE (772) AMG styling package
- except CODE (950) AMG sport package


Component Identification:

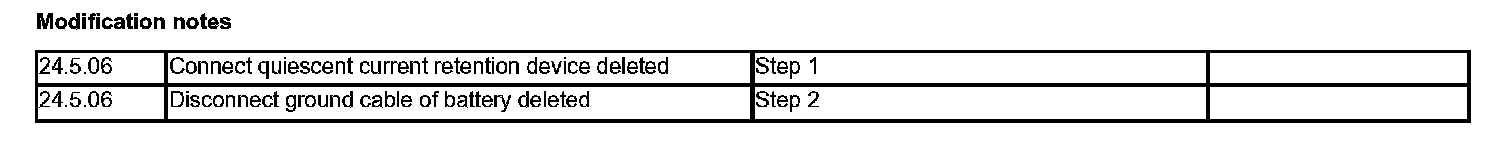

Modification Notes:

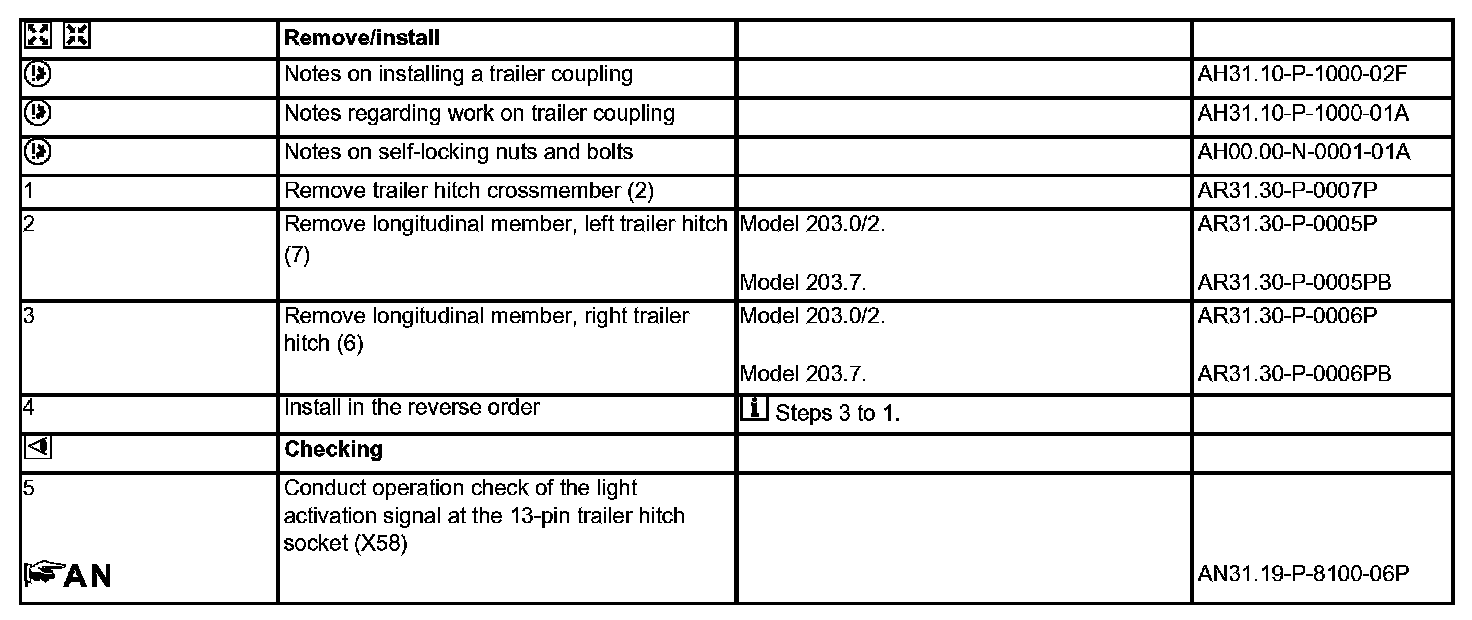

Steps 1 - 5:
