Front Fender: Service and Repair
AR88.10-P-1000P Remove/Install Front Fenders
Component Identification:
Component Identification:
Component Identification:

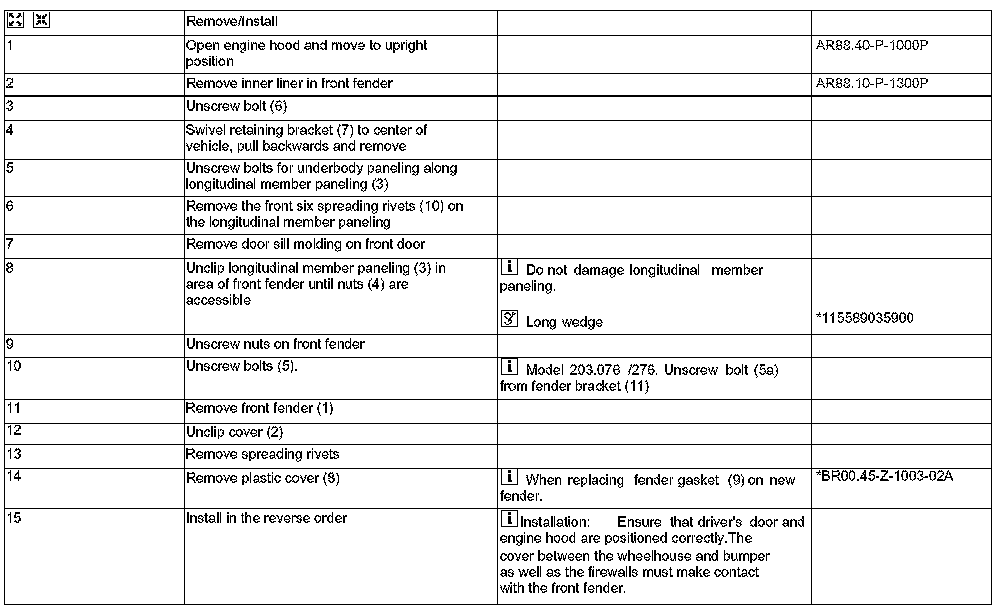

Steps 1 - 15:

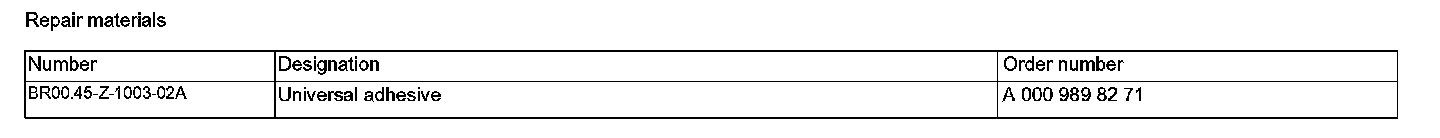

Repair Materials:

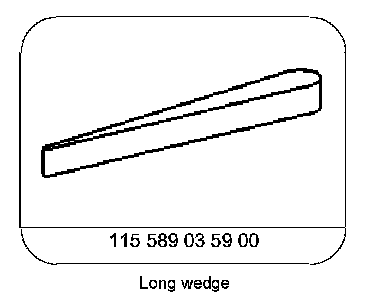

Special Tools:
