AN88.50-P-0001-01P Installing Auxiliary Trunk Lid Lock

AN88.50-P-0001-01P Installing Auxiliary Trunk Lid Lock

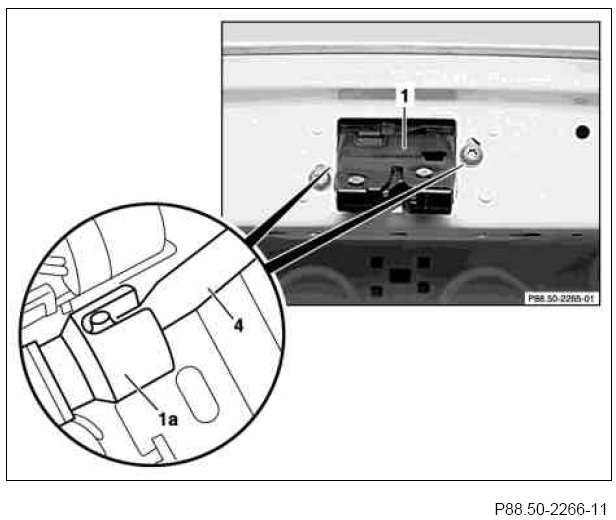

1. Close rotary tumbler in trunk lid lock (1)
2. Insert left and right control rods (4) into driver on trunk lid lock (1)







1 Trunk lid lock
1a Driver
4 Control rod







4 Control rod

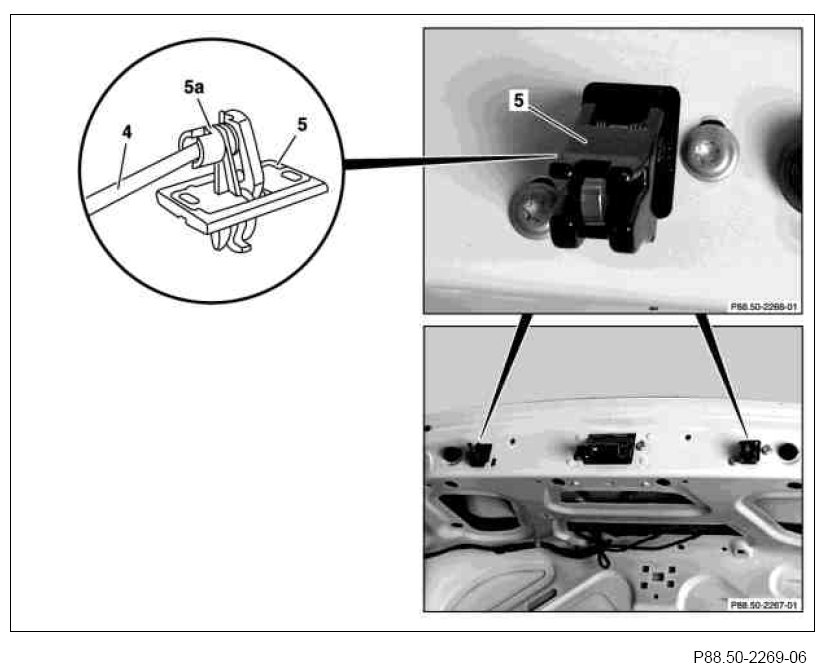

5 Trunk lid auxiliary lock
5a Driver


3. Close rotary tumbler in trunk lid auxiliary lock (5).
On left and right.

4. Insert trunk lid auxiliary lock (5) into trunk lid and install control rod (4) in driver (5a).
On left and right.

5. Tighten screws on trunk lid auxiliary lock (5) hand-tight.
On left and right.

6. Actuate pushbutton lock.
All three rotary tumblers should jump from the locked to the unlocked position.

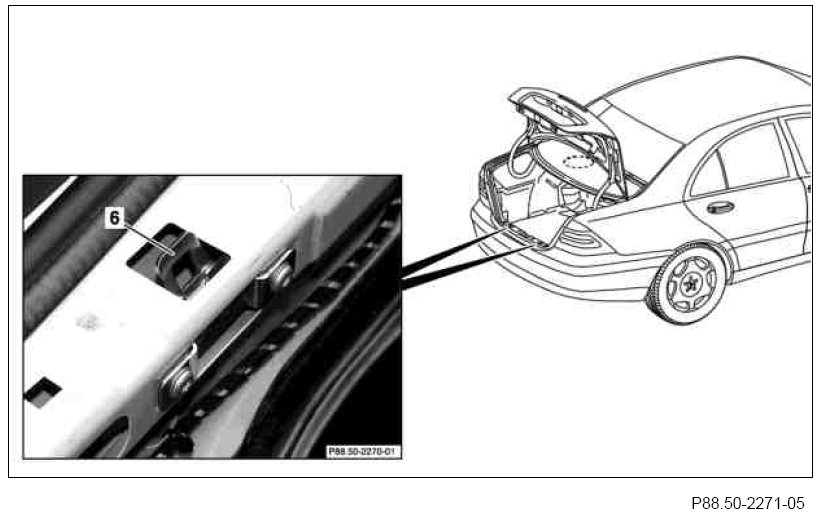

7. Install trunk lid auxiliary lock (6) striker eye with insert cage nut and screws in rear center section.
Tighten screws hand-tight.







6 Trunk lid auxiliary lock striker eye


8. Close trunk lid.
Carefully close, do not slam.
This centers the striker eyes (6) with the locks (5) of the trunk lid auxiliary lock.

9. Open trunk lid.
10. Tighten screws for striker eyes and trunk lid auxiliary locks.

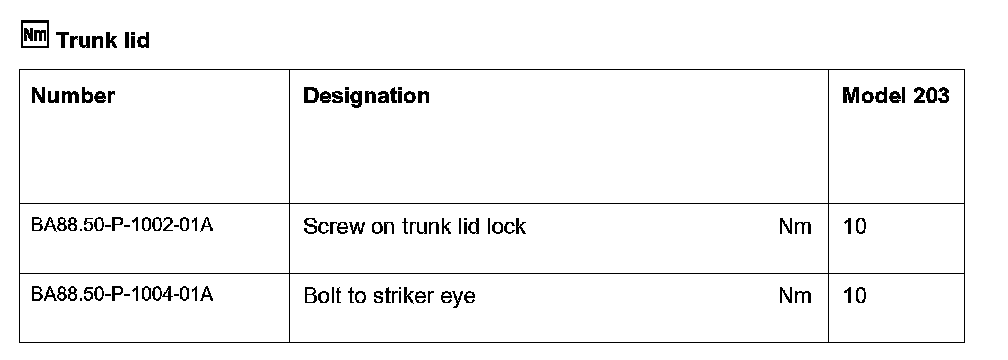

Screw on trunk lid lock
Bolt to striker eye

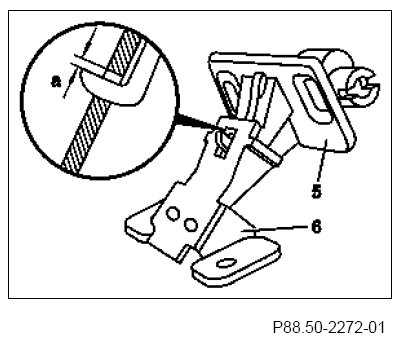

11. Check play of trunk lid auxiliary locks (5).
Play 2-3 mm (dimension a).







5 Trunk lid auxiliary lock
6 Trunk lid auxiliary lock striker eye
a 2-3 mm
