Removal and Replacement
AR88.50-P-5020P Remove/Install and Adjust Trunk Lid Lock and Striker Eye

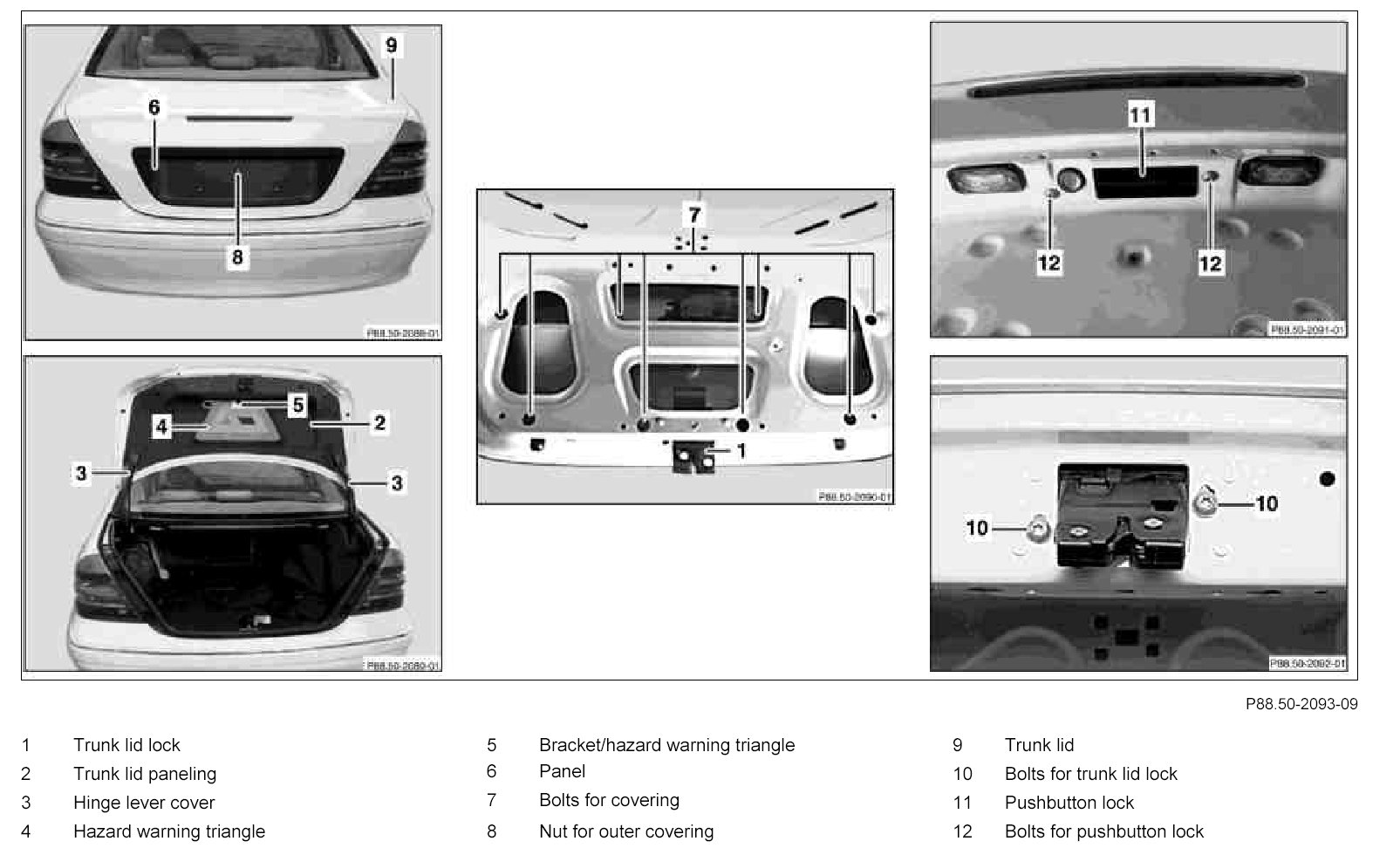

Component Identification:

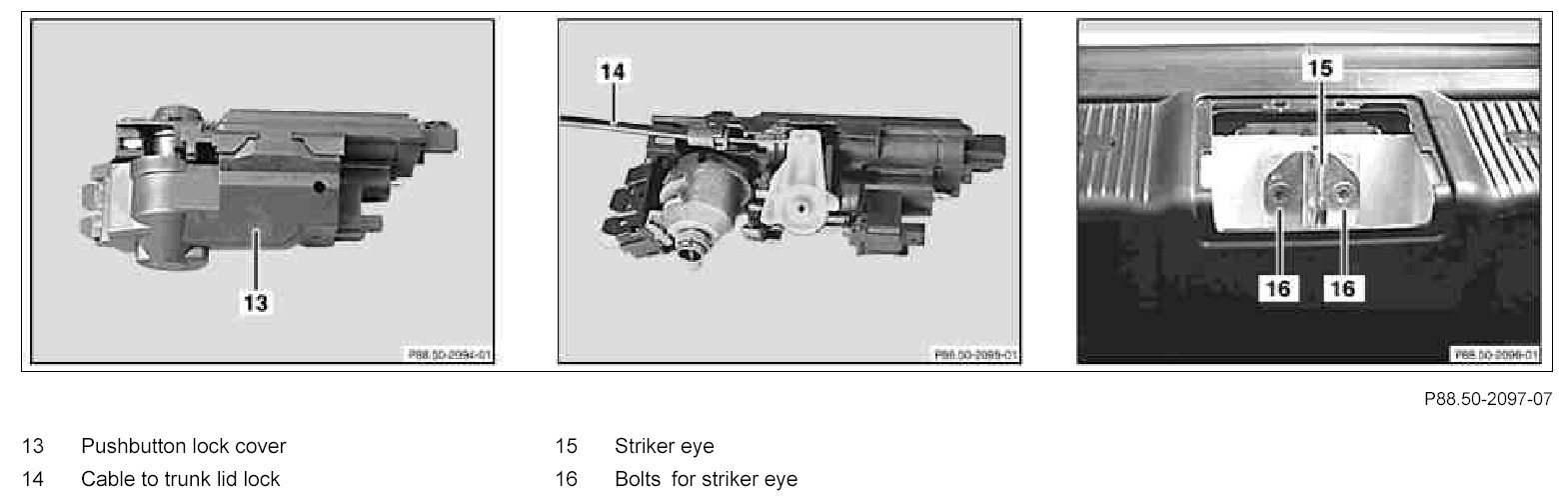

Component Identification:
Steps 1 - 12:

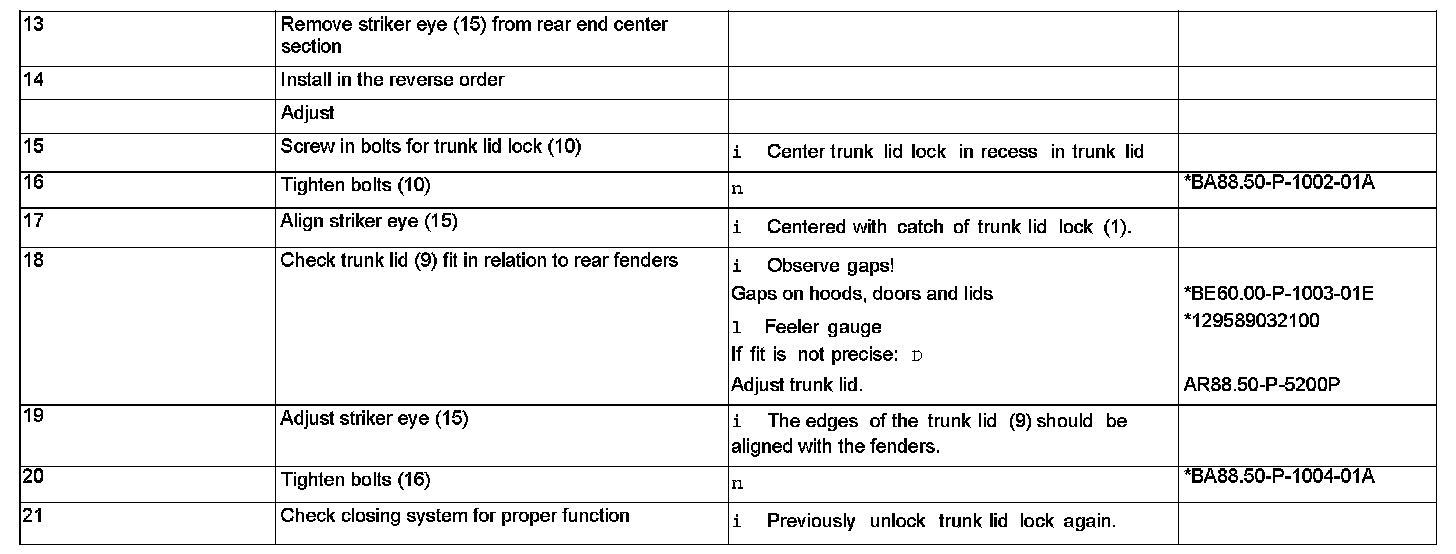

Steps 13 - 21:

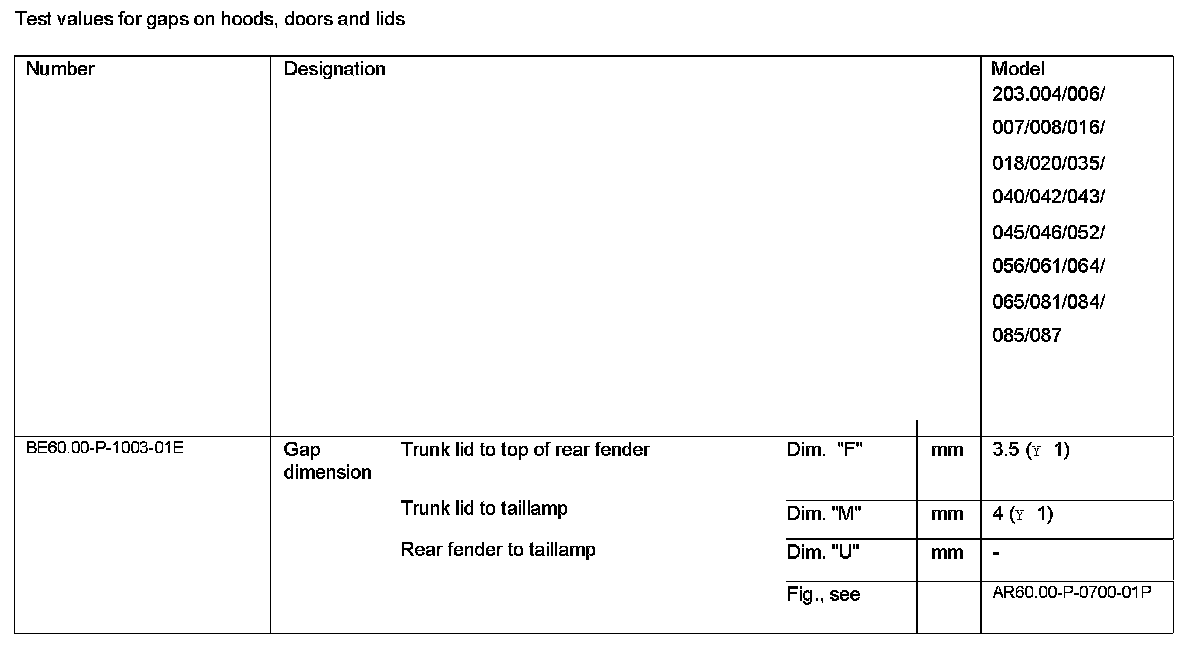

Test Values For Gaps On Hoods, Doors And Lids:

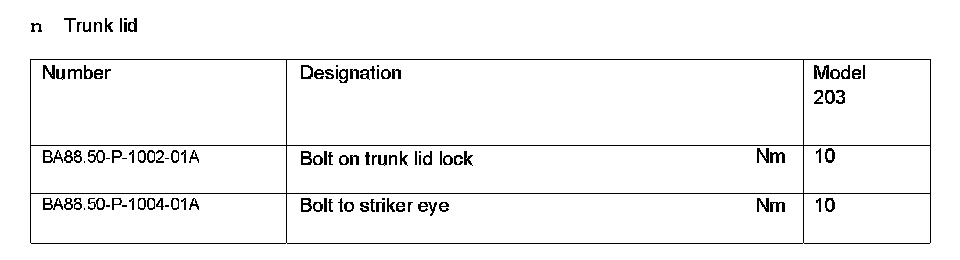

Trunk Lid:

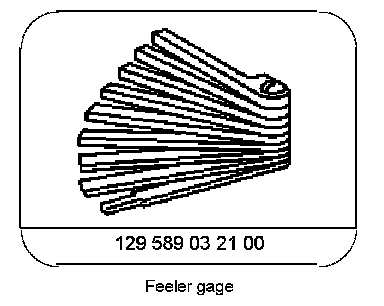

Special Tools:
