AN88.50-P-0001P Retrofitting Trunk Lid Auxiliary Lock

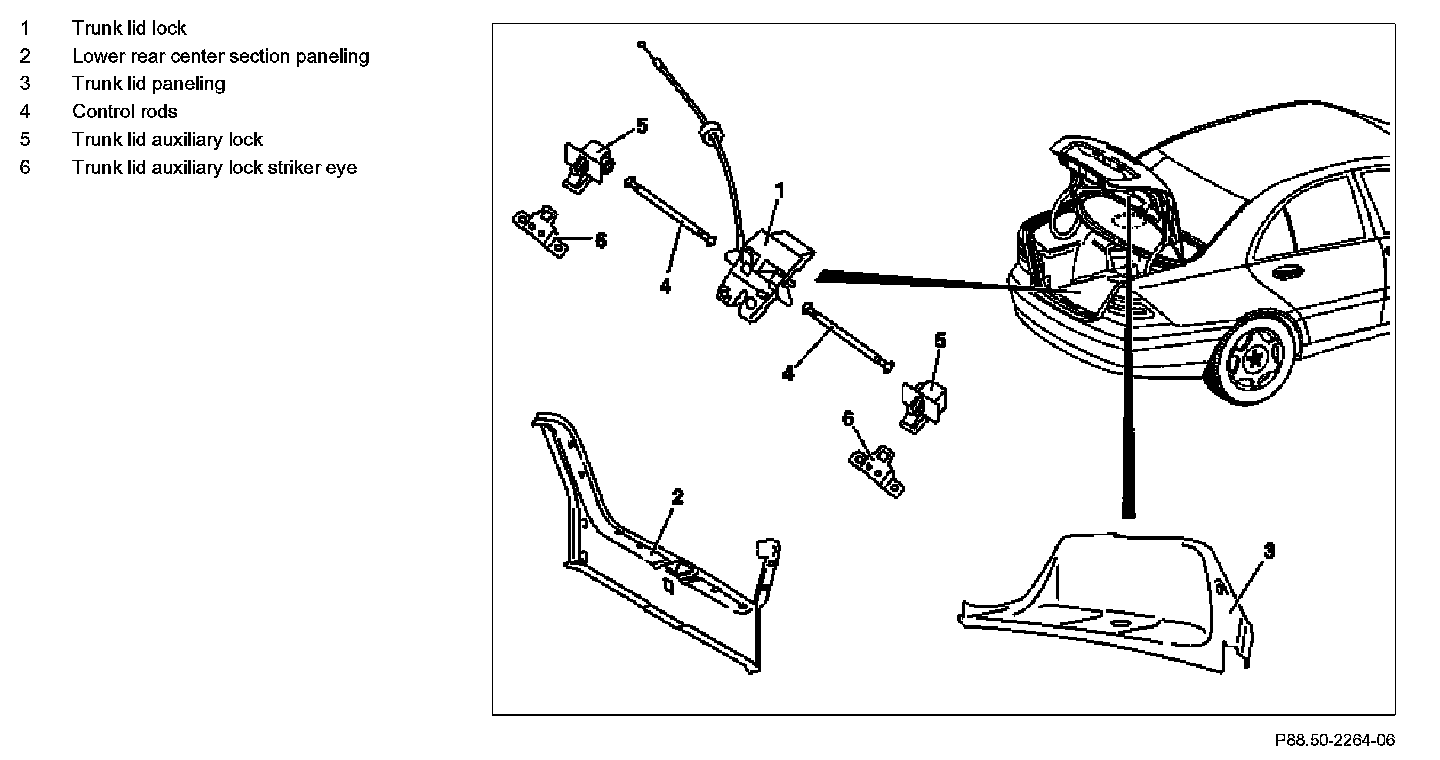

Component Identification:
Steps 1 - 8:

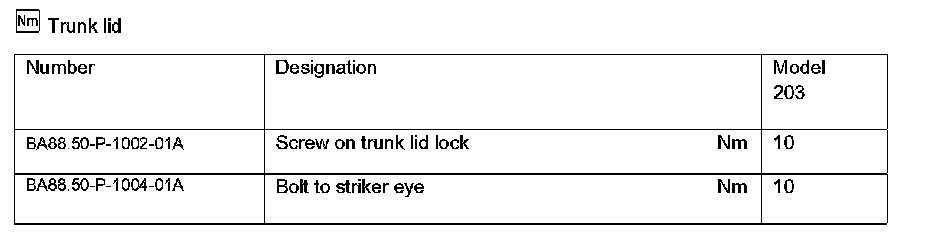

Trunk Lid:

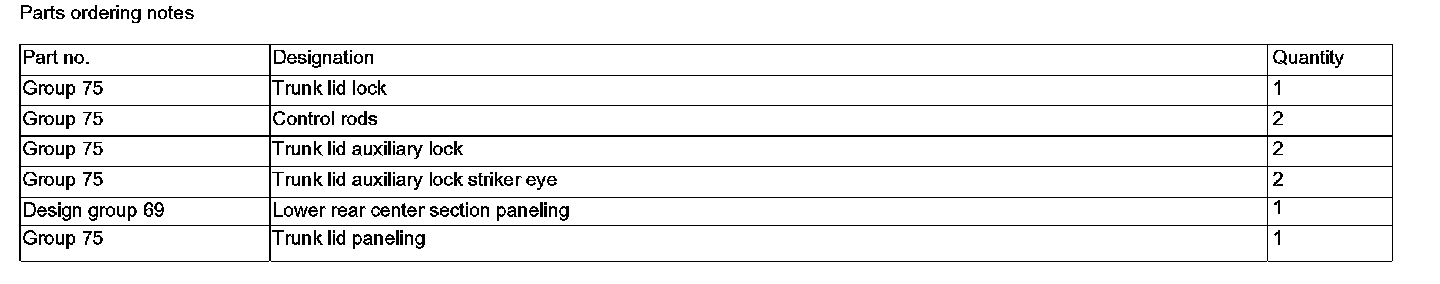

Parts Ordering Notes:
