Trunk / Liftgate Hinge: Service and Repair



AR88.50-P-5120P Remove/Install Hinge Lever For Trunk Lid

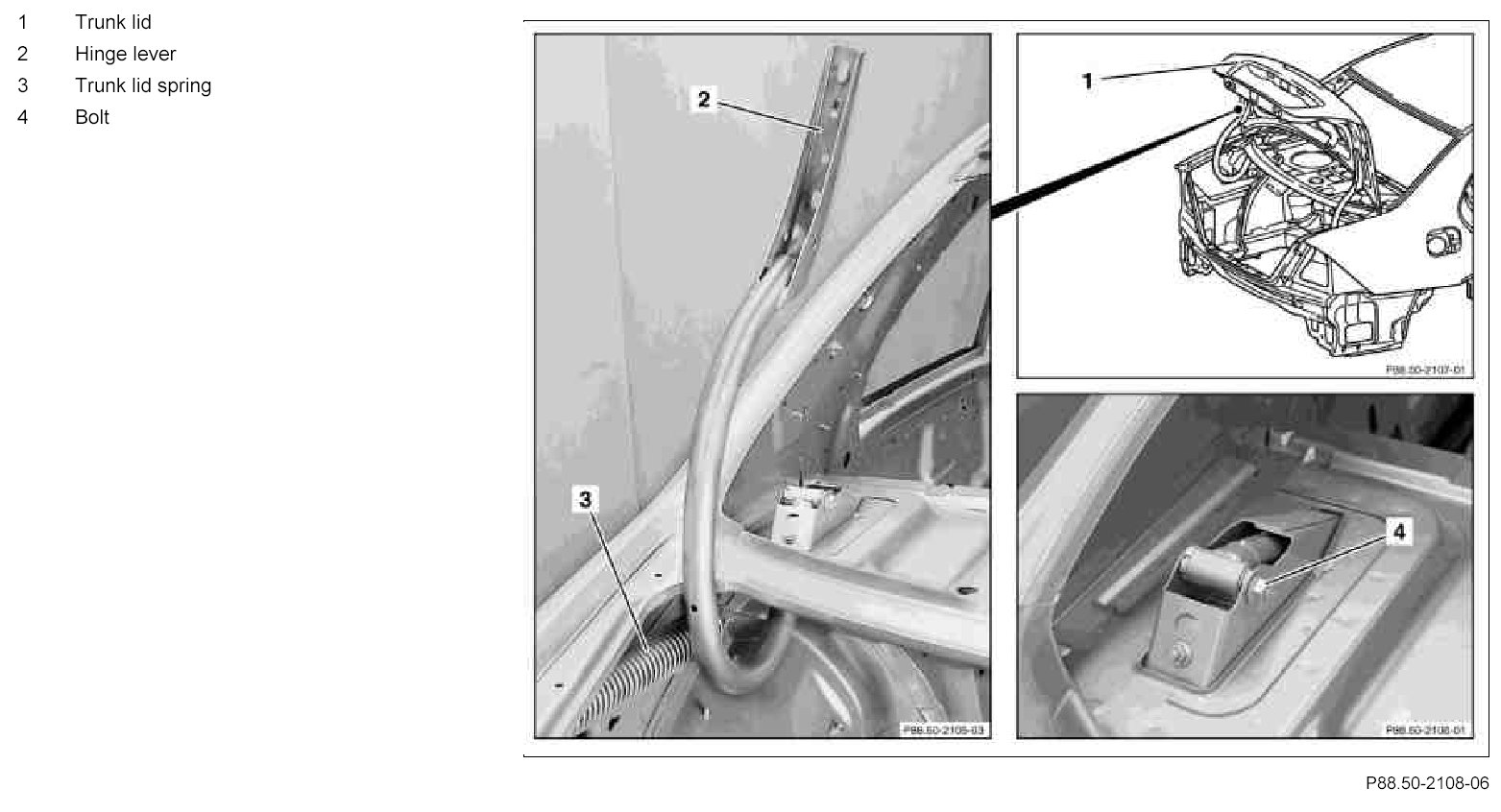

Component Identification:

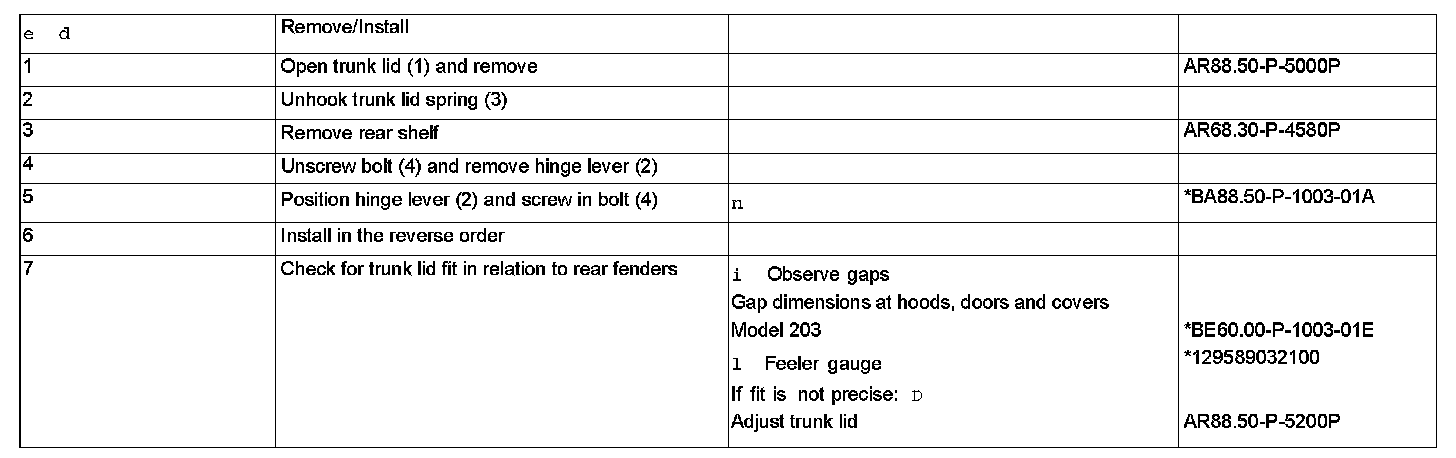

Steps 1 - 7:

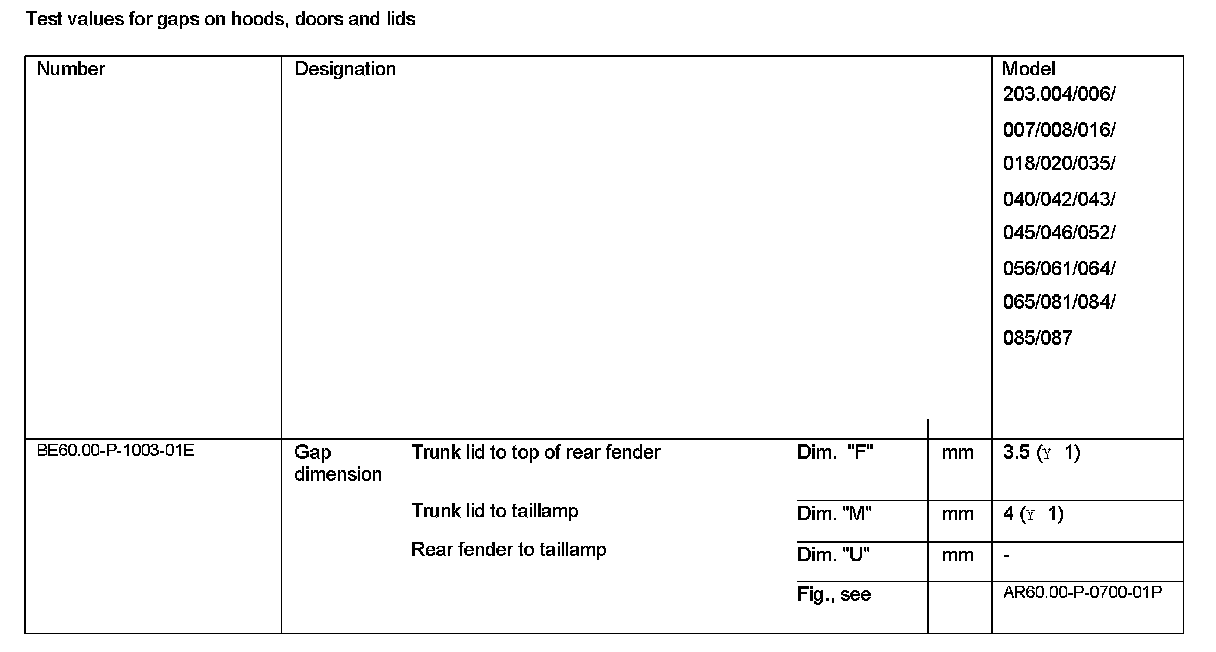

Test Values For Gaps On Hoods, Doors And Lids:

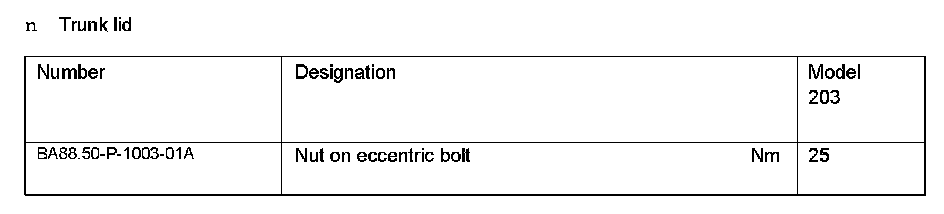

Trunk Lid:




Special Tools:
