Connectors 16, 19, 20 PE54.21-U-2106FC (Sheet 3)

SAM Control Module With Front Fuse and Relay Module (N10/1) - PE54.21-U-2106FC

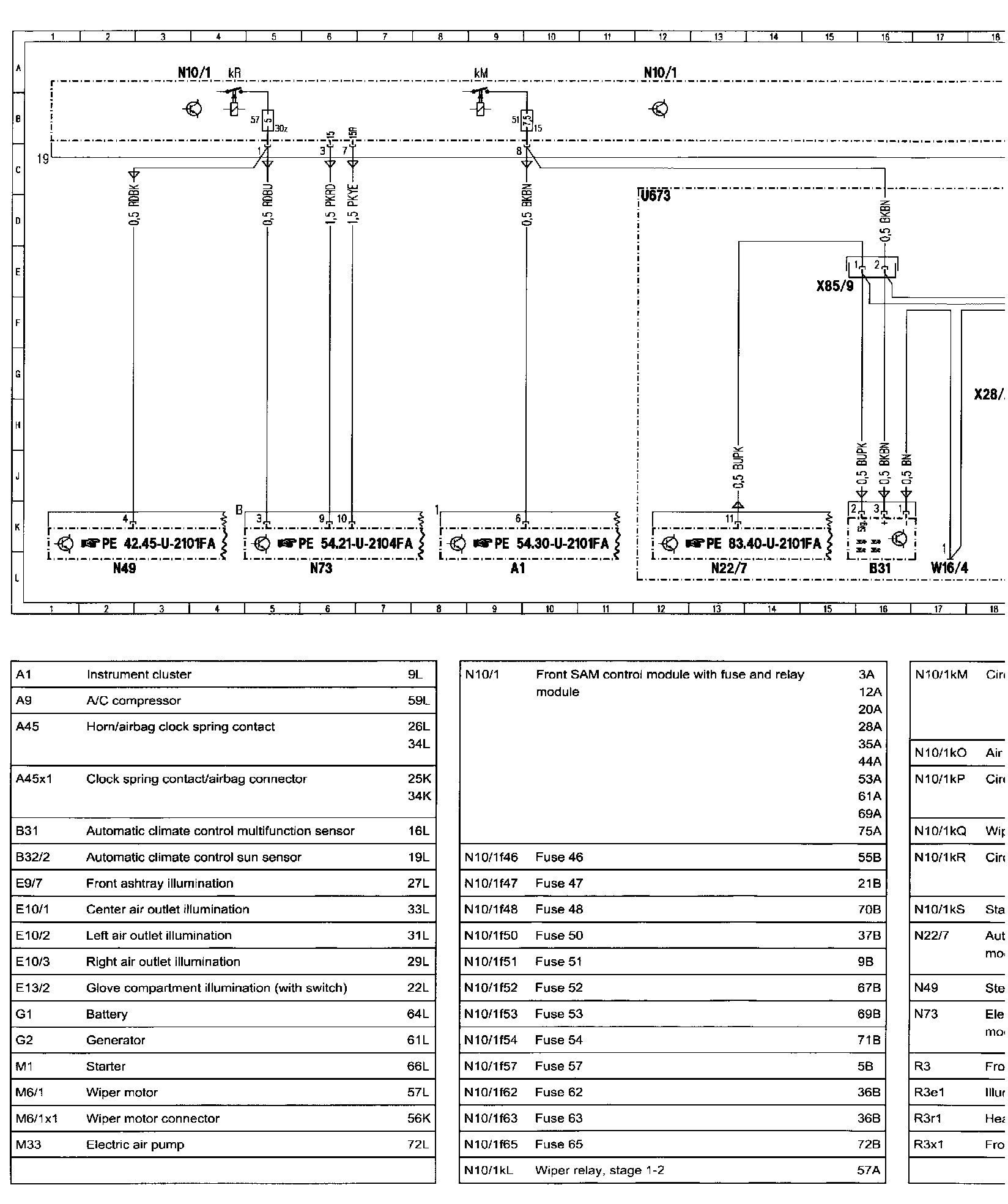

�MwY��wYf�wY3�wYWiring Diagram PE54.21-U-2106FC:

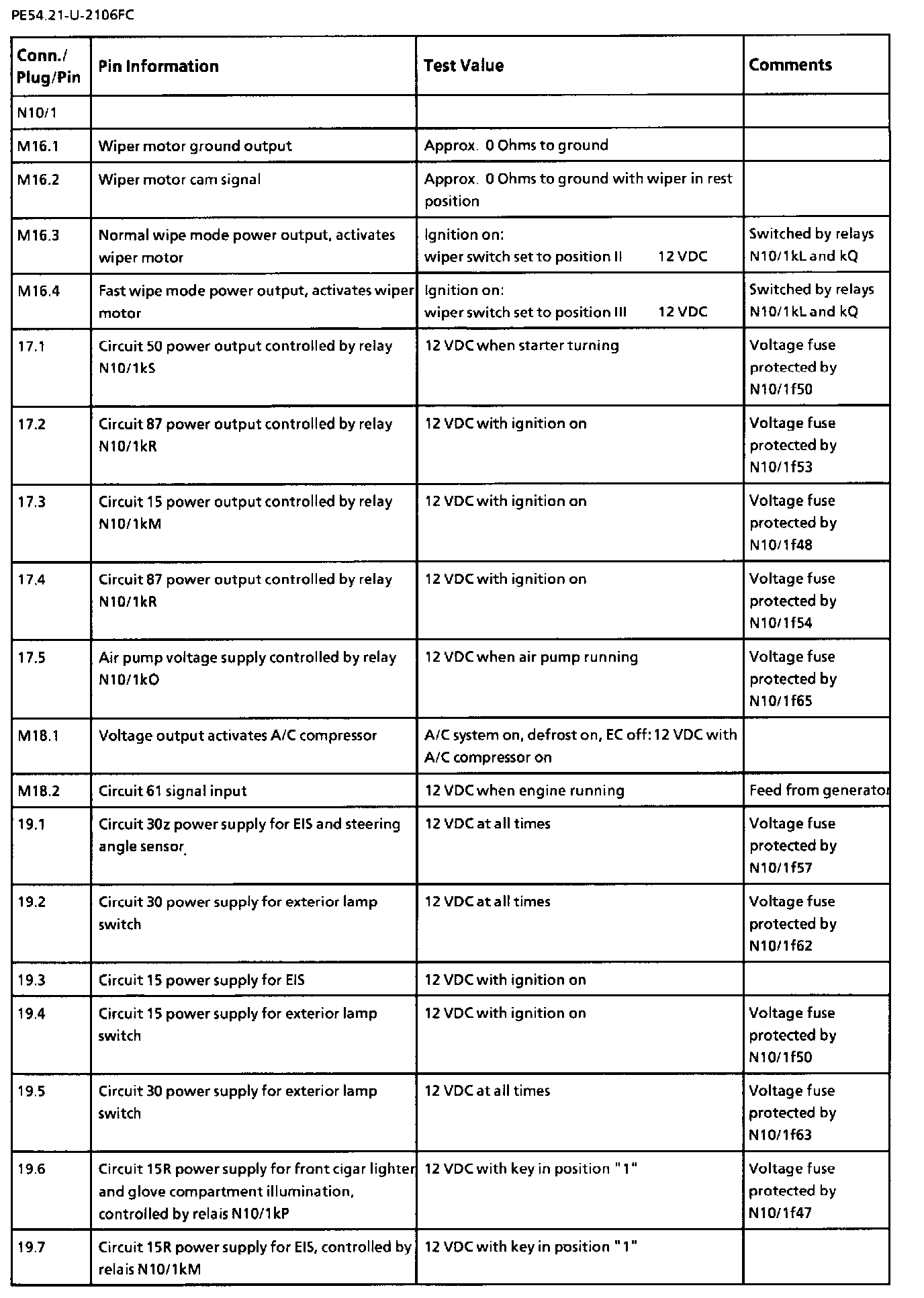

Pin Information, Part 1:

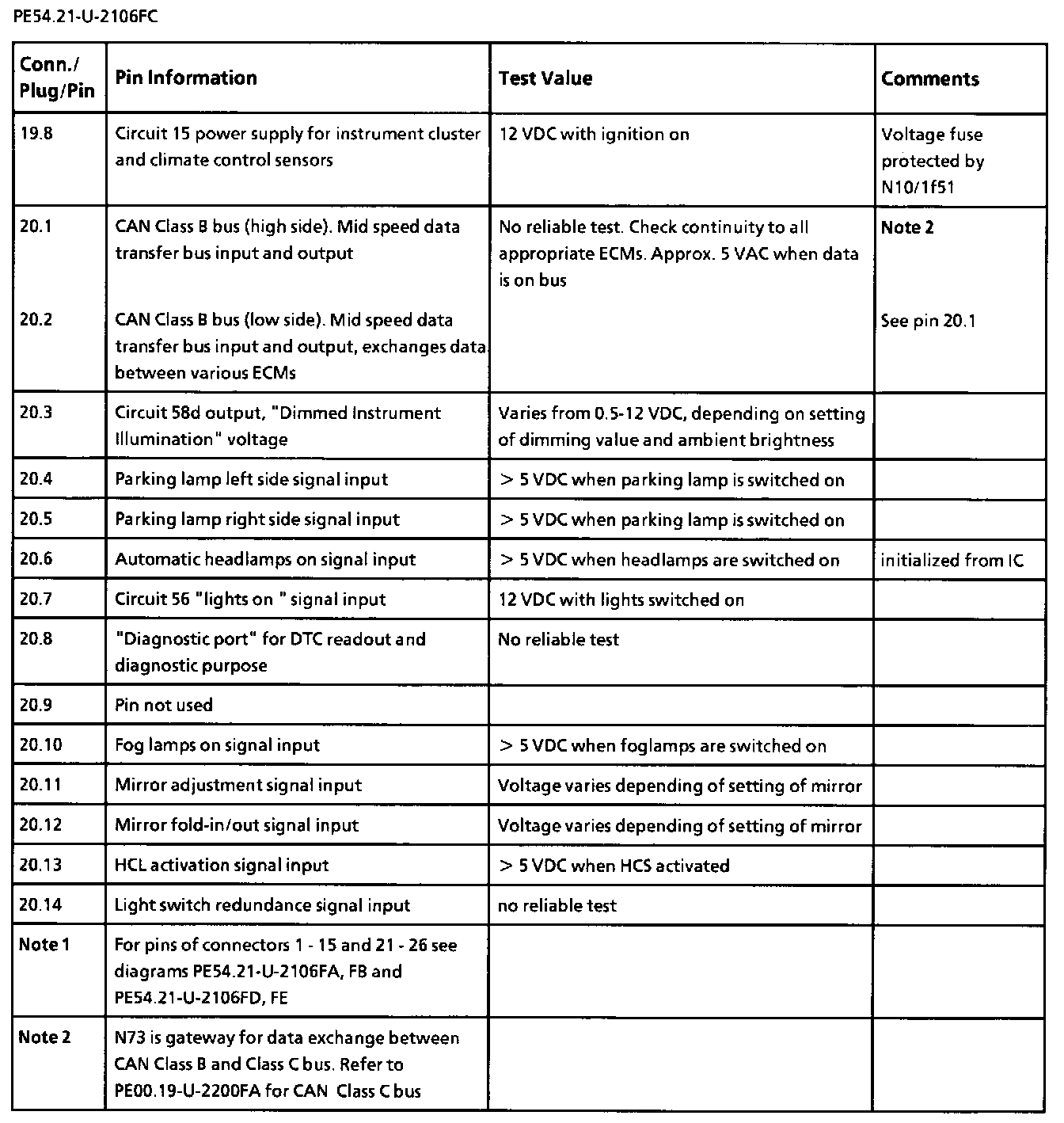

Pin Information, Part 2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
