GF54.65-P-4001PP Reversing, Function

GF54.65-P-4001PP Reversing, Function
- MODEL 203.0 /2 /7
- with CODE (220) Parktronic system (PTS)
up to Model Year 8






Function requirements
- Circuit 15 ON
- Vehicle speed ≤16 km/h
- The "reverse gear engaged" signal is applied
- Selector lever in position "R" or "N" (only on transmission 722)

Monitoring range

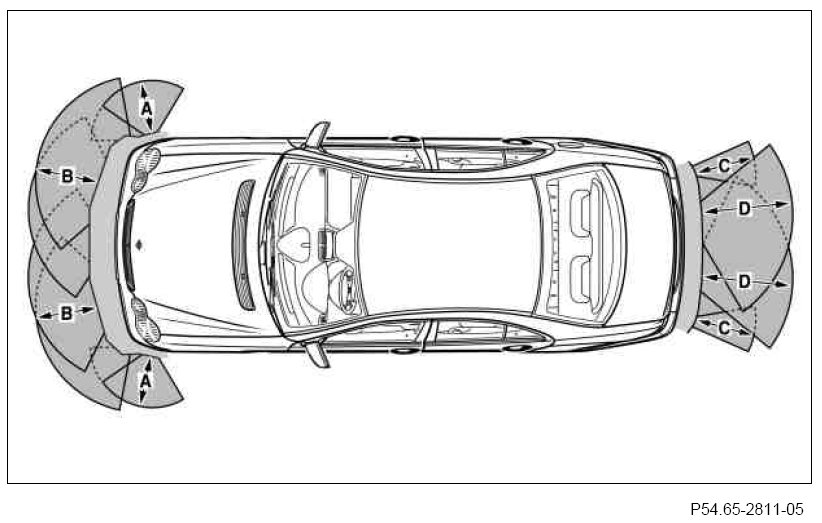

When reversing area C and D behind the vehicle and area A and B in front of the vehicle is monitored as well.

The front bumper PTS sensor unit detects obstacles:
- in area A (15 cm to 60 cm)
- in area B (20 cm to 100 cm)

The rear bumper PTS sensor unit detects obstacles:
- in area C (20 cm to 80 cm)
- in area D (20 cm to 120 cm)

Warning indicator
The Parktronic control unit actuates the center instrument panel PTS warning indicator or the rear dome lamp PTS warning indicator. Depending on the distance to the obstacle, visual and acoustic warning information is given out.

For a better distinction as to whether an obstacle is located in front of or behind the vehicle, the acoustic warning message is output at different frequencies.
The center instrument panel PTS warning indicator emits the warning chime with a higher frequency.

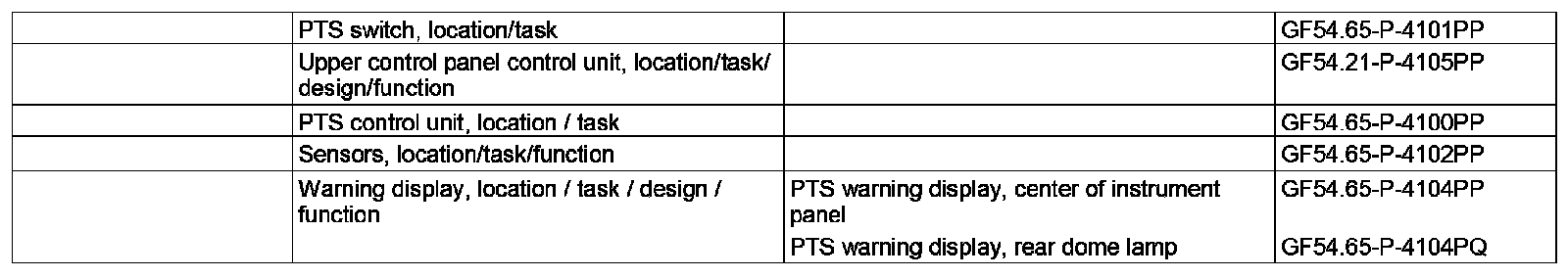

The Parktronic system (PTS) can be switched off and on manually via the PTS OFF switch in the upper control panel control unit. The feedback is via a bright red LED in the PTS OFF switch.
