AN82.70-P-0004-01P Retrofit Linguatronic Voice Control System Wiring Harness

AN82.70-P-0004-01P Retrofit Linguatronic Voice Control System Wiring Harness
- MODEL 203.0## 1#
- - with CODE (852) CTEL preinstallation assembly at dome bei nachtr�glichem Telefon-Festeinbau oder nachtr�glichem Einbau Telefon Handy
- with CODE (853) MB standard telephone

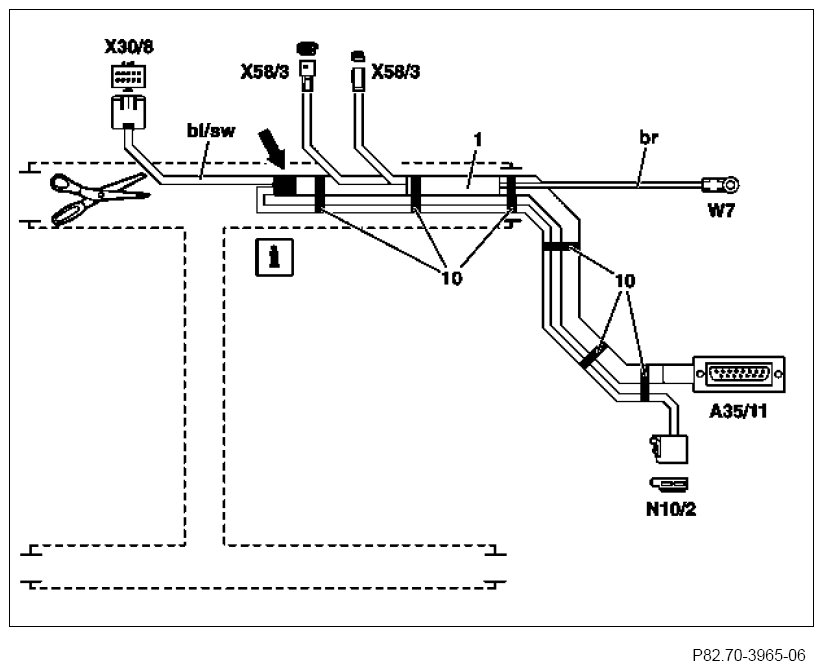

Connection schematic for wiring harness






bl/sw Blue/black line
brown Brown wire (ground)
A35/11 Voice control system control unit
N10/2 Rear SAM control unit with fuse and relay module
W7 Ground (right wheelhouse in luggage compartment)
X30/8 Wakeup signal connector
X58/3 Microphone connection

1 Unravel voice control system wiring harness (1) up to yellow mark (arrow).
2 Connect cable lacing with green, 2-pin coupling from yellow mark (arrow) to black, 15-pin coupling with insulating tape (10) to voice control system wiring harness (1).
Install blue/black (bl/sw) lead from the yellow marking (arrow) in the frame floor system, right wiring duct.






3 Route voice control system wiring harness (1) with yellow marking from beginning of right rear wiring duct (arrow) along present leads on wheelhouse and fasten.
4 Install the two connectors of the voice control system wiring harness (1) to microphone separation point (X58/3) standard connector.
5 Route voice control system wiring harness (1) with black, 15-pin coupling, brown ground cable lacing and green, 2- pin coupling into trunk through opening.






6 Route blue/black (bl/sw) lead in right wiring duct to black 10-pin wake-up signal connector (X30/8).

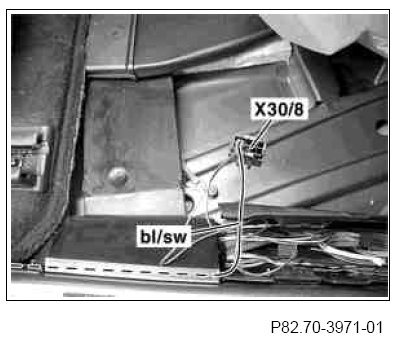

The wake-up signal connector (X30/8) is in the cable duct, just before the right A-pillar.

7 Insert blue/black (bl/sw) lead into chamber 5 of existing black, 10-pin wake-up signal connector (X30/8).






8 Route voice control system wiring harness (1) along existing leads in trunk on right and fasten to control unit plate.
9 Connect connectors to voice control system control unit (A35/11).

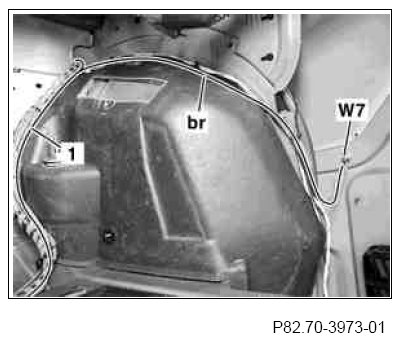

10 Route brown (br) line from voice control system wiring harness (1) over right wheelhouse along present lines and fasten.
11 Connect brown wire (br) to ground (right wheel housing in trunk) (W7).






12 Route voice control system wiring harness (1) to rear SAM control unit with fuse and relay module (N10/2) along present leads and fasten.

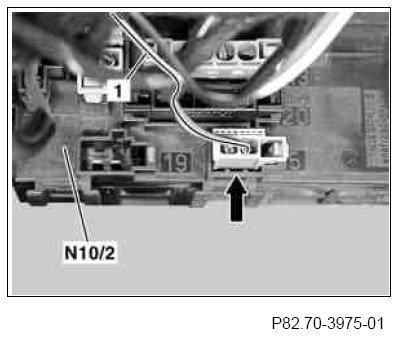

13 Insert green connector into free plug location (5, arrow) of rear SAM control unit with fuse and relay module (N10/2).
Plug location 5 is marked in green color.Tie back excess.
