AN82.70-P-0002-05PP Retrofitting Mount For Portable (Cellular Telephone)

AN82.70-P-0002-05PP Retrofitting Mount For Portable (cellular Telephone)

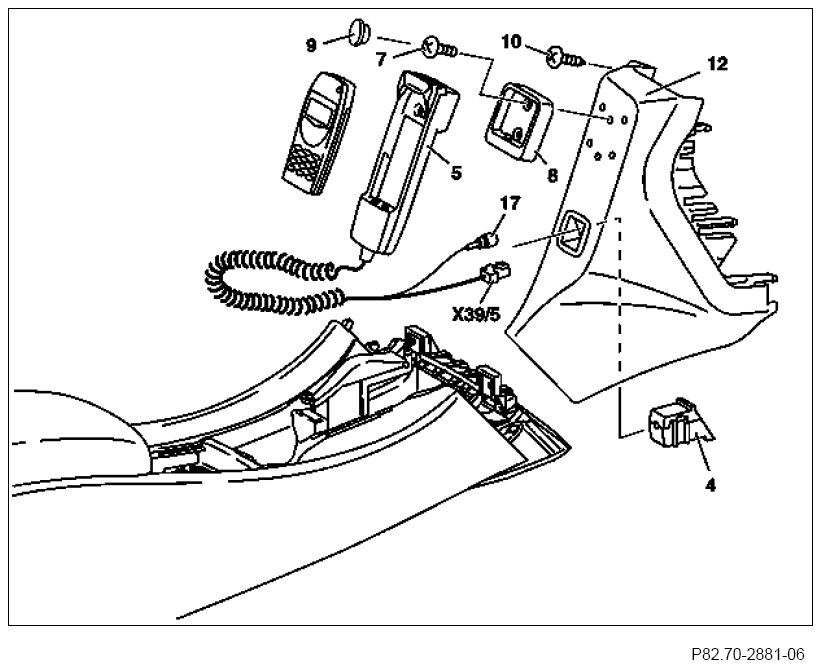

- MODEL 203.0 except CODE (855) TELE AID bracket for cell phone on the center console






4 Grommet
5 Bracket (cell phone)
7 Bolts (2)
8 Base bracket
9 Cover cap
12 Bracket
17 Antenna connection
X39/5 Handset transmitter and receiver connector

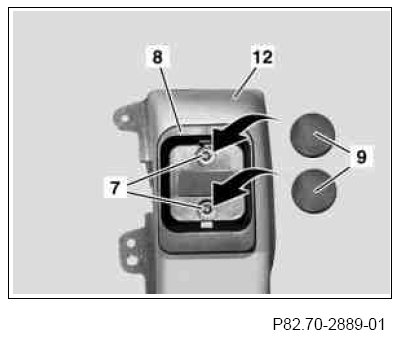

1 Bolt base bracket (8) with sheet metal screws (7) onto bracket (12) at pre-punched fastening holes.
2 Plug fastening holes with cover caps (9).

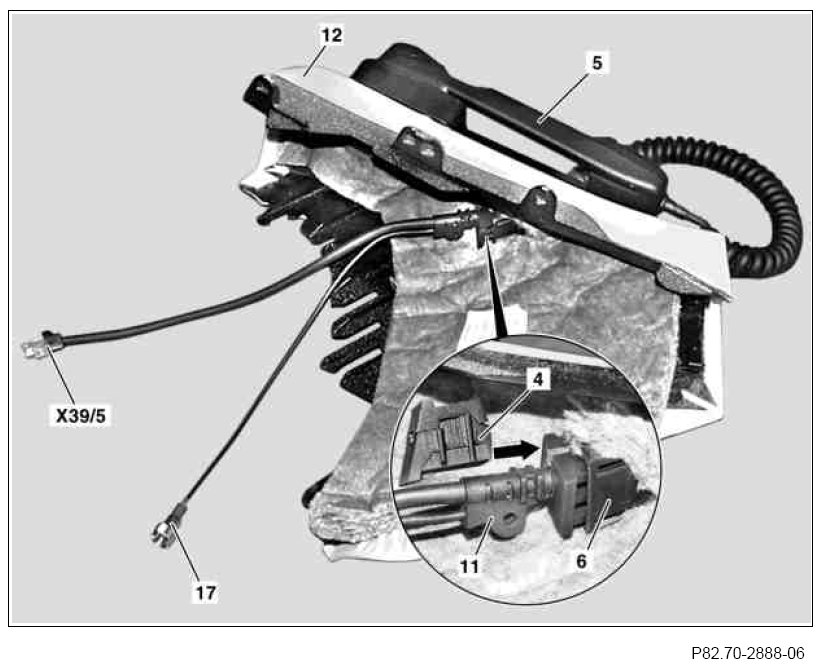

3 Guide connection cables from the bracket (cell phone, 5) through the feedthrough hole (6) in the bracket (12).
4 Fold open grommet (4) and place from the fastening eye (11) to the connection cable as shown in figure.
5 Insert grommet (4) with the connection cable in the feed-through (6) as shown in figure (arrow).

17 Antenna connection
X39/5 Handset transmitter and receiver connector

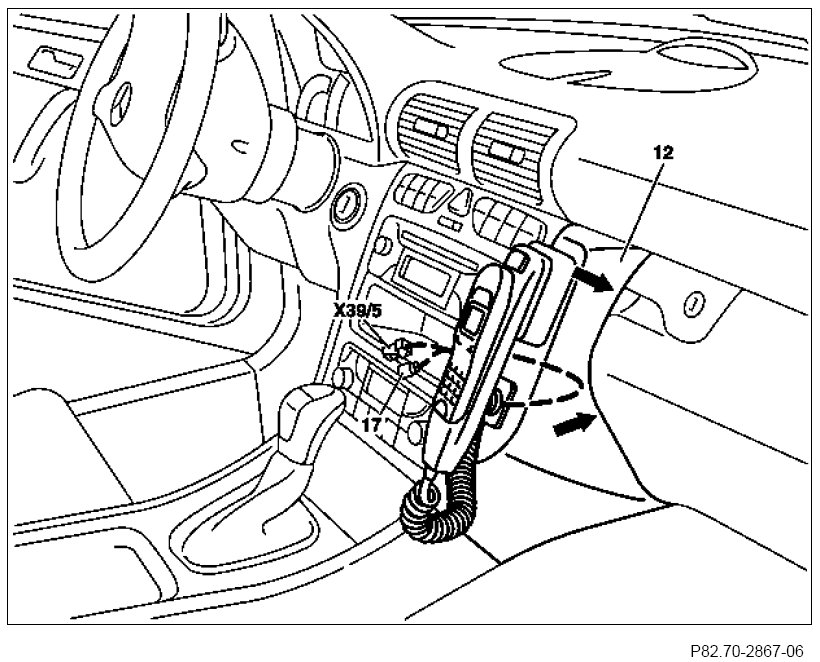

6 Connect handset transmitter/receiver connector (X39/5) and antenna connection (17) to telephone wiring harness.
7 Insert bracket (12) into the sidewall of the instrument panel (arrow).
Bracket (12) will be bolted on to the center console later with the bolts.
