AN82.70-P-0002-05P Retrofitting Mount For Portable (Cellular Telephone)

AN82.70-P-0002-05P Retrofitting Mount For Portable (cellular Telephone)
- Model 203.0
- except CODE (855) TELE AID bracket for cell phone in armrest

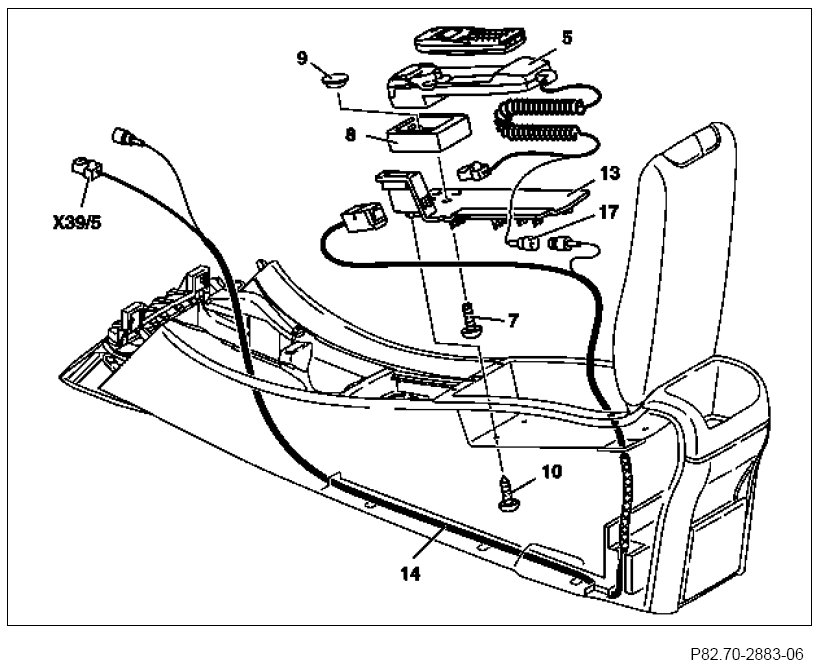

5 Bracket (cell phone)
7 Bolts (x 4)
8 Base bracket
9 Cover caps (x 2)
10 Sheet metal screws (x 2)
13 Paneling
14 Adapter cable
17 Antenna connection
X39/5 Handset transmitter and receiver connector

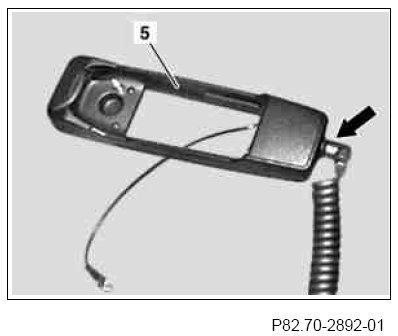

When installing the bracket (cell phone, 5), ensure that a bracket with slanted connection line (arrow) is installed.






1 Insert connection line from bracket (cell phone, 5) into paneling (13) as shown in figure.

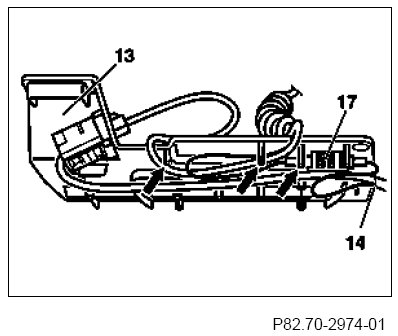

2 Connect antenna line (17) to adapter cable (14) and clip into paneling (13) as shown in figure.
3 Insert lines into the catch slots (arrows) provided under the paneling (13).

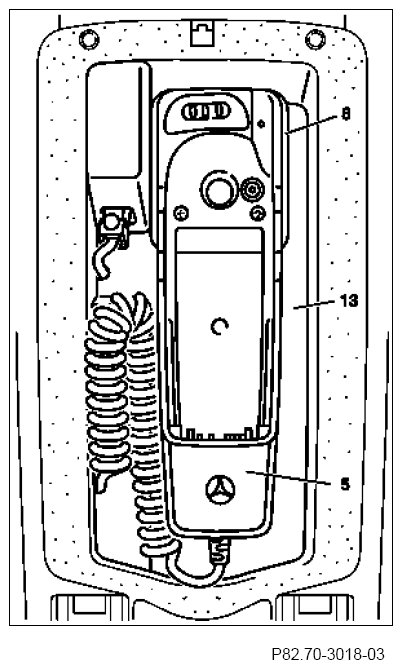

4 Bolt base bracket (8) onto paneling (13) with bolts.
5 Insert bracket (cell phone, 5) into base bracket (8).






6 Insert paneling with bracket (cell phone) into telephone shell and secure from below with bolts (4).

14 Adapter cable

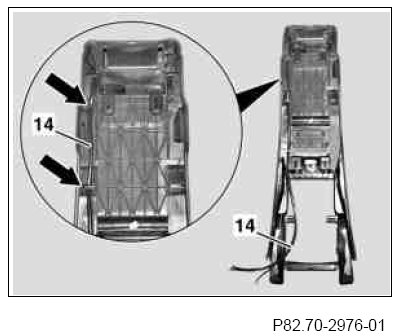

7 Guide adapter cable (14) with the fabric hose through the left feed-through of the armrest and secure with locking flap (15).






8 Clip adapter cable (14) into the retaining clip (arrow) under the armrest.
