GF80.50-P-3014PP Trigger Alarm With Panic Switch, Function

GF80.50-P-3014PP Trigger Alarm With Panic Switch, Function

MODEL 203.0 /2 /7
- with CODE (551) Anti-theft alarm system (ATA [EDW])
- with CODE (763) Radio remote control with panic switch
- up to Model Year 8

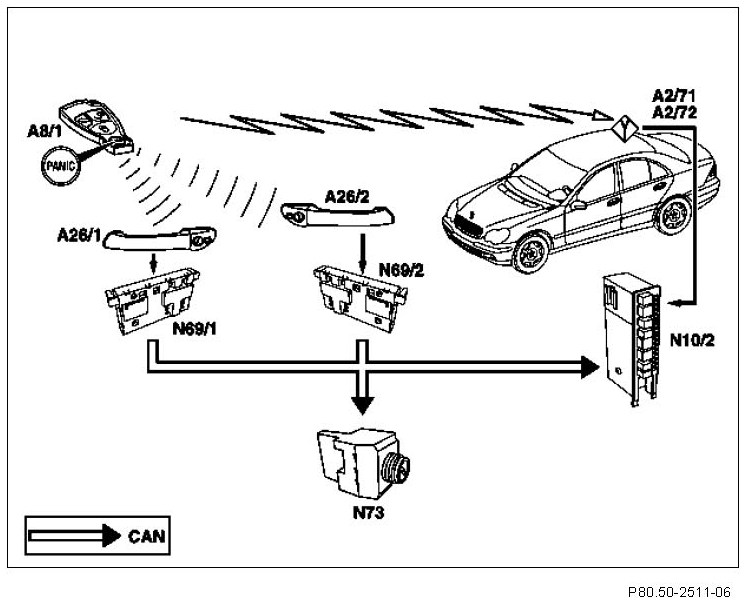

Shown on model 203.0
A2/71 Amplifier module 1, window antenna (model 203.2)
A2/72 Amplifier module 2, window antenna (model 203.0/7)
A8/1 Transmitter key
A26/1 Left front IR receiver
A26/2 Right front IR receiver unit (only United States of America and Japan up to 23.4.04)
N10/2 Rear SAM control unit with fuse and relay module
N69/1 Left front door control unit
N69/2 Right front door control unit
N73 EIS [EZS] control unit
CAN Controller area network bus, class B (interior compartment) (CAN B)
PANIC Panic alarm button

Alarm actuation
Actuate panic alarm button (PANIC) on transmitter key (A8/1) for approx. 1 s.
The signal of the transmitter key (A8/1) is received on the vehicle and after the authorization code has been checked by the EIS control module (N73) it is relayed rear SAM control module with fuse and relay module (N10/2) via CAN-B (CAN).The rear SAM control module with fuse and relay module (N10/2) triggers a visual and acoustic alarm.

Alarm output
The alarm signal horn with additional battery outputs an acoustic alarm regardless of the ATA status. Parallel to this, a visual alarm is output
The panic alarm has priority over the ATA alarm. If both alarms are set off, the panic alarm is emitted.

Visual alarm
The alarm output is actuated by the rear SAM control module with fuse and relay module (N10/2). The type of alarm and alarm duration are stored in the rear SAM control module with fuse and relay module (N10/2).

Interior lights actuation
The interior lights is switched by the overhead control panel control module, without dimming, for the duration of the visual alarm.

Exterior lights actuation
The visual alarm is accomplished when the
- left taillamp and parking lamp and the right taillamp and parking lamp are actuated by the front SAM control module with fuse and relay module (N10/2),
- left front fog lamp and right front fog lamp are actuated by the front SAM control module with fuse and relay module
for the duration of a visual alarm.

Acoustic alarm
The acoustic alarm is output by the alarm signal horn with additional battery (H3/1).

Alarm duration
The alarm duration of the visual alarm is approx. 180 s. The alarm duration of the acoustic alarm is approx. 185 s

Terminate alarm
Momentarily actuate panic alarm button (PANIC) on transmitter key (A8/1). The panic alarm is terminated when the EIS control unit (N73) recognizes a valid transmitter key (A8/1).

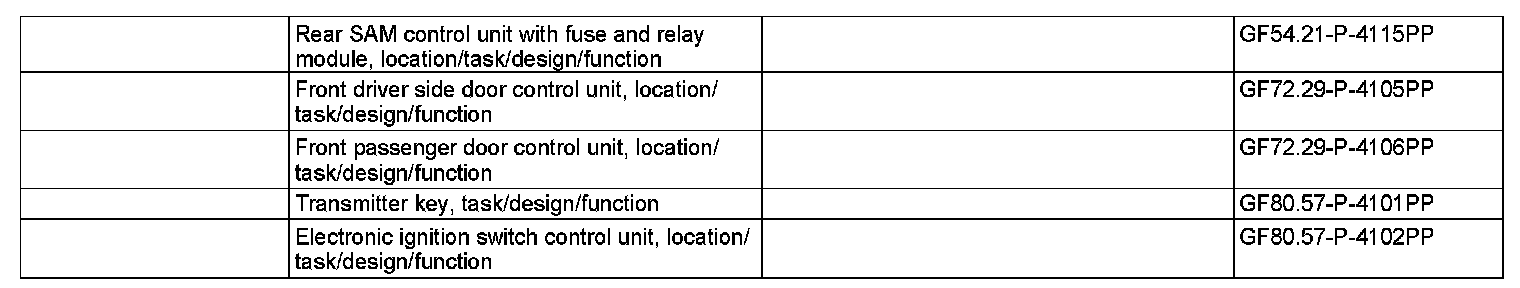

The panic alarm function and the duration of the alarm can be programmed via the STAR DIAGNOSIS.
