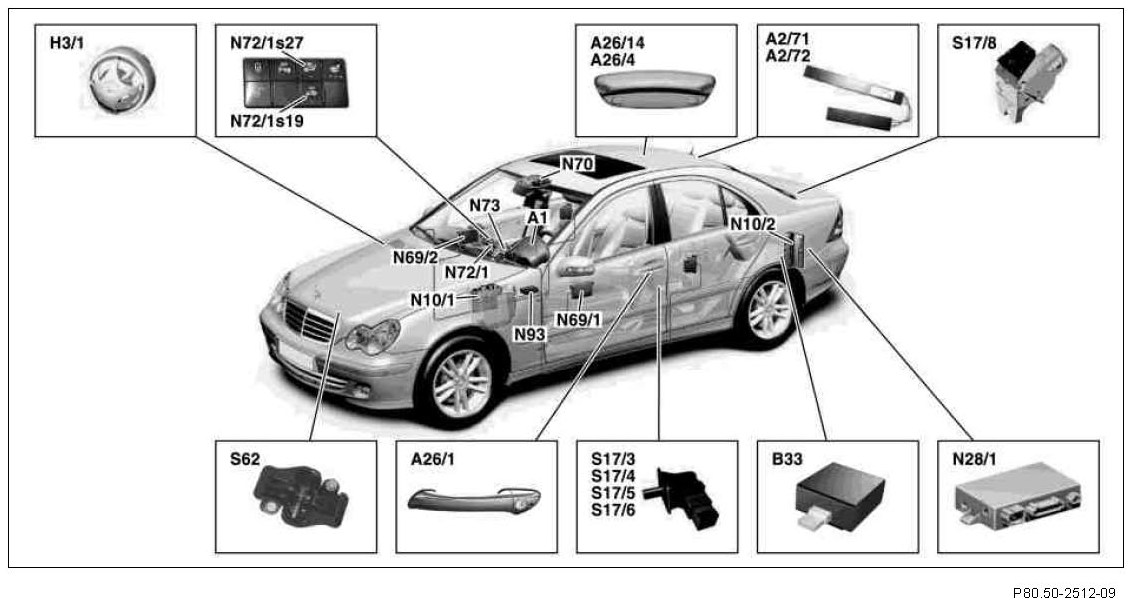

GF80.50-P-0001-02P Anti-Theft Alarm System (ATA), Location of Components

GF80.50-P-0001-02P Anti-Theft Alarm System (ATA), Location Of Components
MODEL 203.0 /2 /7 as of 24.4.04
- with CODE (551) Anti-theft alarm system (ATA [EDW]) up to Model Year 8







Shown on model 203.0
A1 Instrument cluster
A2/71 Amplifier module 1, window antenna (model 203.2)
A2/72 Amplifier module 2, window antenna (model 203.0/7)
A26/1 Left front IR receiver
A26/4 Left interior protection transmitter and receiver (model 203.7 with code (882) Interior monitoring (with ATA only))
A26/14 Interior protection transmitter and receiver (model 203.0/2 with code (882) Interior monitoring (with ATA only))
B33 ATA inclination sensor (as of 1.6.06 not United States of America and Japan)
H3/1 Alarm signal horn with additional battery
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N28/1 Trailer recognition control unit (with code (550) Trailer hitch
N69/1 Left front door control unit
N69/2 Right front door control unit
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N72/1s19 IMS OFF switch (with code (882) Interior monitoring (with ATA only))
N72/1s27 TS OFF switch and ATA function indicator (as of 1.6.06 not United States of America and Japan)
N73 EIS [EZS] control unit
N93 Central gateway control unit (up to 27.7.04)
S17/3 Left front door contact switch
S17/4 Right front door contact switch
S17/5 Left rear door contact switch (model 0/2203)
S17/6 Right rear door contact switch (model 0/2203)
S17/8 Trunk lid rotary tumbler microswitch
S62 EDW hood switch
