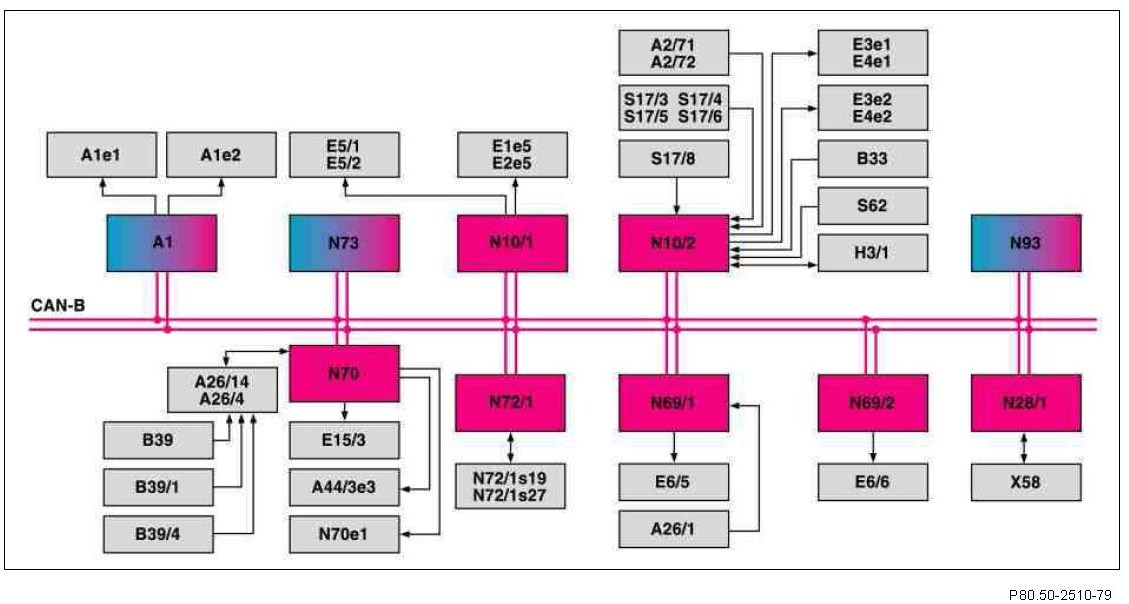

GF80.50-P-0001-01PP Anti-Theft Alarm System (ATA [EDW]), Block Diagram

GF80.50-P-0001-01PP Anti-Theft Alarm System (ATA [EDW]), Block Diagram
MODEL 203.0 /2 /7 as of 24.4.04
- with CODE (551) Anti-theft alarm system (ATA [EDW]) up to Model Year 8







A1 Instrument cluster
A1e1 Left turn signal indicator lamp
A1e2 Right turn signal indicator lamp
A2/71 Amplifier module 1, window antenna (model 203.2)
A2/72 Amplifier module 2, window antenna (model 203.0/7)
A26/1 Left front IR receiver
A26/4 Left interior protection transmitter and receiver (model 203.7 with code (882) Interior monitoring (with ATA only))
A26/14 Interior protection transmitter and receiver (model 203.0/2 with code (882) Interior monitoring (with ATA only))
A44/3e3 Dome lamp (model 203.0/2 with code (220) Parktronic system (PTS))
B33 ATA inclination sensor (as of 1.6.06 not United States of America and Japan)
B39 Left rear window glass breakage sensor (model 203.2 with code (882) Interior monitoring (with ATA only))
B39/1 Right rear glass breakage sensor (model 203.2 with code (882) Interior monitoring (with ATA only))
B39/4 Rear window glass breakage sensor (model 203.2/7 with code (882) Interior monitoring (with ATA only))
E1e5 Left turn signal lamp
E2e5 Right turn signal lamp
E3e1 Left turn signal lamp
E3e2 Left taillamp and parking lamp
E4e1 Right turn signal lamp
E4e2 Right taillamp and parking lamp
E5/1 Left front fog lamp
E5/2 Right front fog lamp
E6/5 Left outside mirror turn signal lamp
E6/6 Right outside mirror turn signal lamp
E15/3 Rear dome lamp (model 203.7, model 203.0/2 without code (220) Parktronic system (PTS))
H3/1 Alarm signal horn with additional battery
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N28/1 Trailer recognition control unit (with code (550) Trailer hitch
N69/1 Left front door control unit
N69/2 Right front door control unit
N70 Overhead control panel control unit
N70e1 Front dome lamp
N72/1 Upper control panel control unit
N72/1s19 IMS OFF switch (with code (882) Interior monitoring (with ATA only))
N72/1s27 TS OFF switch and ATA function indicator (as of 1.6.06 not United States of America and Japan)
N73 EIS [EZS] control unit
N93 Central gateway control unit (up to 27.7.04)
S17/3 Left front door contact switch
S17/4 Right front door contact switch
S17/5 Left rear door contact switch (model 0/2203)
S17/6 Right rear door contact switch (model 0/2203)
S17/8 Trunk lid rotary tumbler microswitch
S62 EDW hood switch
X58 Trailer hitch socket (13-pin) (with code (550) Trailer hitch)
CAN B Controller area network bus, class B (interior compartment) (CAN B)
