FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
SLK 280 (171.454) V6-3.0L (272.942)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Restraints and Safety Systems
>>
Impact Sensor
>>
Service and Repair
>>
AR91.60-P-0710V Remove/Install Sidebag Sensor
AR91.60-P-0710V Remove/Install Sidebag Sensor
AR91.60-P-0710V Remove/install Sidebag Sensor

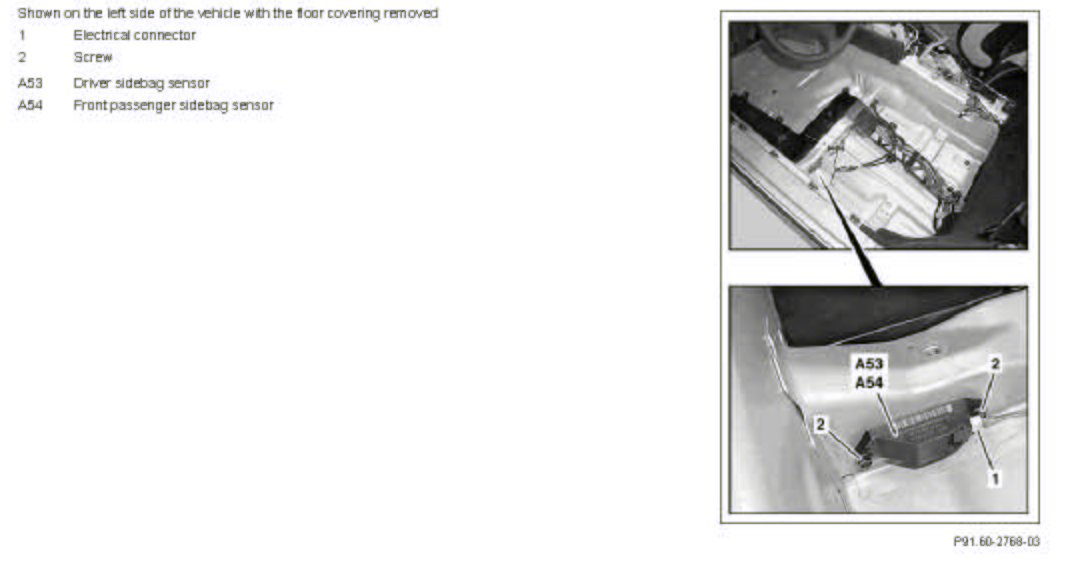

Component Identification:

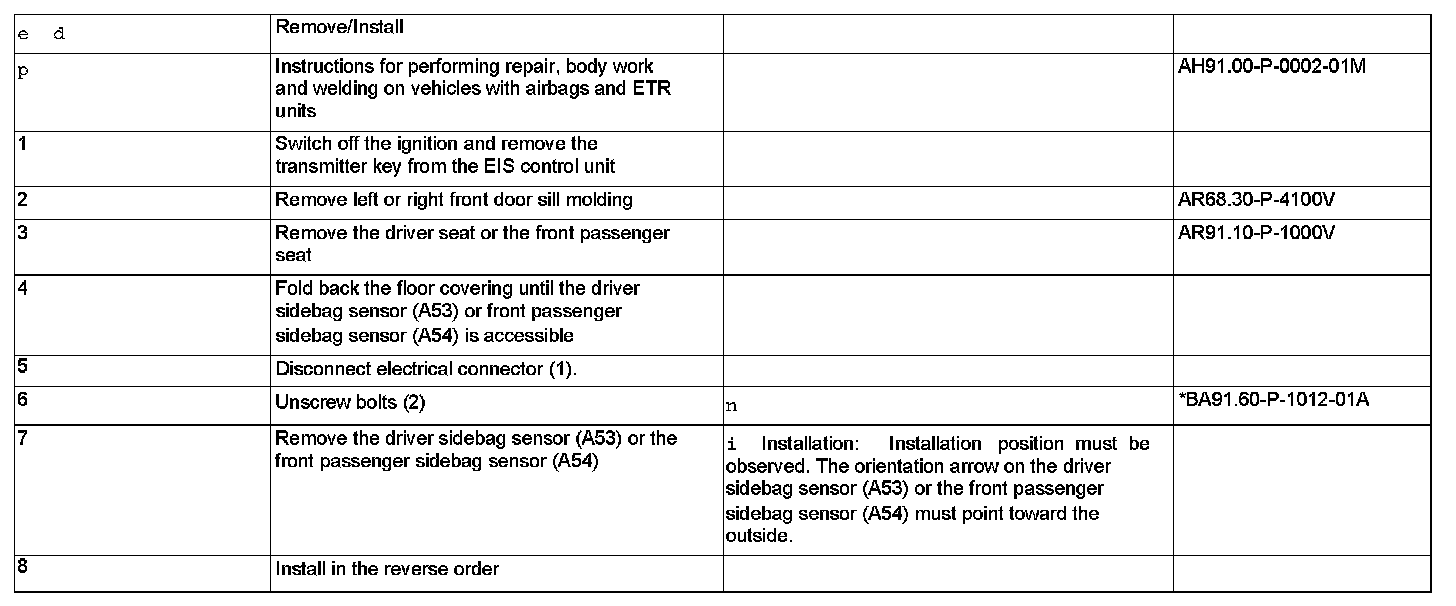

Steps 1 - 8:

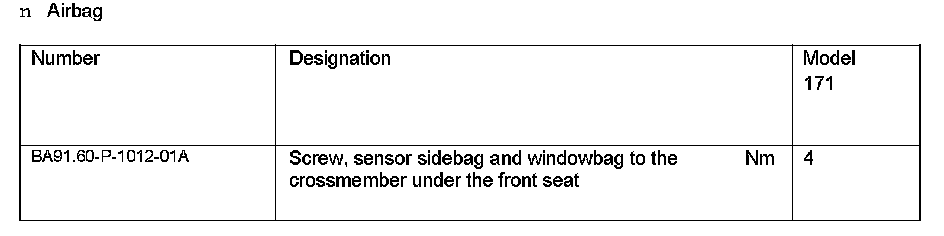

Airbag:
