AR54.65-P-0006V Remove/Install Parktronic System (PTS) Control Unit



AR54.65-P-0006V Removing and Installing Parktronic System (PTS) Control Unit
- with CODE (220a) Parktronic System (PTS)

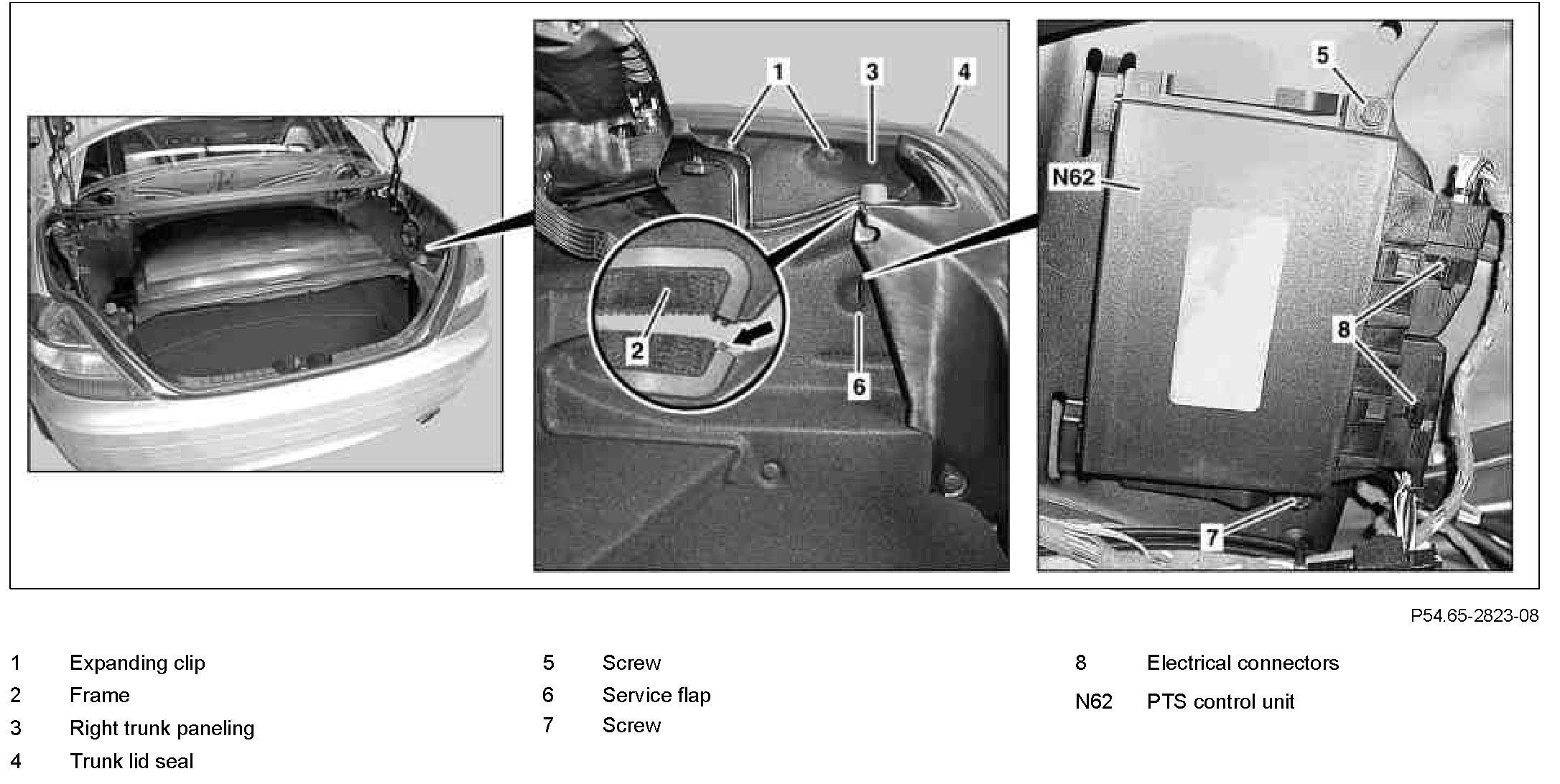

Component Identification:

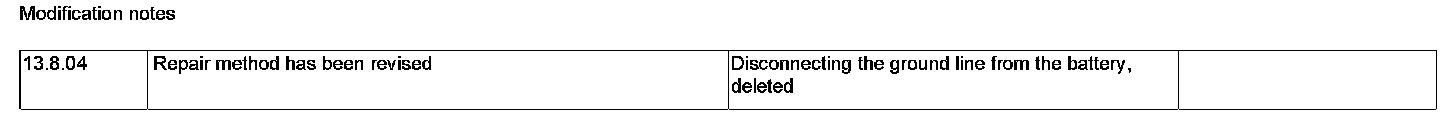

Modification Notes:

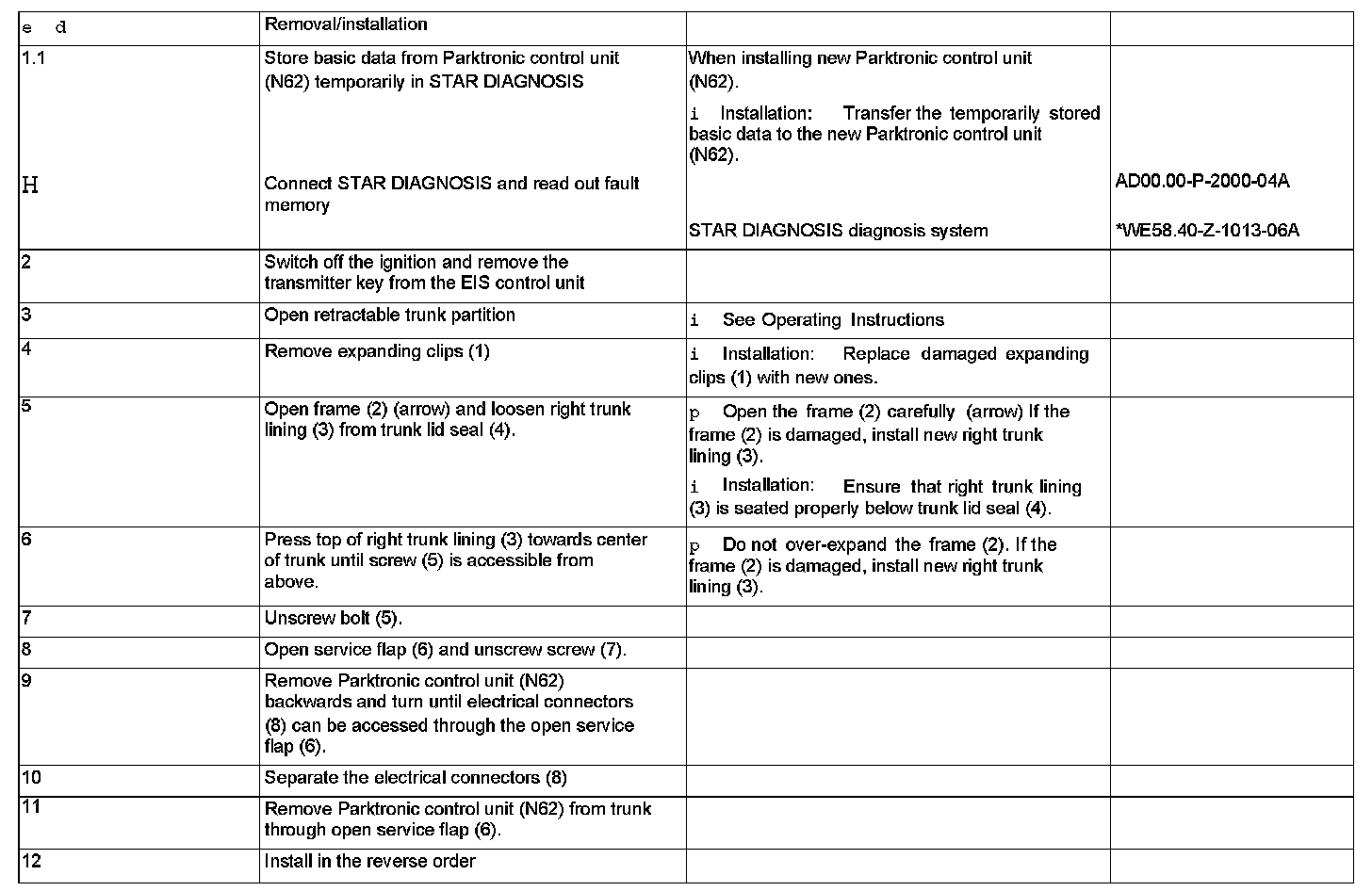

Steps 1.1 - 12:

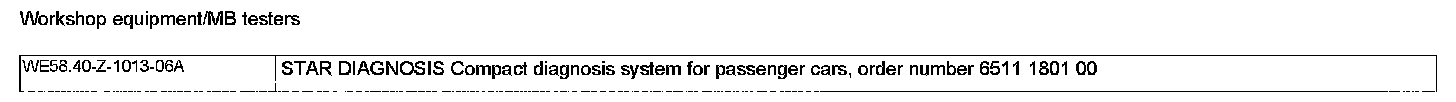

Workshop Equipment/MB Testers:
