AR15.60-P-2711VA Remove/Install Coolant Temperature Sensor
AR15.60-P-2711VA Remove/Install Coolant Temperature Sensor
AR15.60-P-2711VA Removing/installing coolant temperature sensor

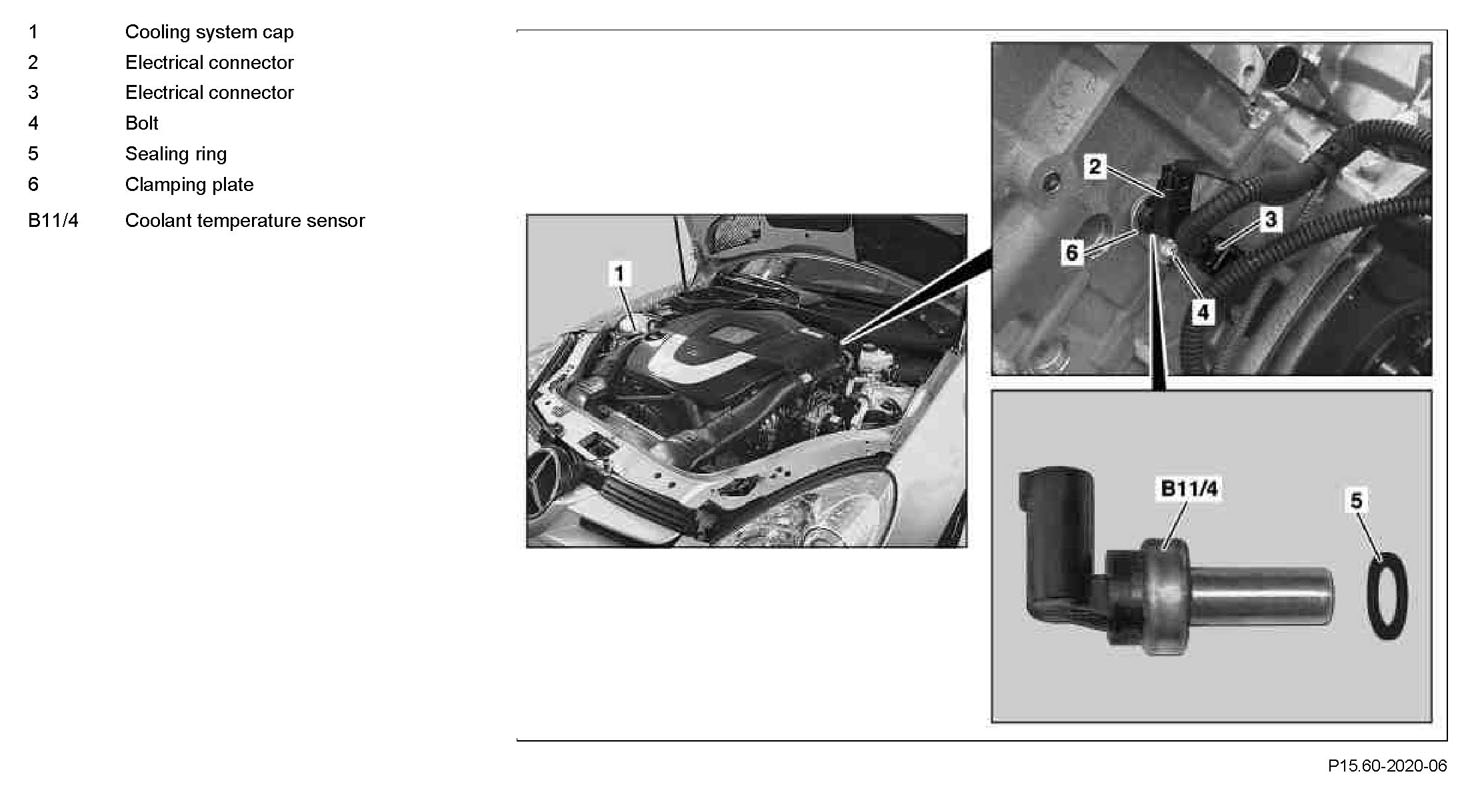

Component Identification:
Steps 1-9:

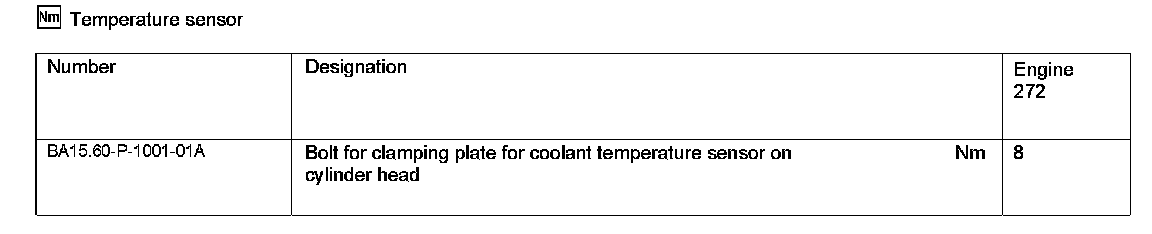

Temperature Sensor:
