Turn Signal Lamp: Service and Repair
AR82.25-P-4726V Remove/install Additional
Turn Signal Lamp

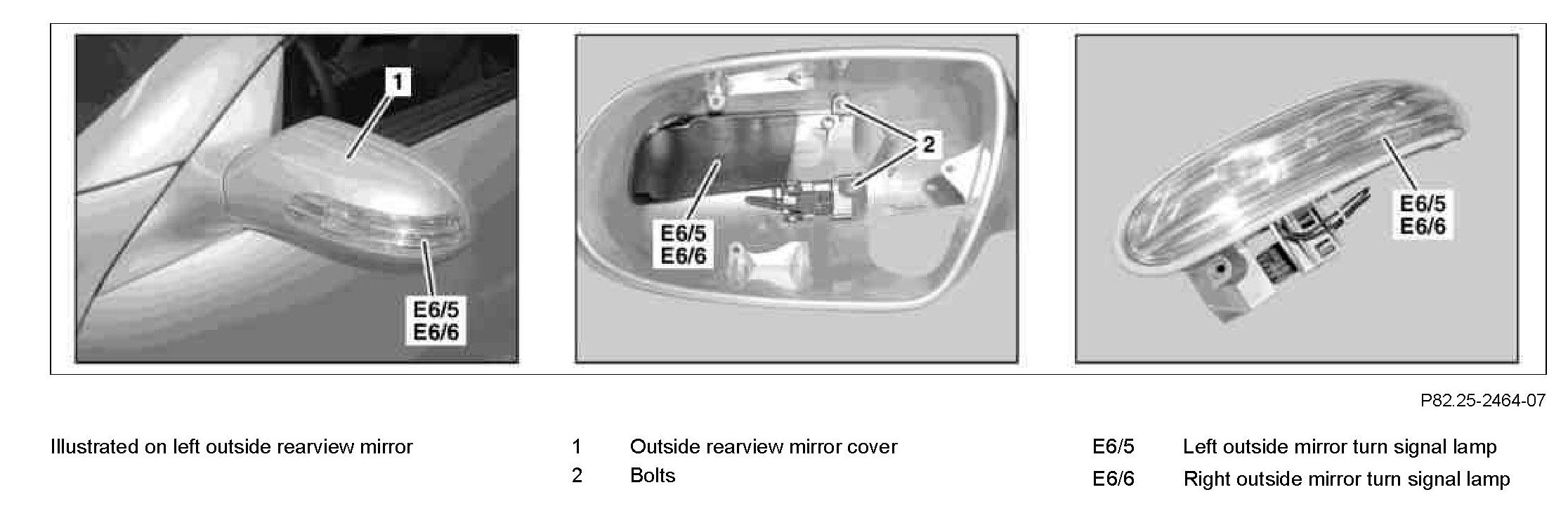

Component Identification:

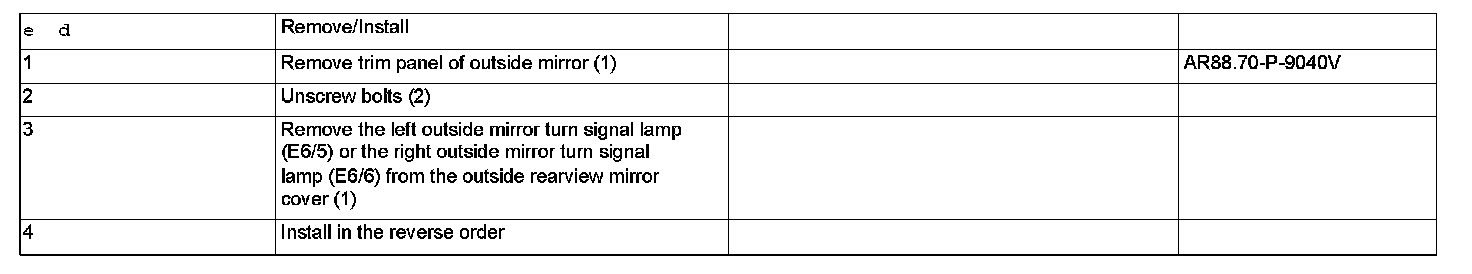

Steps 1 - 4:
