SLK 280 (171.454) V6-3.0L (272.942)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Engine Lubrication
>>
Oil Pan
>>
Service and Repair
>>
Procedures
>>
AR01.45-P-7500-06VA Bolt Plan For Oil Pan
AR01.45-P-7500-06VA Bolt Plan For Oil Pan
AR01.45-P-7500-06VA Bolt plan for
oil pan

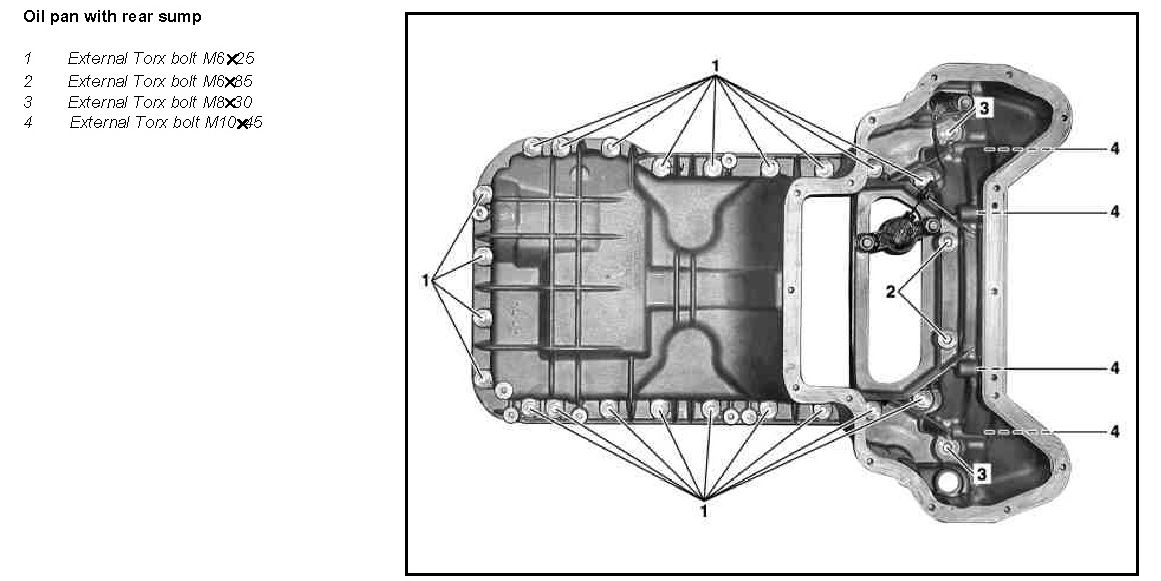

Oil pan with rear sump:
Oil pan with middle sump:

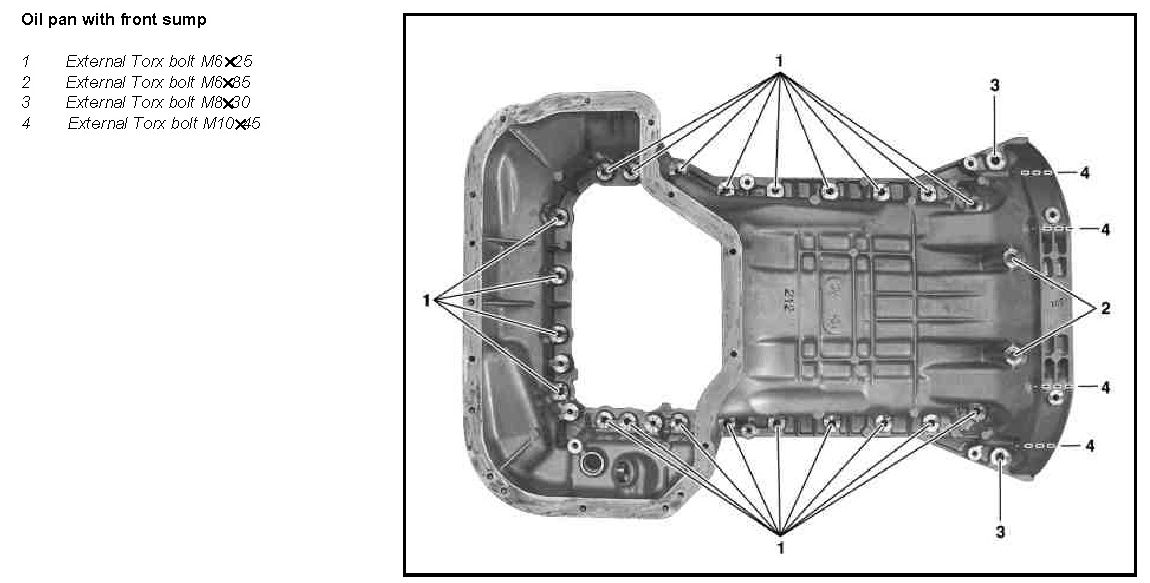

Oil pan with front sump:
