System Diagram

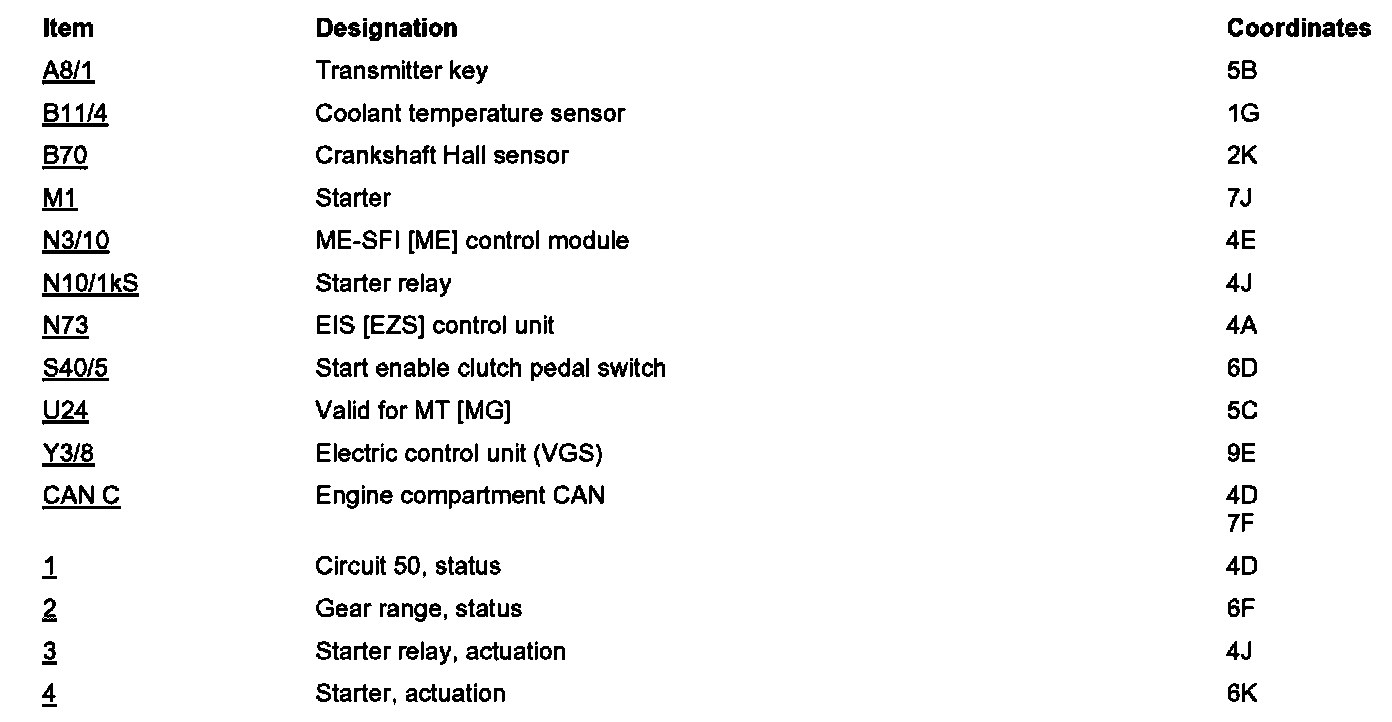

PE15.30-U-2051TA Electrical Function Diagram For Starter Control











Component Locations: Component Locations photographs can be found via their component names at the vehicle level. Component Locations
