AR67.30-P-4100RBS Remove/Install Detachable Parts When Replacing Rear Side Window



AR67.30-P-4100RBS Remove/Install Detachable Parts When Replacing Rear Side Window
- with CODE (P99) Special model "AMG Black Series"


Component Identification:

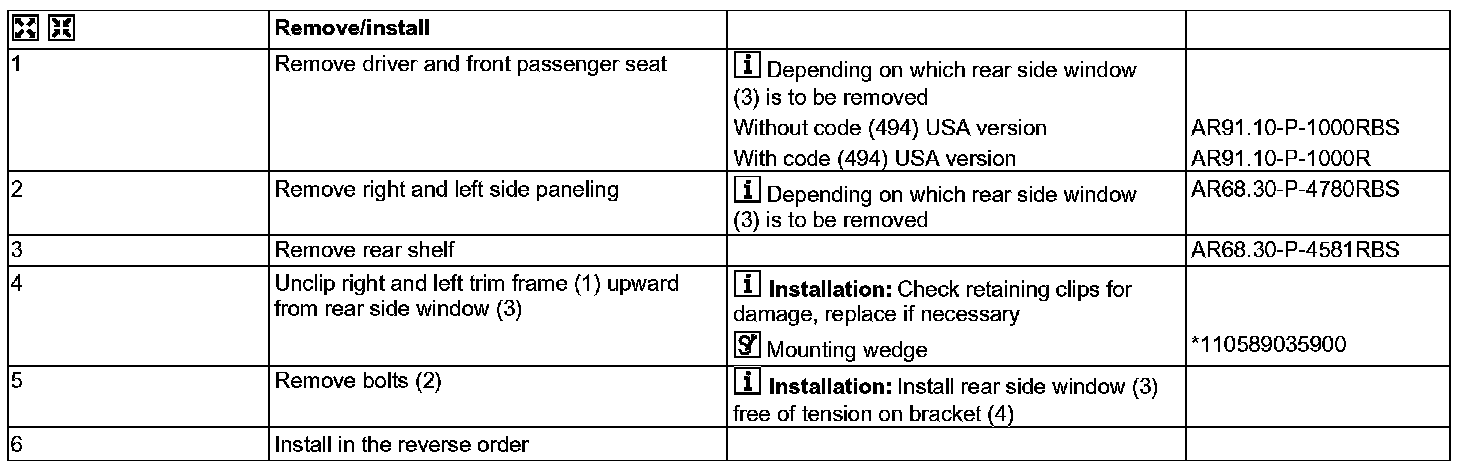

Steps 1 - 6:

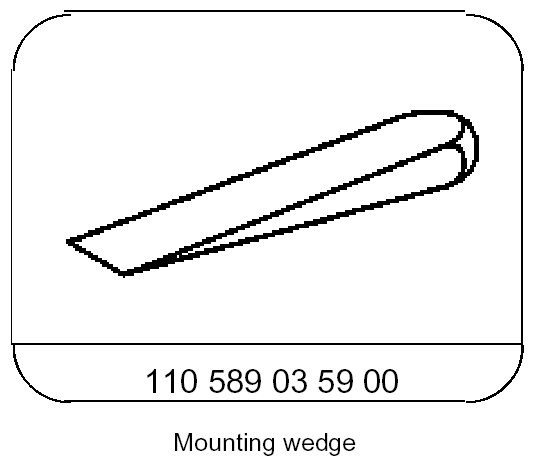

Special Tools:
