AR47.20-P-5717RM Remove/Install Fuel Pump Control Unit
AR47.20-P-5717RM Remove/Install Fuel Pump Control Unit
AR47.20-P-5717RM Removing/Installing the
Fuel Pump Control Unit

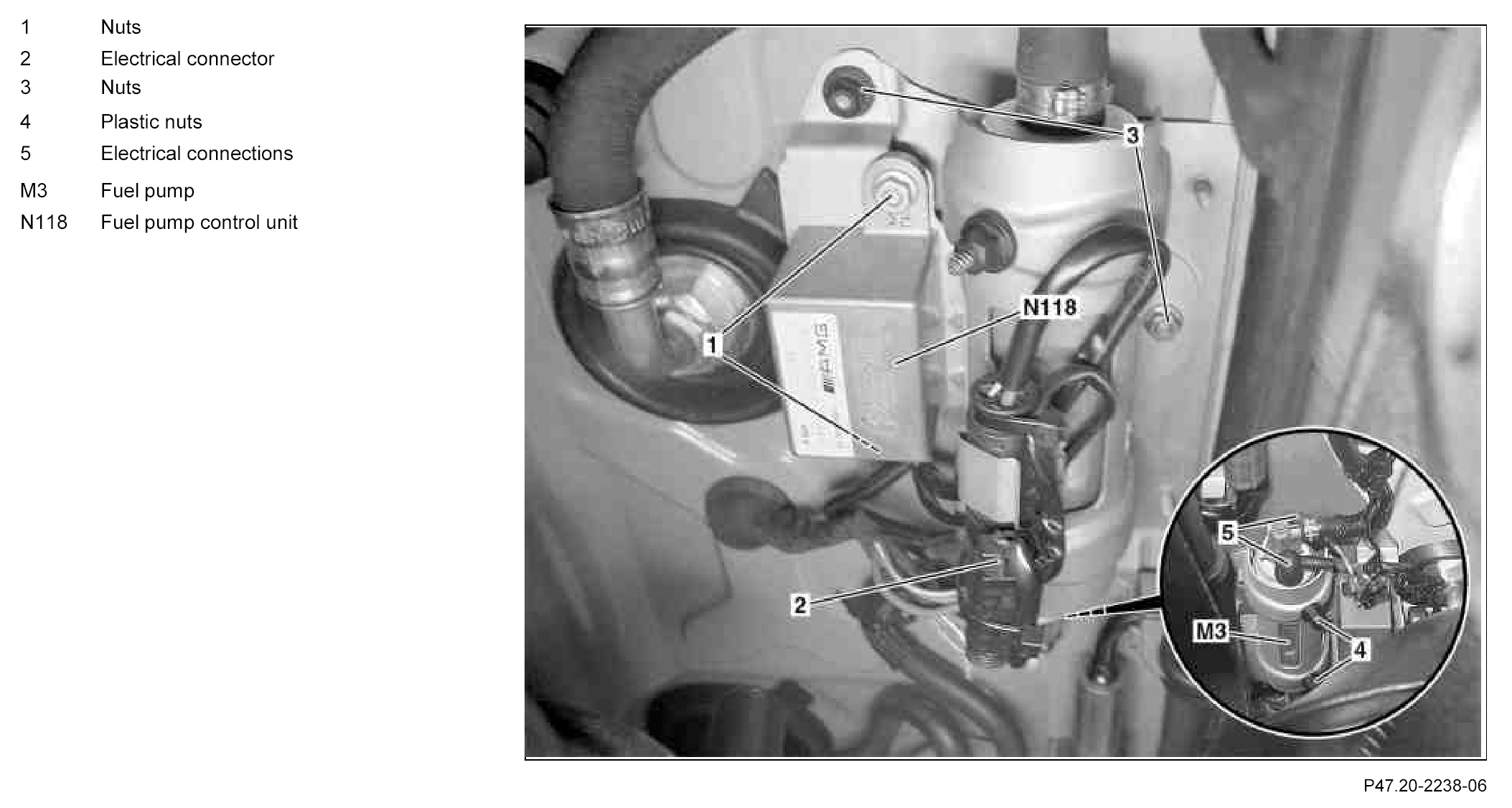

Component Identification:

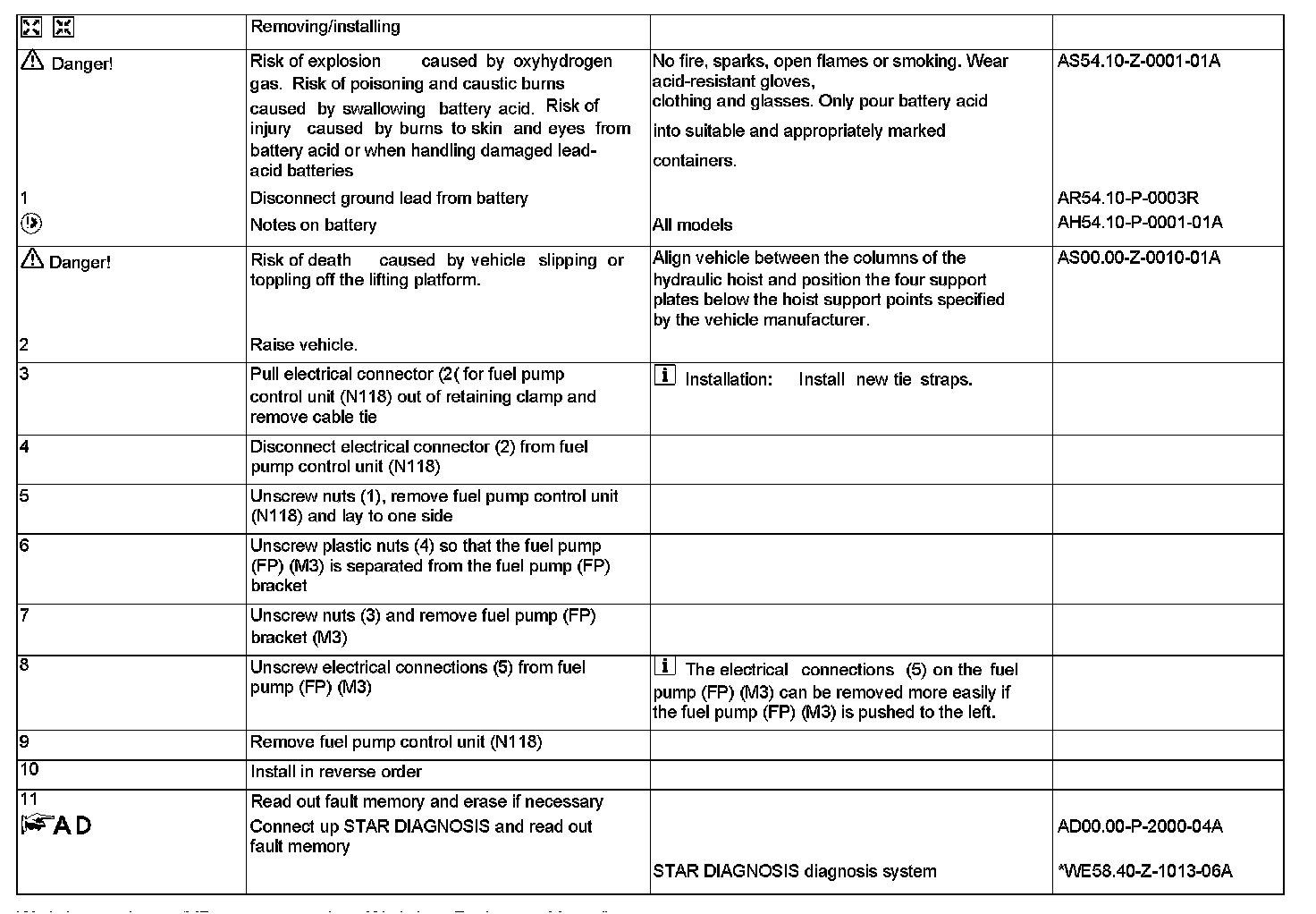

Steps 1 - 11:
