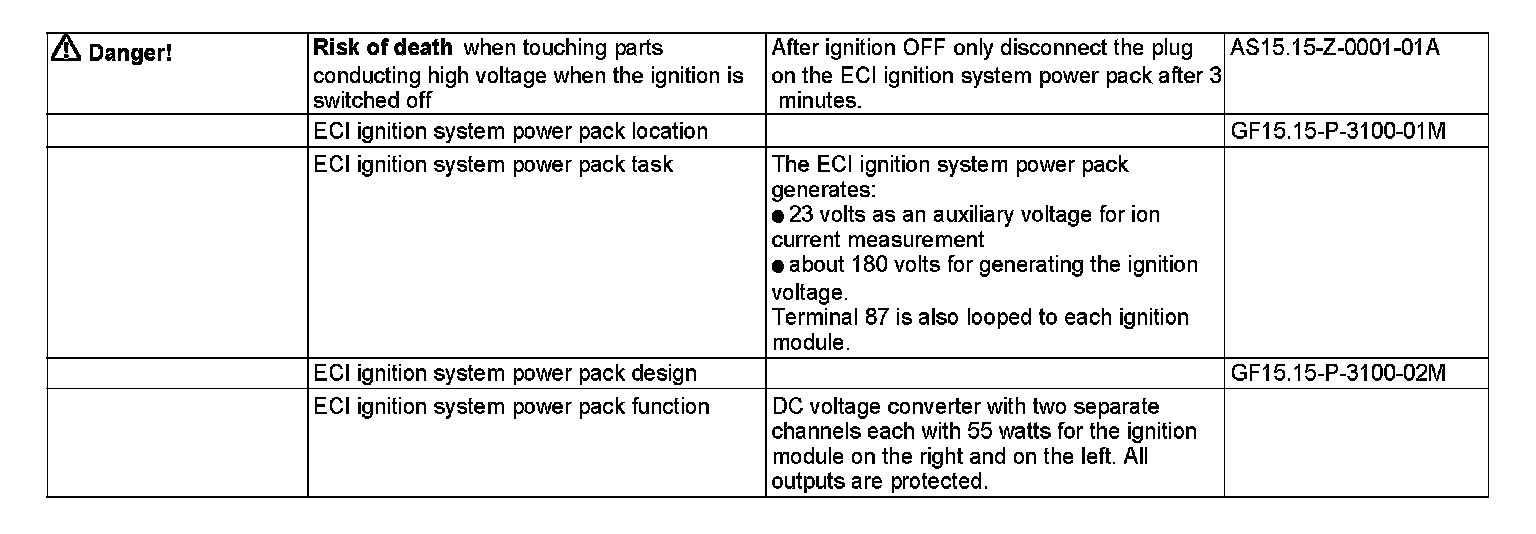

GF15.15-P-3100M ECI Ignition System Power Pack Location/Task/Design/Function

GF15.15-P-3100M ECI Ignition System Power Pack Location/Task/Design/Function
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230 up to Model Year 8
ENGINE 275.953 in MODEL 216, 221 up to Model Year 8
ENGINE 275.954 in MODEL 230 up to Model Year 8
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230 up to Model Year 8
ENGINE 275.982 in MODEL 216, 221 up to Model Year 8
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240

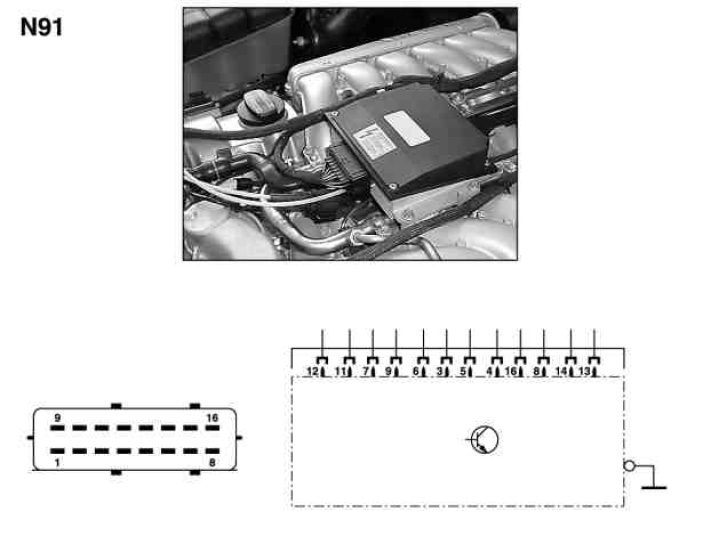

N91 ECI ignition system mains unit Connector assignment:
Pin 4,5 Voltage supply, circuit (terminal) 87
Pin 7 Auxiliary voltage approx. 23 V for right ignition module
Pin 8 Auxiliary voltage approx. 23 V for left ignition module
Pin 9 Voltage approx. 180 V for right ignition module
Pin 11 Ground for right ignition module
Pin 12 Battery voltage for right ignition module
Pin 13 Battery voltage for left ignition module
Pin 14 Ground for left ignition module
Pin 16 Voltage approx. 180 V for left ignition module
