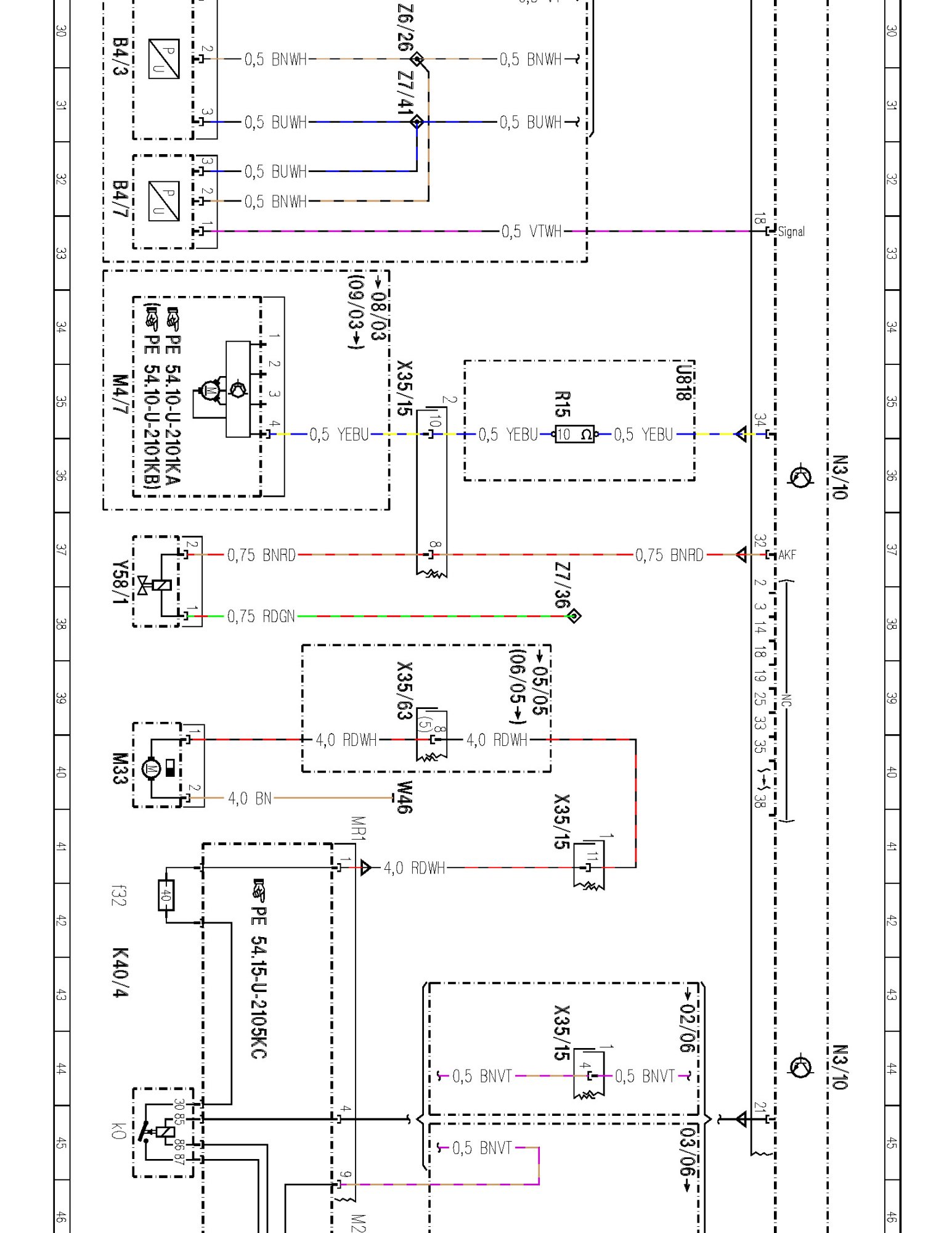

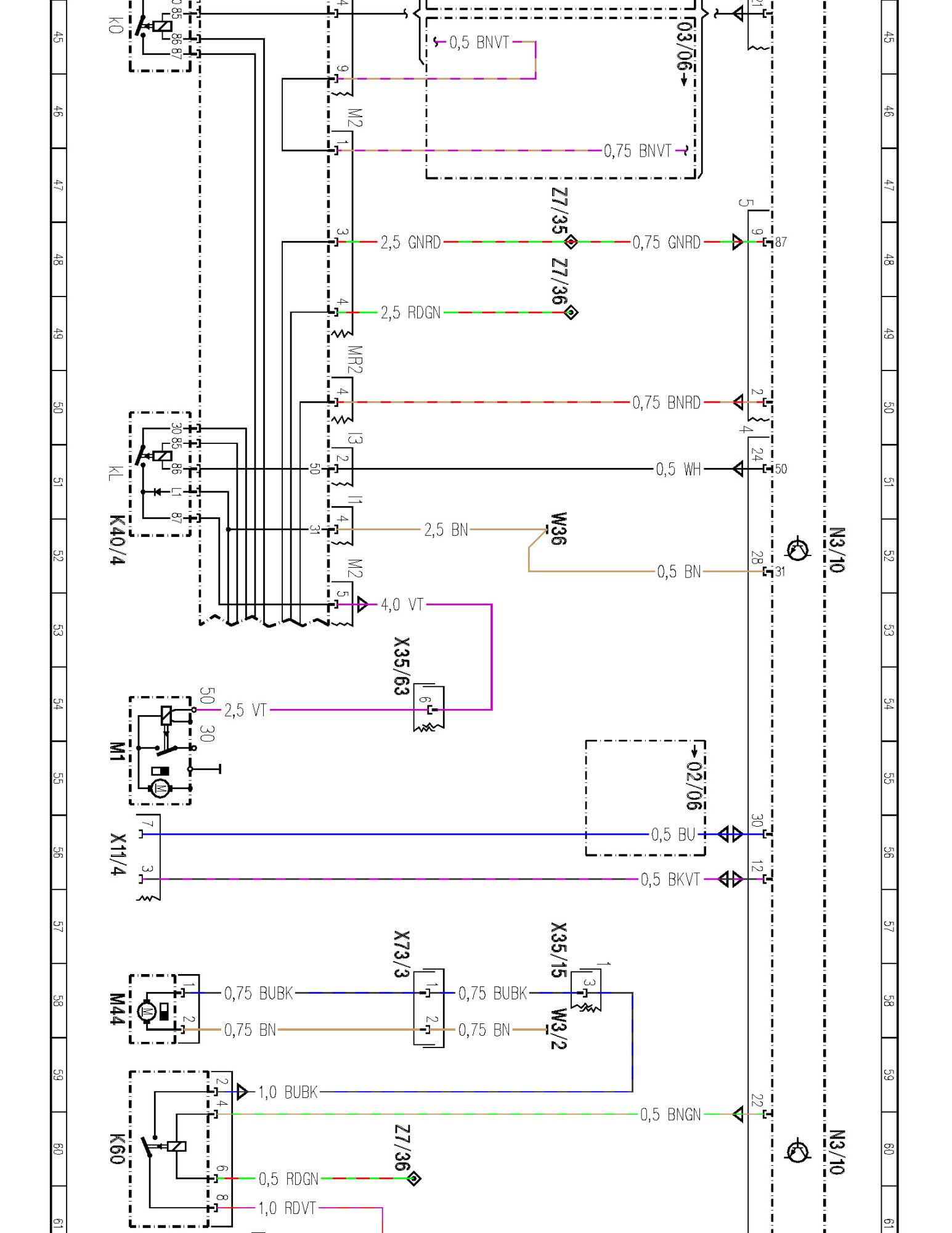

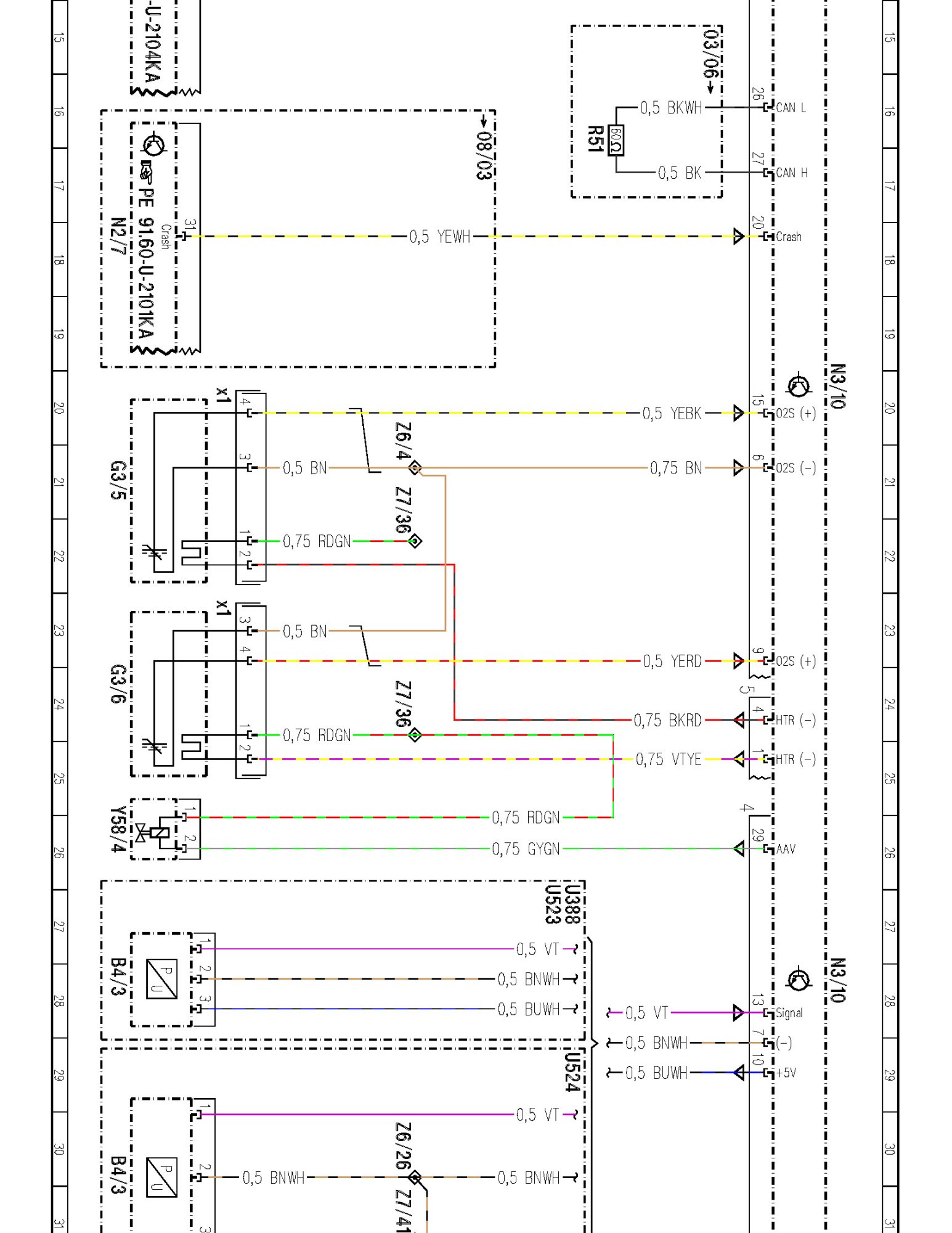

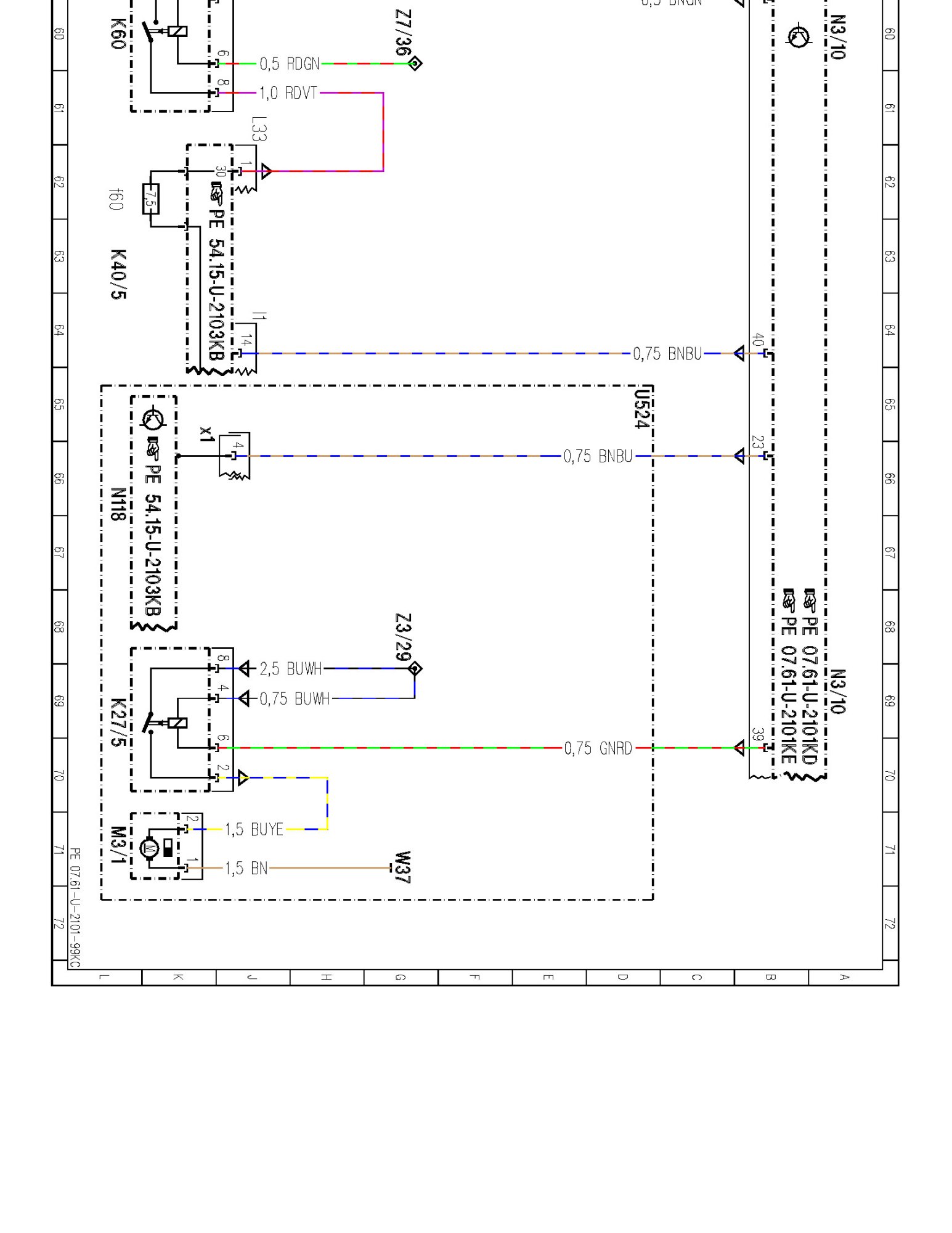

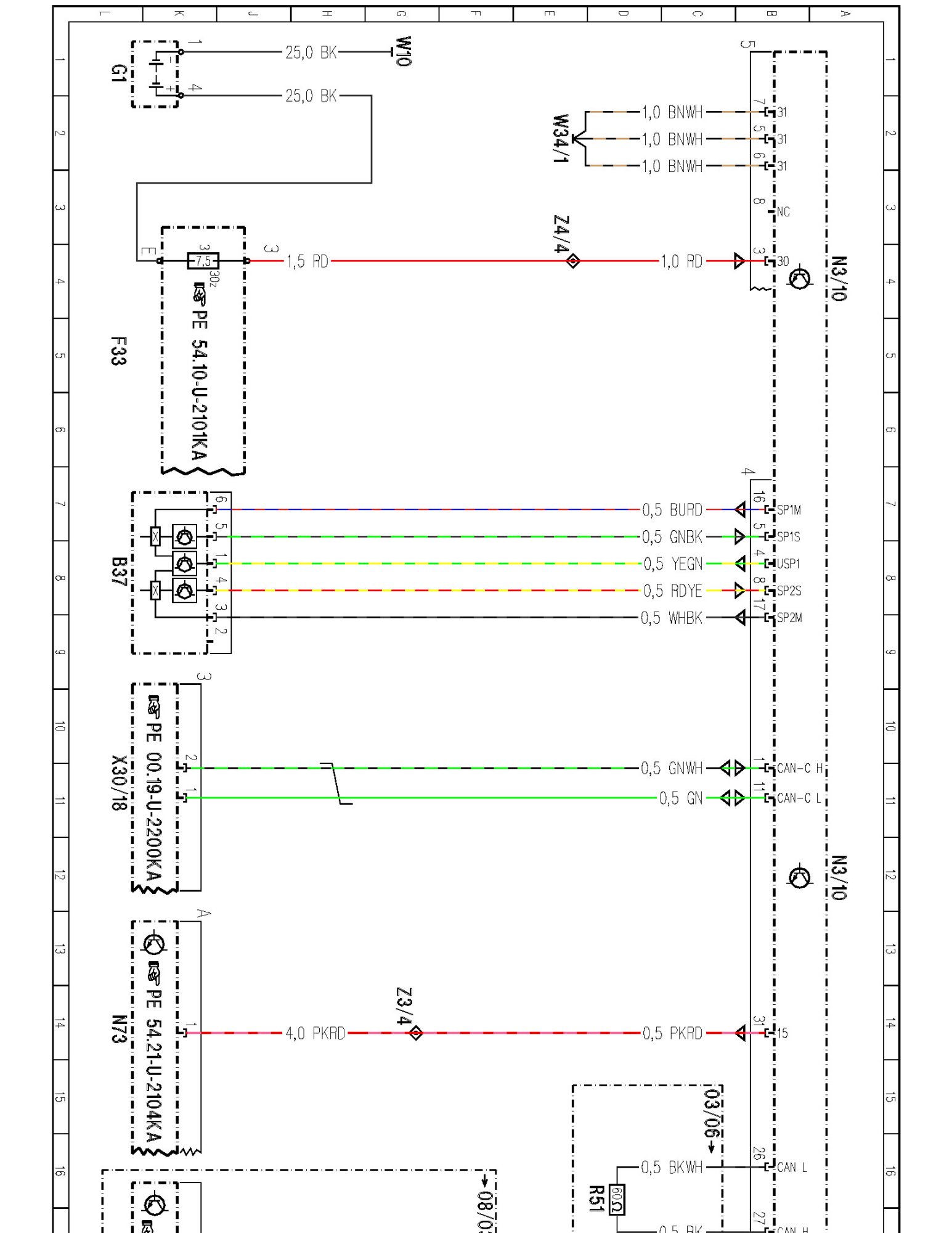

PE07.61-U-2101KC ME-SFI Fuel Injection and Ignition System, Control Module



PE07.61-U-2101KC ME-SFI Fuel Injection and Ignition System, Control Module
- 275.951 up to 02/28/06
- 275.954 from 03/01/06
- 275.981
- ME 2.7.1
- Sheet 1



































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
