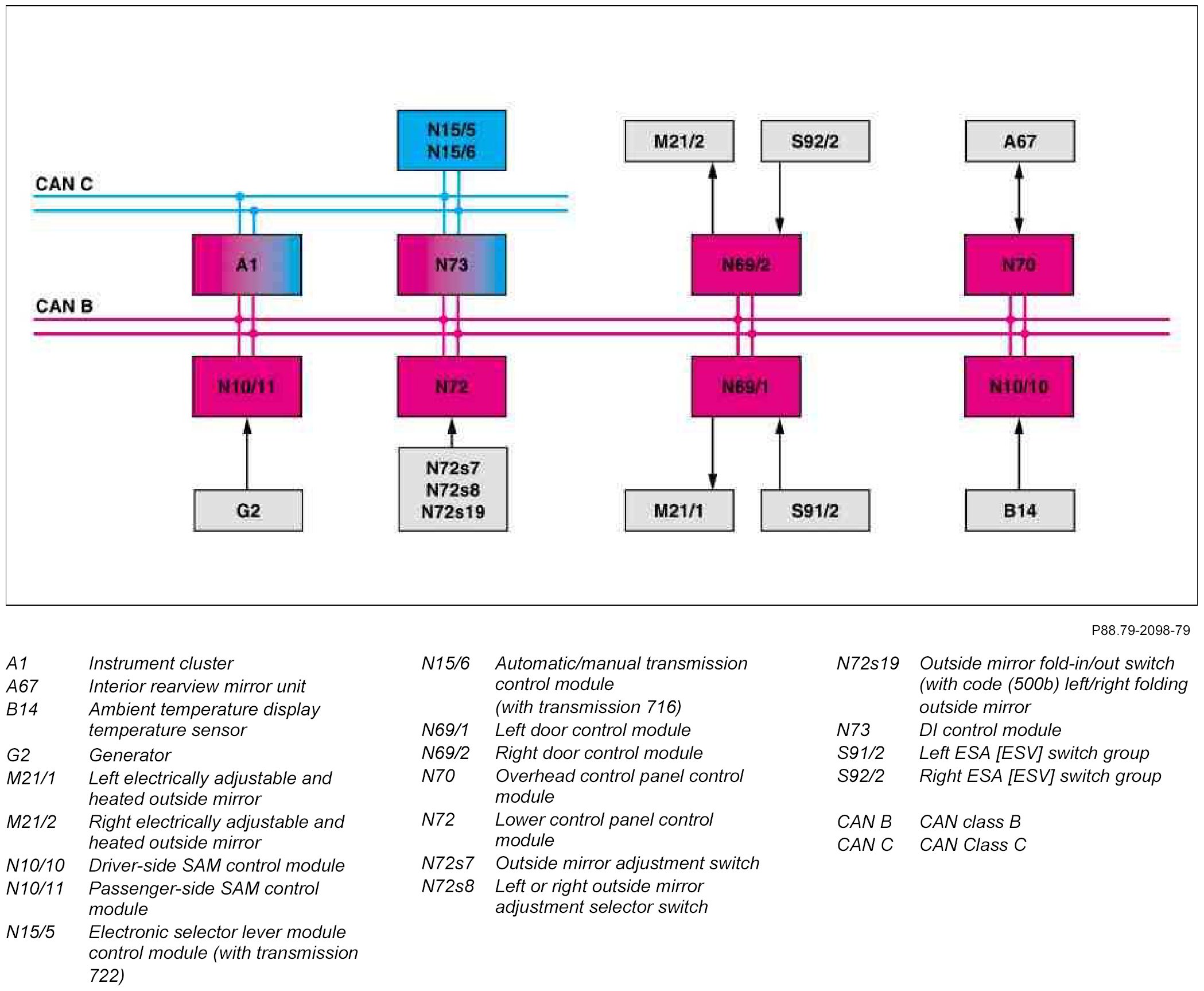

GF88.79-P-0005-02R Electrically Adjustable Outside Mirror, Block Diagram



GF88.79-P-0005-02R Electrically Adjustable Outside Mirror, Block Diagram
- up to model year 08


Component Identification:
