GF27.19-P-5138-02R Control Unit For Electronic Selector Lever Module, Task

GF27.19-P-5138-02R Control unit for electronic selector lever module, task
- TRANSMISSION 722.6
- except CODE (428) Steering wheel shift buttons
- up to model year 08

Component Identification:

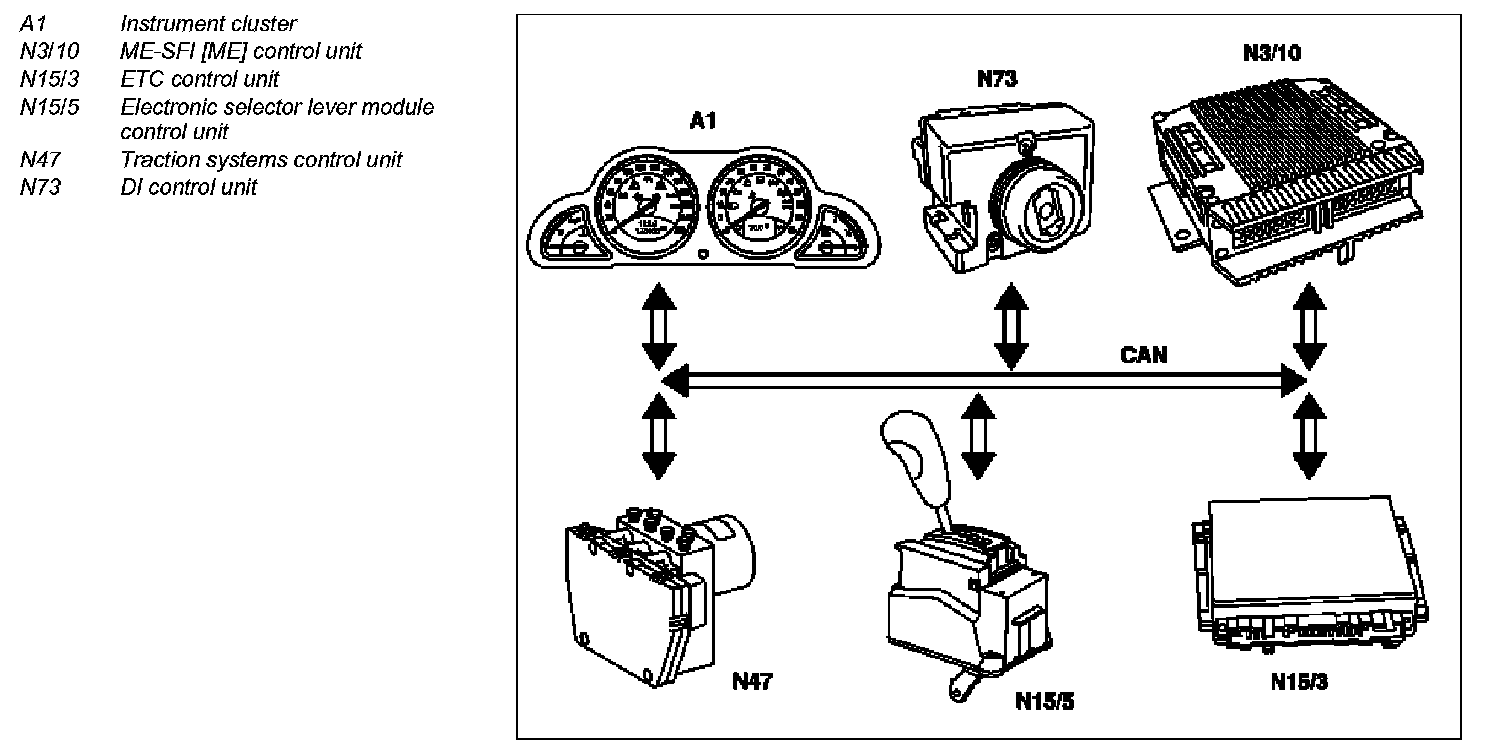

The electronic selector lever module control unit (N15/5) receives digital and analog input signals, actuates various components or transmits information to various control units via the Controller Area Network bus class C (engine compartment) (CAN-C). The selector lever positions and touch shifts carried out are detected in a non-contact manner by means of optoelectronic switches. A photoelectric barrier is closed or interrupted each time the position of the selector lever is changed.

Analog input signals:
^ Selector lever position
^ Transmission mode switch (S16/5)
^ Touch button ±
^ Steering wheel gear shifter MINUS (S110/1) (models 230.474/479)
^ Steering wheel gear shifter PLUS (S111/1) (models 230.474/479)
^ Voltage supply (circuit 87)

Analog output signals:
^ R/P locking solenoid
^ Gate lighting (circuit 58d)

The following information is received via CAN-C.
Instrument cluster (A1):
^ Circuit 58 dimmed

Traction systems control unit N47
^ Right rear wheel speed
^ Left rear wheel speed
^ Set braking torque

Electronic ignition switch control unit (N73):
^ Stop lamp switch (S9/1)
^ Stop lamp feedback
^ Circuit 50 engine start switch (circuit 50)
^ Circuit 15 voltage supply switched UB (battery voltage) (circuit 15)
^ Message from drive authorization system (DAS)

The following information is transmitted via CAN-C.
Instrument cluster (A1):
^ Selector lever position for gear display (A1p12)

ETC [EGS] control unit (N15/3):
^ Selector lever position
^ Transmission mode switch (S16/5)
^ Steering wheel gear shifter MINUS (S110/1) (models 230.474/479)
^ Steering wheel gear shifter PLUS (S111/1) (models 230.474/479)
^ Touch button
^ R/P-restraining magnet energized

Electronic ignition switch control unit (N73):
^ Drive authorization system [DAS] 3 information
^ Selector lever position for actuation of backup lamp

Motor electronics control unit (N3/10):
^ Selector lever position P/N
