Home >> Mercedes Benz >> 2006 >> SL 55 AMG (230.474) V8-5.5L SC (113.992) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Description and Operation >> GF54.10-P-0002-01RIT on-Board Electrical System Control, Location of Components

GF54.10-P-0002-01RIT on-Board Electrical System Control, Location of Components



GF54.10-P-0002-01RIT On-board Electrical System Control, Location Of Components
- with CODE (P99) Special model "AMG Black Series"

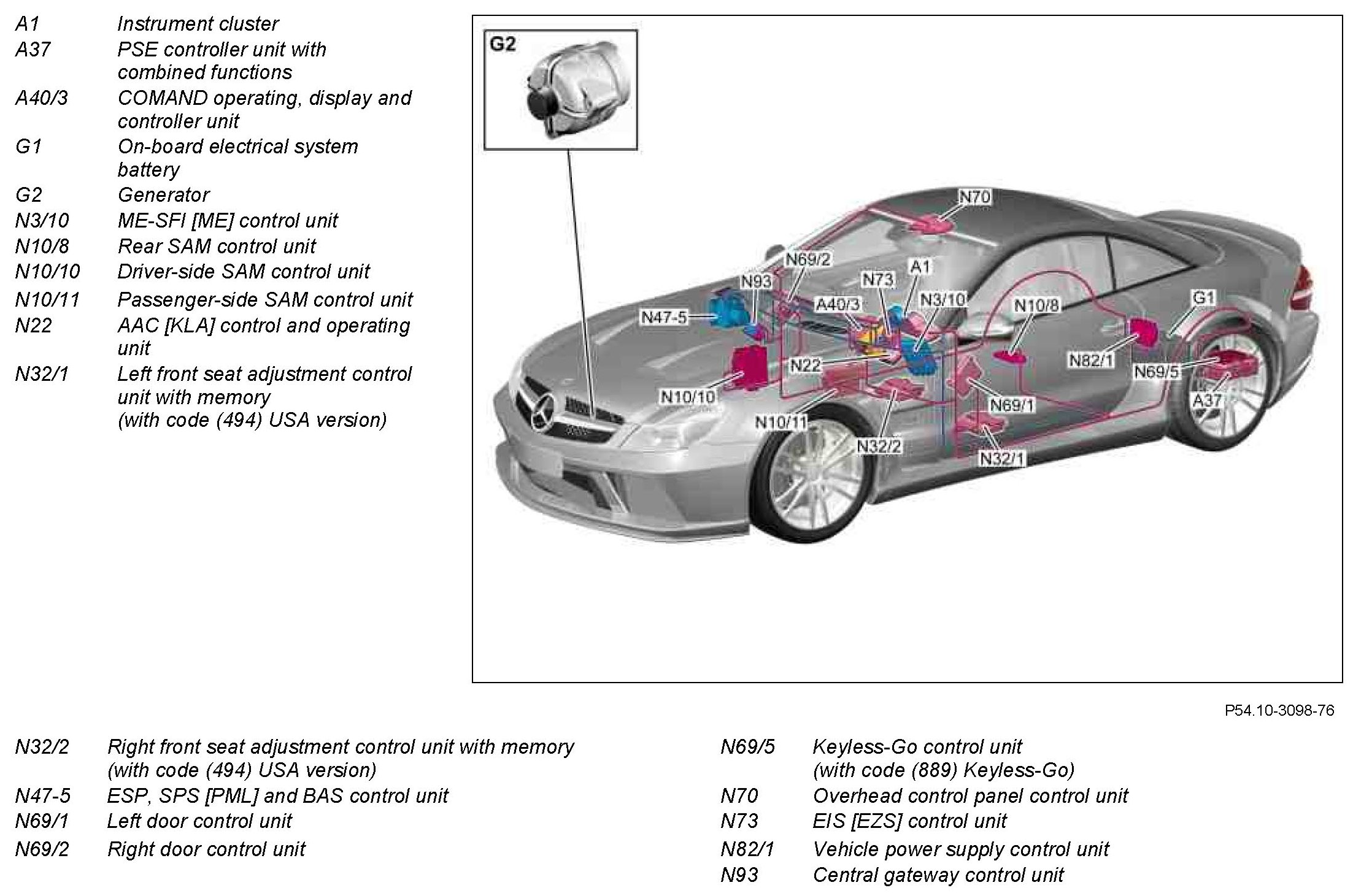

Component Identification:
